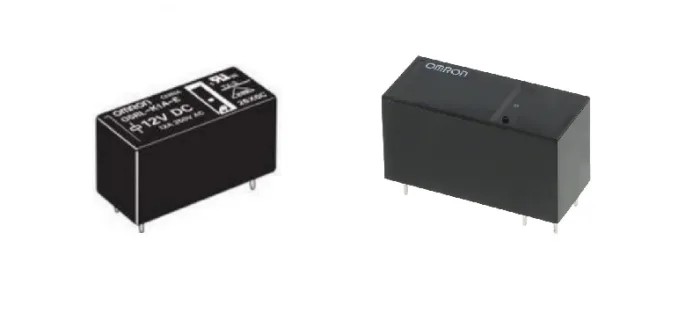

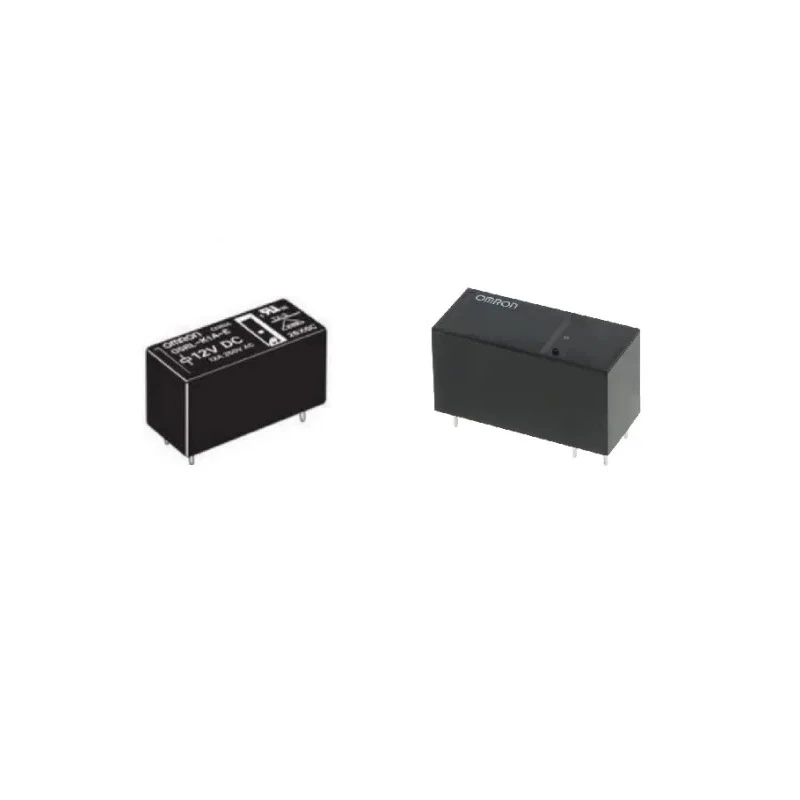

Omron Power Relay PCB Mount SPST 12V DC Coil 16A Switching Current G5RL-K1A-E DC12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15mm |
| Length | 50mm |
| Model | G5RL-K1A-E DC12 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5RL-U/-K |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CQC Certified (File No. CQC21002283993), CSA Certified (File No. LR31928), UL Recognised (File No. E41643), VDE Certified (EN61810-1) (License No. 40007172) |
| Coil Resistance | 192Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 140mW |
Key Features
- Operates reliably between -40°C and 85°C ambient temperature.
- Features silver alloy contacts with low contact resistance of 100mΩ.
- Compact size with dimensions 50mm length, 15mm height, and 10mm width.
- Coil resistance is 192 ohms with coil power consumption of 140mW.
- Capable of switching DC voltages up to 24V and AC voltages up to 277V.
- CQC, CSA, UL, and VDE certified for quality and safety compliance.
- Low profile design suitable for efficient PCB mounting with PCB pin terminals.
- Silver alloy contacts ensure durability and reliable electrical performance.
Product Description
The Omron G5RL-K1A-E DC12 power relay is engineered for PCB mounting applications requiring robust and reliable switching performance. It features a single pole single throw (SPST) contact configuration with a coil voltage of 12V DC and a switching current rating of 16A, making it suitable for a wide range of control and automation circuits.
This relay supports DC switching voltages up to 24V and AC switching voltages up to 277V, offering versatility for various electrical loads. Its compact dimensions of 50mm length, 15mm height, and 10mm width result in a low profile design that integrates easily onto printed circuit boards with PCB pin terminals.
The coil resistance of 192 ohms and low coil power consumption of 140mW ensure efficient operation with minimal heat generation. The relay operates reliably across a broad ambient temperature range from -40°C to 85°C, making it apt for industrial environments.
Contact materials consist of silver alloy, providing a contact resistance of just 100mΩ, enhancing conductivity and longevity. This relay complies with key international safety and quality certifications including CQC, CSA, UL, and VDE, assuring high standards for industrial and electrical applications.
Overall, the Omron G5RL-K1A-E DC12 is an ideal solution for PCB-based relay requirements in automation, manufacturing, electrical control, and instrumentation sectors. It helps improve production efficiency and reliability in a compact form factor.
Operates reliably between -40°C and 85°C ambient temperature. Features silver alloy contacts with low contact resistance of 100mΩ. Compact size with dimensions 50mm length, 15mm height, and 10mm width. Coil resistance is 192 ohms with coil power consumption of 140mW.
Capable of switching DC voltages up to 24V and AC voltages up to 277V. CQC, CSA, UL, and VDE certified for quality and safety compliance. Low profile design suitable for efficient PCB mounting with PCB pin terminals. Silver alloy contacts ensure durability and reliable electrical performance.
Ideal for industrial, automation, electrical, and control relay applications. Explore more industrial relays and electrical components on EnvMart to meet diverse application needs.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 16A, making it suitable for various control and automation circuits.
This model has compact dimensions of 50mm in length, 15mm in height, and 10mm in width, allowing for efficient PCB mounting.
The coil voltage is 12V DC, and it has a coil power consumption of 140mW, ensuring efficient operation.
The relay operates reliably between -40°C and 85°C, making it suitable for industrial environments.
It is capable of switching DC voltages up to 24V and AC voltages up to 277V, providing versatility for various electrical loads.
The relay features a single pole single throw (SPST) contact configuration, ideal for simple switching applications.
The contacts are made of silver alloy, which provides a low contact resistance of 100mΩ, enhancing conductivity.
It is certified by CQC, CSA, UL, and VDE, ensuring compliance with international safety and quality standards.
The coil resistance is 192 ohms, which contributes to its efficient operation with minimal heat generation.
This model is designed for PCB mounting and features PCB pin terminals for easy integration onto printed circuit boards.
The relay is part of the G5RL-U/-K series, which includes various models suitable for similar applications.
The contact resistance is 100mΩ, which ensures reliable electrical performance over time.
