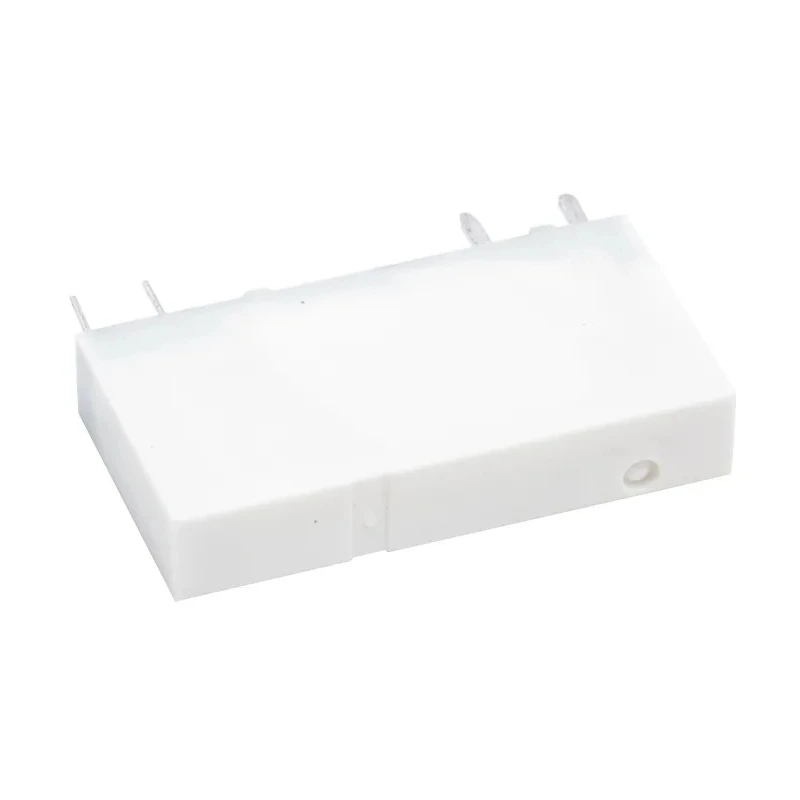

RS PRO PCB Power Relay 5V DC Coil 6A Switching Current SPST 800-4546

RS PRO 800-4546 PCB Power Relay is a high-quality power relay designed with a 5V DC coil and 6A switching current capability, ideal for electronics and electrical automation applications. The relay features a Single Pole Single Throw (SPST) contact configuration, suitable for a variety of switching tasks on printed circuit boards.

Its slim profile, with a width of just 5mm, complements mounting on PCBs where space savings are critical. The solder terminal type and robust construction with silver alloy contacts ensure reliable electrical connections and long service life. Operating reliably in a temperature range from -40°C to 85°C, this relay is well-suited for varied environmental conditions.

The coil power rating of only 170mW signifies energy-efficient design, making it suitable for power-sensitive applications. It withstands high surge voltages up to 6kV and offers a dielectric strength between coil and contacts of 4kV, protecting circuits from transient electrical disruptions.

This relay complies with UR and CQC standards, ensuring adherence to international safety and quality requirements. Its compact length (28mm) and height (15mm) make it practical for use in dense electronic assemblies in industrial automation, manufacturing equipment, and HVAC control systems.

Primarily manufactured in China, the RS PRO power relay enhances performance in electronics manufacturing and repair environments. Its reliable electrical switching capabilities support automation, signal conditioning, and control circuit design effectively.

Designed for PCB mounting with solder terminals for secure connection. Single Pole Single Throw (SPST) contact configuration optimizes switching applications. Operates within a temperature range of -40°C to 85°C ensuring durability.

Silver alloy contact material enhances conductivity and longevity. Coil power consumption is low at 170mW for energy-efficient operation. Features high surge voltage withstand of up to 6kV and 4kV dielectric strength. Compliance with UR and CQC standards assures quality and safety.

Compact dimensions: 28mm length, 15mm height, and 5mm width suit space-limited environments. Explore a wide range of Power Relays and electrical components at EnvMart for your industry needs.
