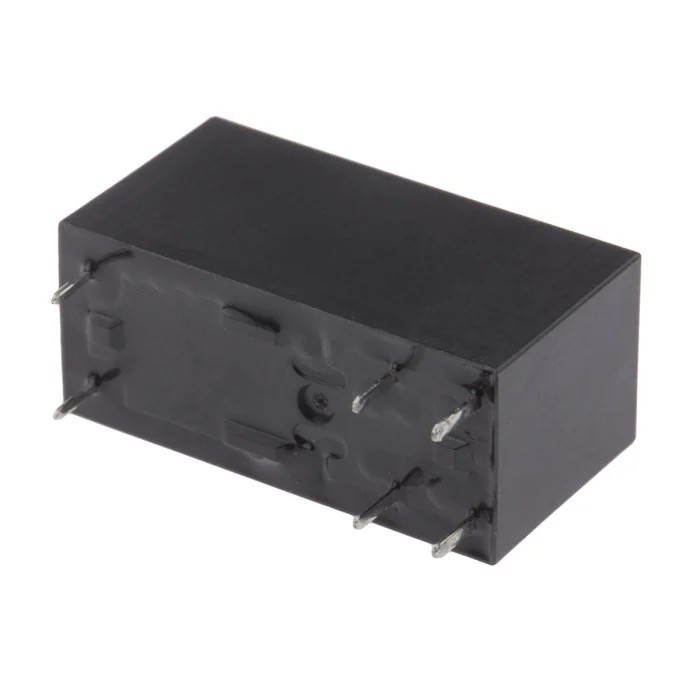

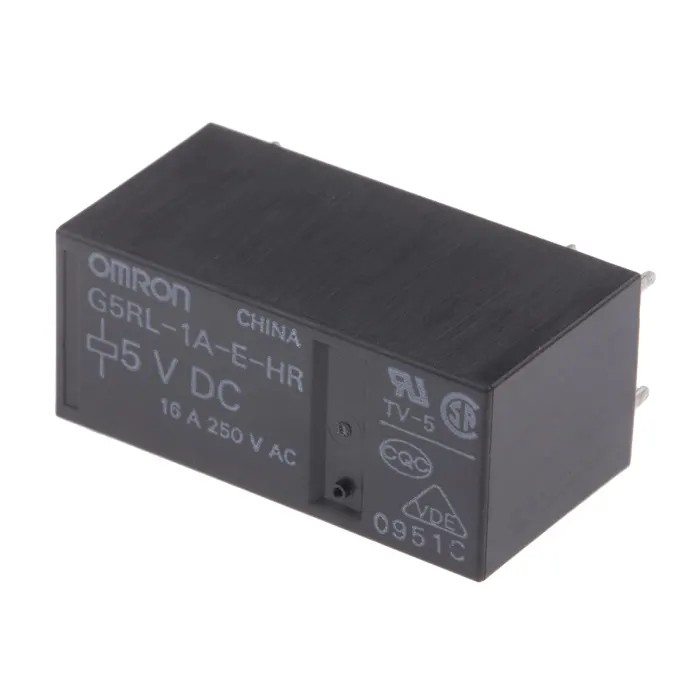

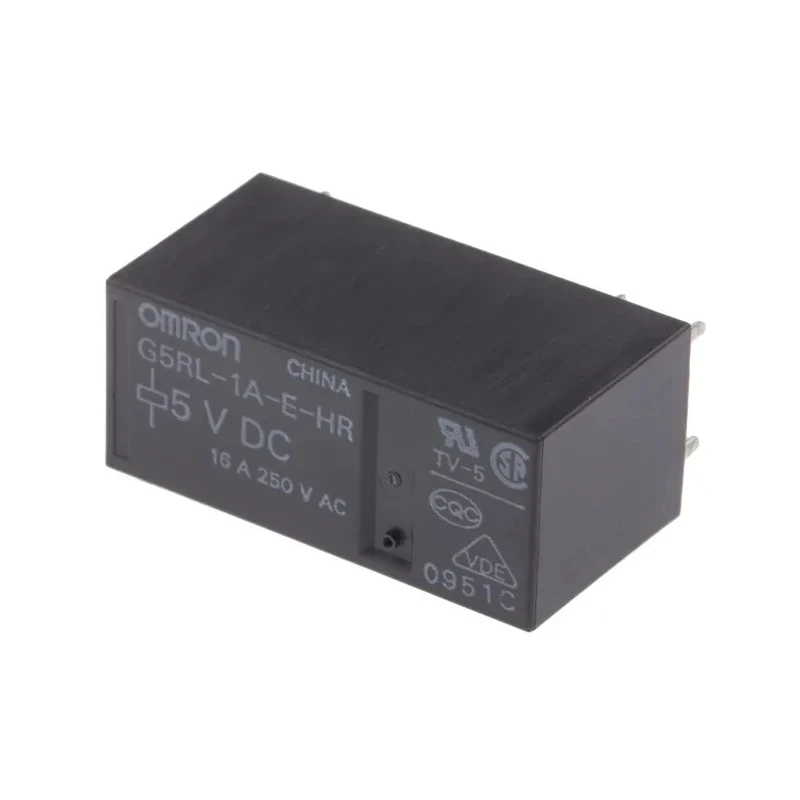

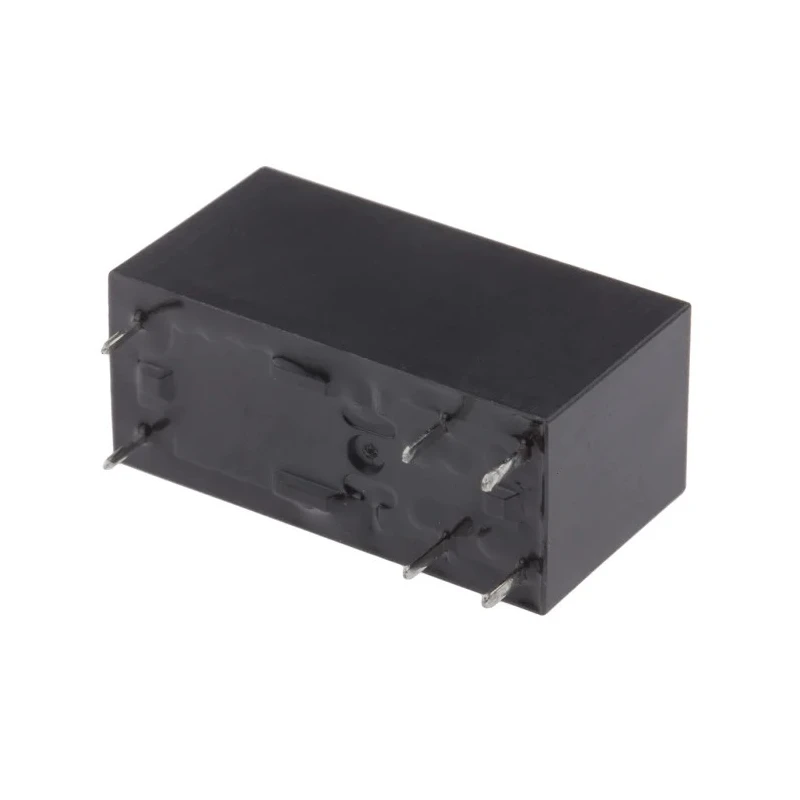

Omron PCB Power Relay 5V DC Coil 16A Switching Current SPST G5RL-1A-E-HR DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G5RL-1A-E-HR DC5 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Low Profile | 15.7mm max height |
| Standards/Approvals | VDE, UL, RoHS, EN, CSA |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 0.75W |
Key Features
- This relay is designed for PCB mounting with solder terminals for secure connections.
- It operates in temperatures ranging from -40°C to 85°C, ensuring reliability in varied environments.

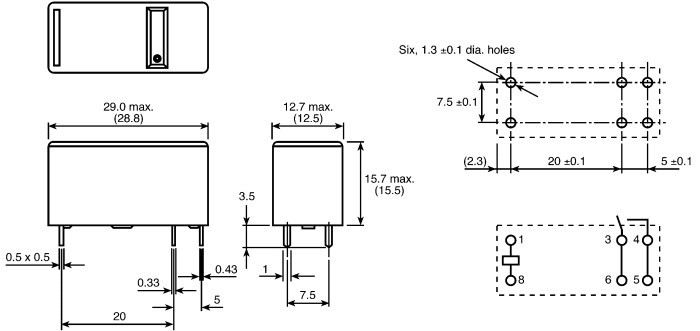

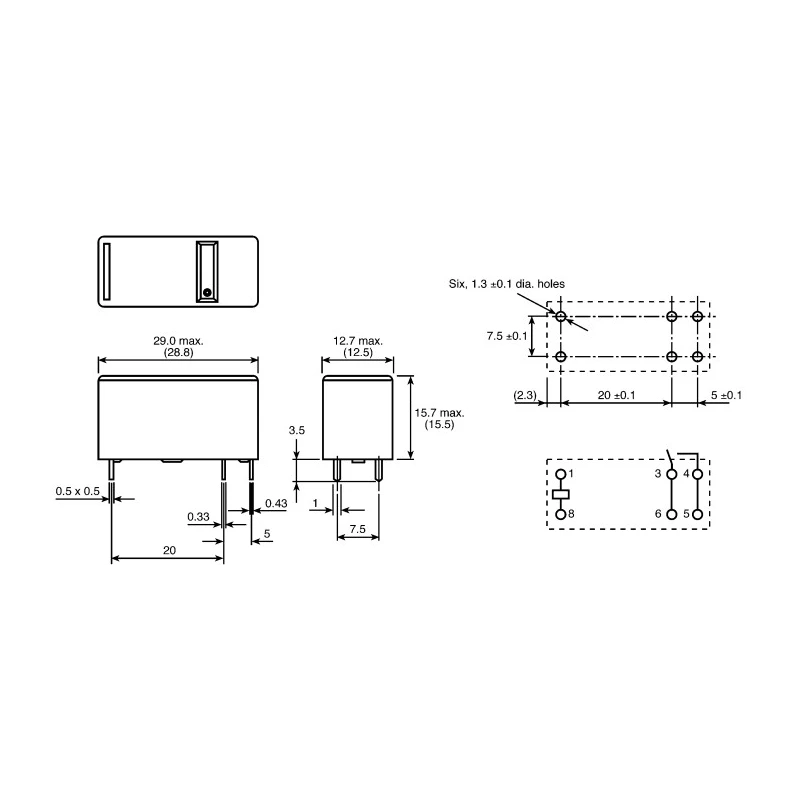

- The relay has a compact design with dimensions of 29mm length, 12.7mm width, and 15.7mm height.
- Contact material is silver alloy, providing high conductivity and durability.
- It supports DC switching voltage up to 24V and AC switching voltage up to 250V with a switching power of 4kVA.
- The coil power consumption is 0.75W, ensuring efficient operation with low power usage.
- This product is RoHS compliant and meets standards including VDE, UL, EN, and CSA for quality and safety.
Product Description
Omron G5RL-1A-E-HR DC5 PCB Power Relay is engineered for efficient and reliable switching applications in electrical and automation systems. Featuring a 5V DC coil and SPST contact configuration, this relay supports a switching current of 16A, making it suitable for controlling high loads.
The relay is designed for PCB mounting with solder terminals, facilitating easy integration into electronic circuits. It operates efficiently over a wide temperature range of -40°C to 85°C, suitable for industrial and commercial environments. The compact dimensions of 29mm length, 12.7mm width, and 15.7mm height contribute to its low-profile design, allowing versatile installation.
Constructed with silver alloy contacts, the relay ensures excellent conductivity and durability. It supports switching voltages of up to 24V DC and 250V AC with a maximum switching power of 4kVA. The coil power consumption is rated at 0.75W, enabling energy-efficient operation without compromising performance.
This product complies with key international standards such as VDE, UL, EN, CSA, and RoHS, signifying its quality and safety credentials for industrial use. The relay is also characterized by low noise operation and high inrush current capabilities, suitable for demanding electrical applications.
This relay is suitable for use in industrial automation, electrical control panels, and PCB-based switching circuits. Its robust electrical ratings make it ideal for HVAC systems, manufacturing equipment, and signal conditioning.
Silver alloy contacts provide long service life and reliable switching under high-current conditions. Mount type and dimensions enable easy mounting in compact electronic assemblies. Compliant with multiple international certifications ensuring compatibility in global applications.
Omron's G5RL series relays stand out for silent operation and are built to withstand high inrush currents, supporting up to 100A peak currents. They are flux proof with 8mm creepage clearance between coil and contacts. This makes them suitable for a wide range of industrial, laboratory, and commercial uses.
Explore a wide range of Power Relays and related components at EnvMart for your industrial automation and circuit design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 16A.
The coil voltage of this model is 5V DC.
The dimensions of the relay are 29mm in length, 12.7mm in width, and 15.7mm in height.
It operates efficiently within a temperature range of -40°C to 85°C.
This relay features a Single Pole Single Throw (SPST) contact configuration.
The relay supports a switching voltage of up to 24V DC and 250V AC.
The contacts are made of silver alloy, which provides high conductivity.
The coil power consumption is rated at 0.75W.
This relay complies with several standards including VDE, UL, EN, CSA, and RoHS.
This relay is designed for PCB mounting with solder terminals for secure connections.
The maximum switching power of this relay is 4kVA.
It is suitable for industrial automation, electrical control panels, and PCB-based switching circuits.
