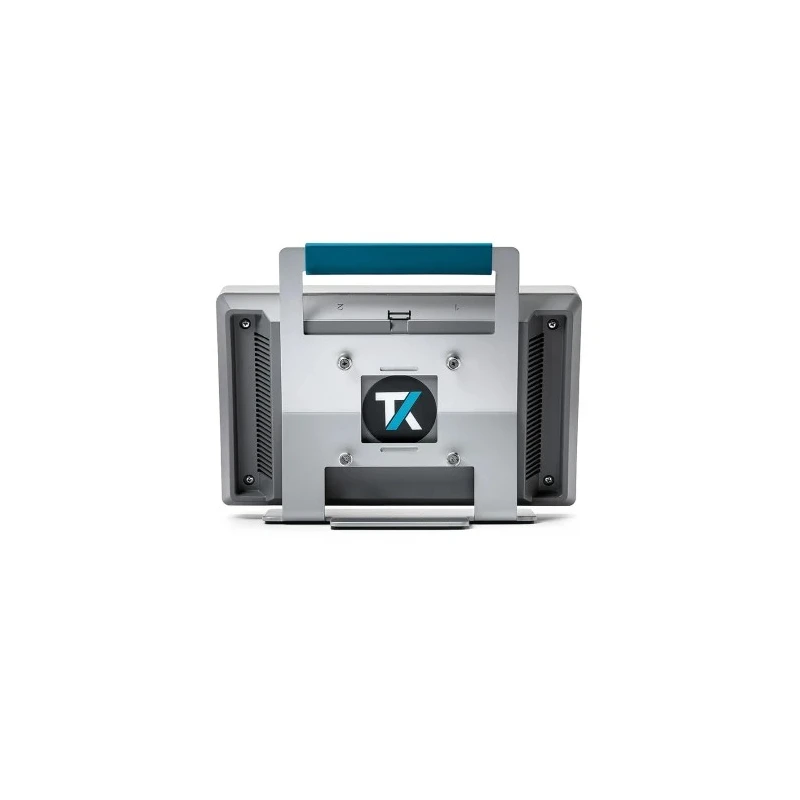

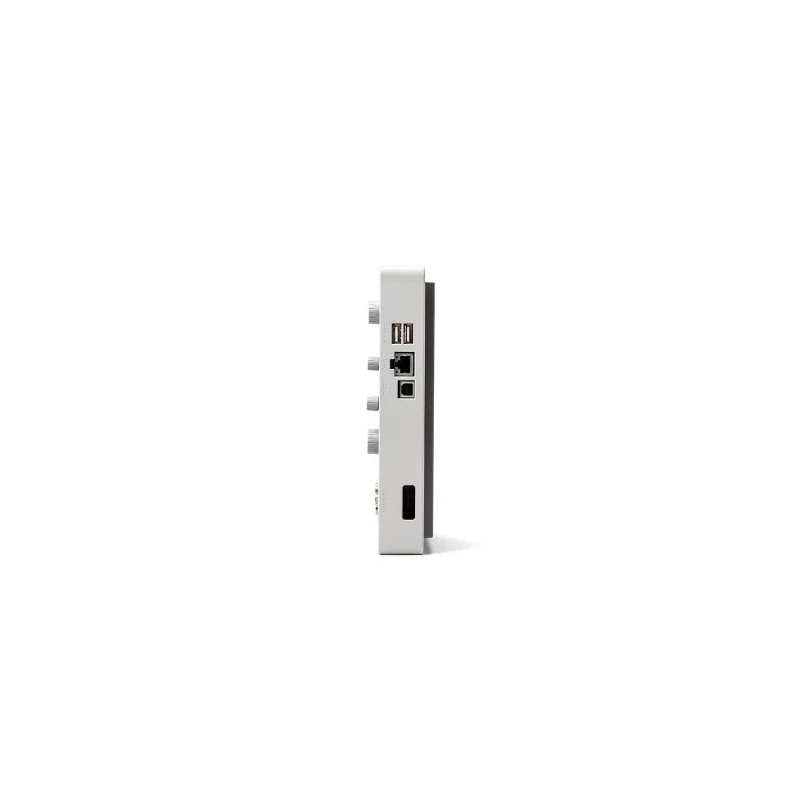

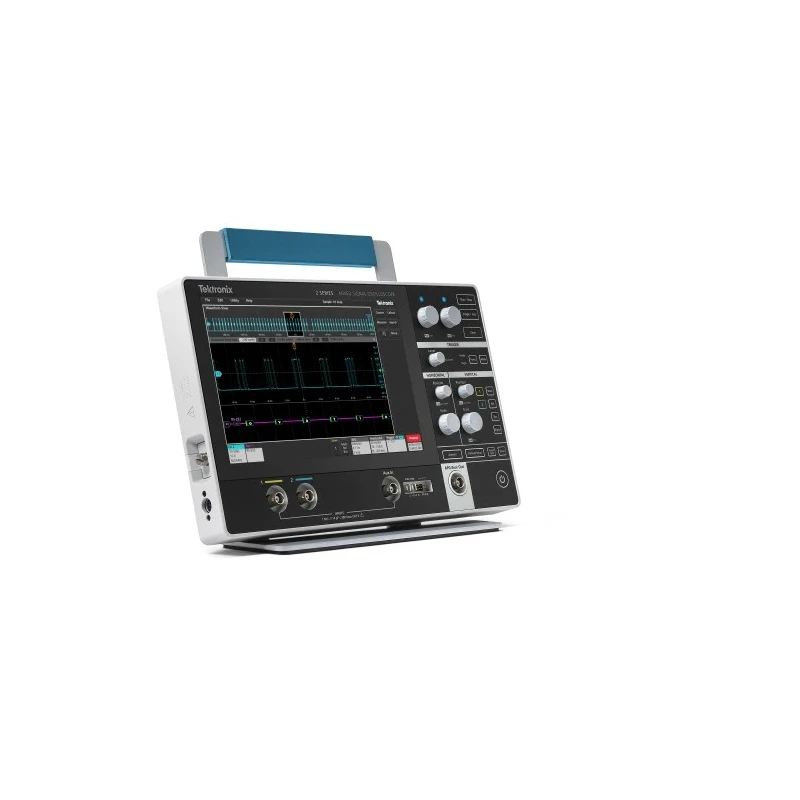

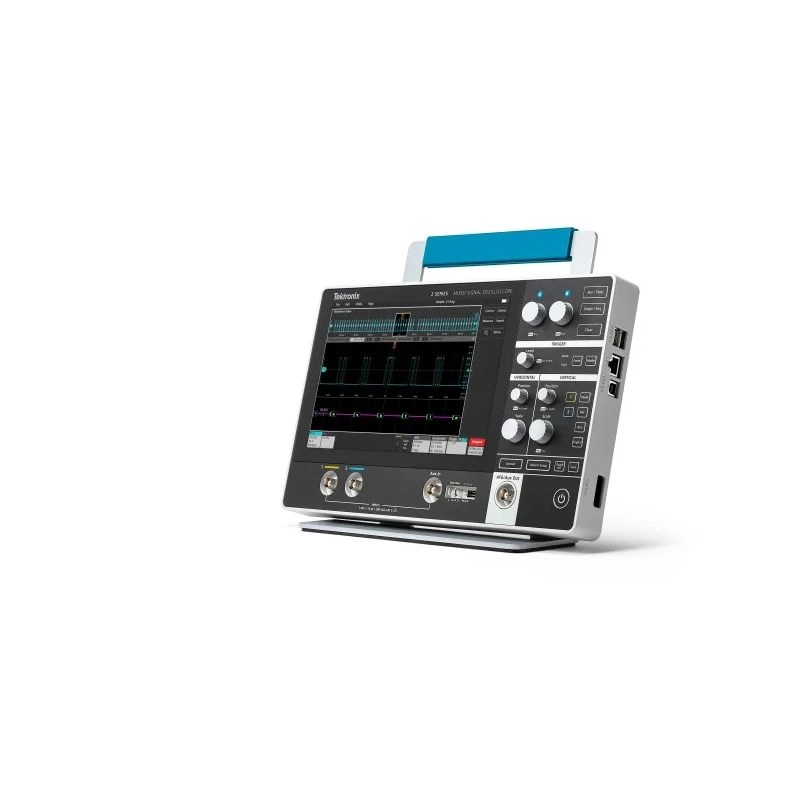

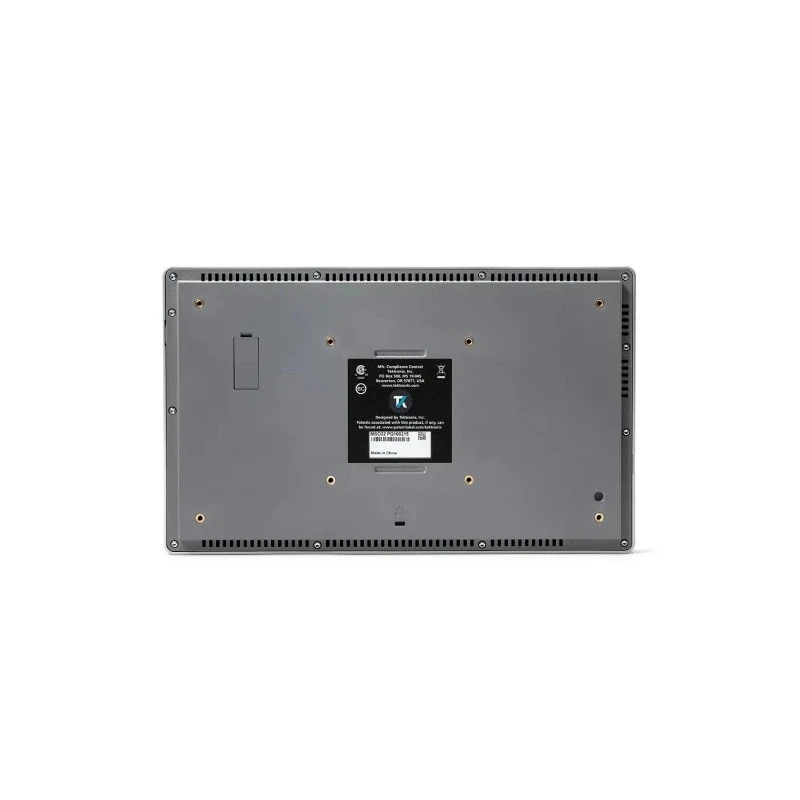

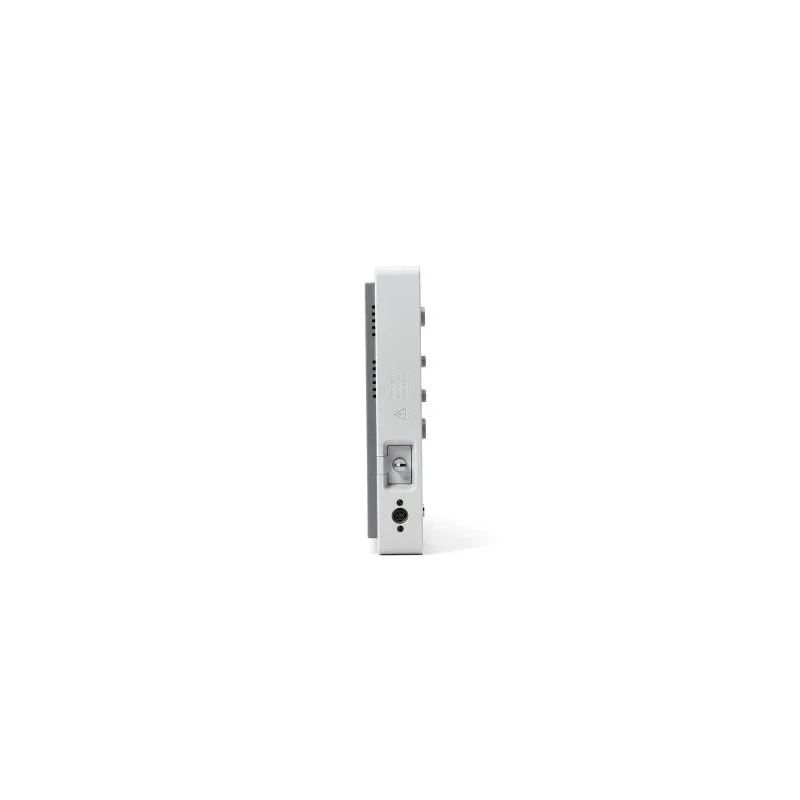

Tektronix 2 Series MSO Mixed Signal Ultra Compact Oscilloscope 500 MHz Bandwidth, 2 Channels, 10.1-inch MSO22 2-BW-500

Tektronix MSO22 2-BW-500 from the 2 Series MSO family is an ultra compact mixed signal oscilloscope designed for electronic debugging and testing with a bandwidth of 500 MHz and 2 channels. Featuring a 10.1-inch capacitive touchscreen display and a lightweight, compact form factor measuring 210mm height, 344mm width, and 40.4mm depth, it is ideal for industrial, automotive, manufacturing, and field applications.

This oscilloscope supports multiple communication interfaces such as CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB providing extensive protocol analysis capabilities. It includes calibration compliance (RSCAL) to national standards and quality systems, ensuring reliable measurements.

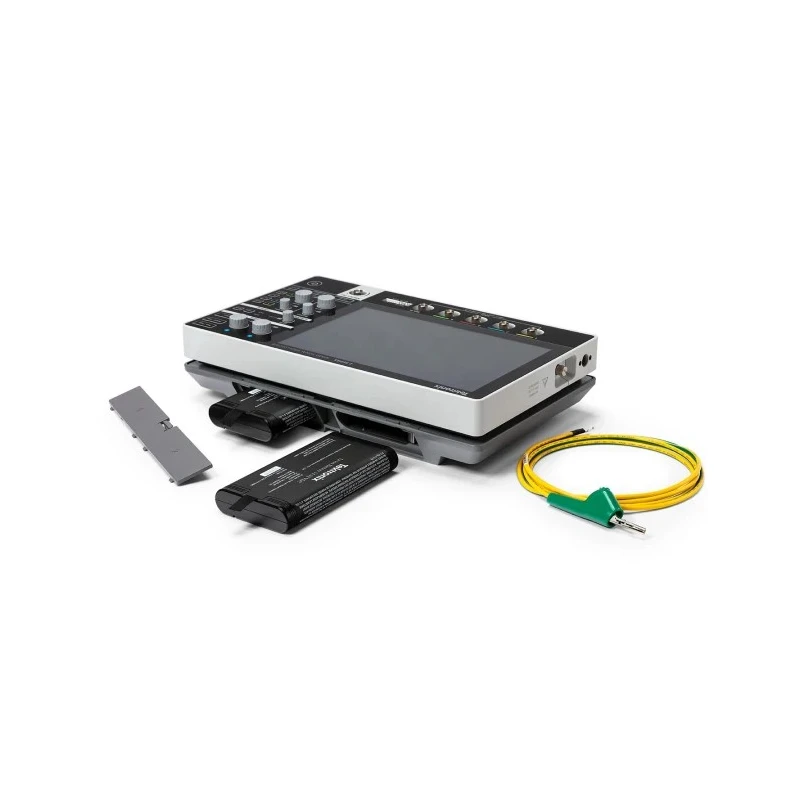

The lithium-ion battery option supports up to 8 hours of operation with hot-swappable batteries, enhancing portability and flexibility for mobile use. The device has safety category level CAT II and meets CE, RoHS, and UL certifications, ensuring operator safety and regulatory compliance.

Additional features include a built-in VNC server enabling remote viewing and control, bench space saving with VESA mount compatibility, and a user-friendly touch interface designed for efficient workflow. Optional accessories extend the oscilloscope's capabilities, including digital channels expansion, arbitrary function generator, and pattern generators.

500 MHz bandwidth and 2 analog channels for precise signal acquisition. Capacitive 10.1-inch color touchscreen enhances user interaction. Compact size and lightweight design support portable applications. Multiple protocol interfaces for diverse testing needs.

Optional battery packs allow unplugged field testing up to 8 hours. Built-in VNC server enables remote oscilloscope control and monitoring. Compliant with CE, RoHS, UL standards and safety CAT II rating. VESA mount compatible for versatile bench setups.

Includes calibration certificate demonstrating traceability and quality compliance. Wide range of optional accessories enhances flexibility and measurement capabilities.

This oscilloscope series is suitable for high-performance industrial, laboratory, construction, and HVAC electronic testing environments. Tektronix products are trusted globally for reliability and innovative measurement solutions. Browse EnvMart’s range for additional Tektronix Oscilloscopes and accessories.
