Tektronix Oscilloscope Probe Logic Type 200 MHz Grabber Lead Connector P6316
Specifications
| Country of Origin | China |
|---|---|
| Brand | Tektronix |
| Model | P6316 |
| Connector Type | Grabber, Lead |
| Bandwidth | 200MHz |
| Probe type | Logic |
| Maximum Common Mode Input Voltage | 40V |
Key Features
- This probe features two eight-channel pods for easy connection to 8x2 square pin headers.
- Supports grabbing leads and flying leads for surface mount devices or test points.
- Applies only 8 pF loading and provides 101 kΩ input impedance.
- Compatible with Tektronix MSO2000, MSO2000B, MSO3000, and MDO3000 Series oscilloscopes.
- Maximum common mode input voltage is 40V for robust measurement capability.
- Connector types include grabber and lead connectors for versatile attachment options.
- Designed for use with instruments featuring permanent earth connection.
Product Description
Tektronix P6316 is a passive logic type oscilloscope probe with a 200 MHz bandwidth, suitable for complex digital and mixed signal measurement setups.

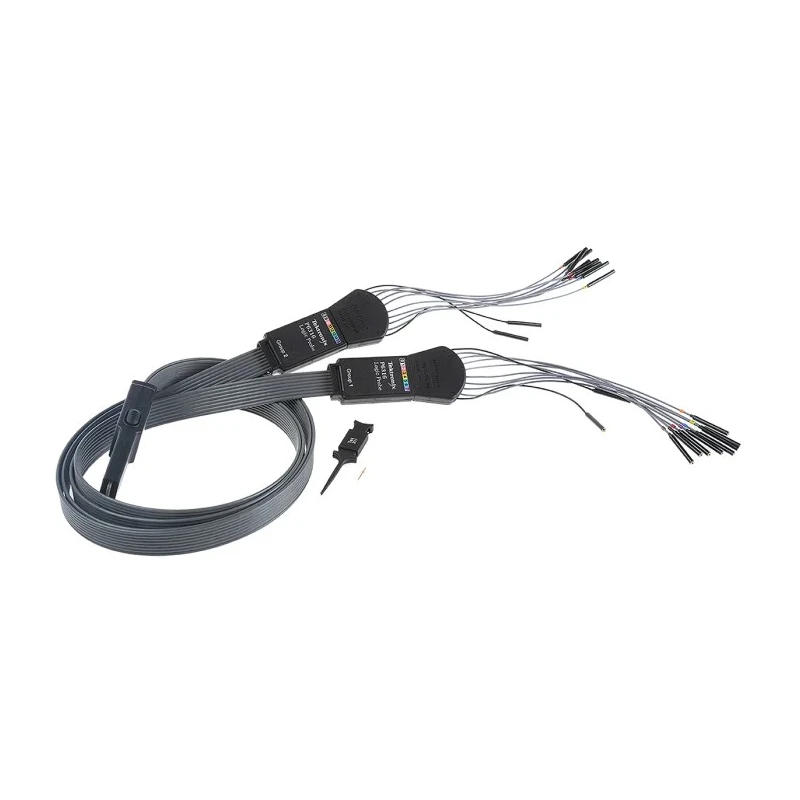

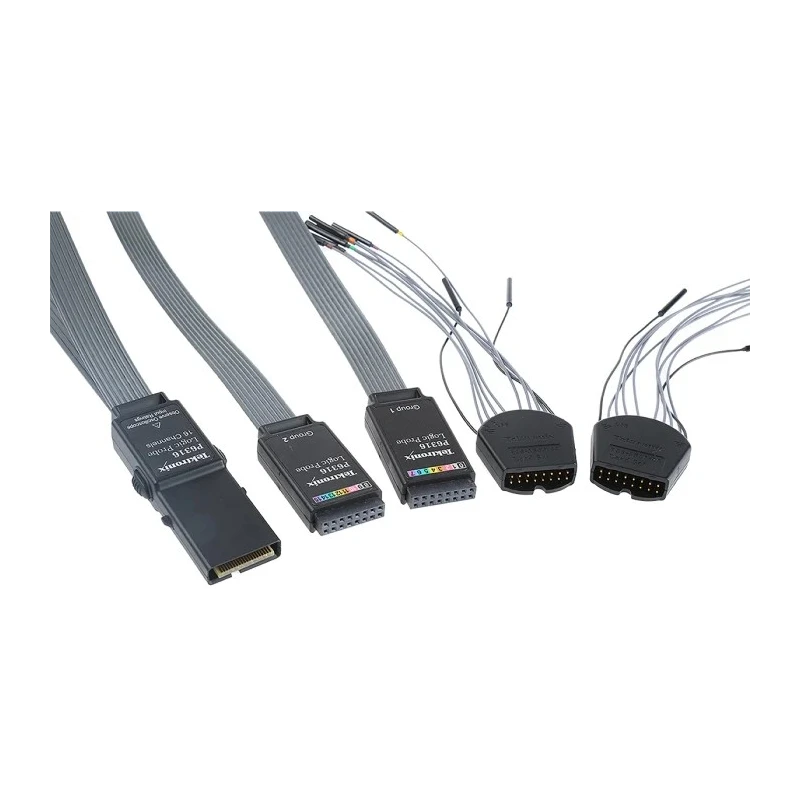

The P6316 features two eight-channel pods that connect directly to 8x2 square pin headers spaced on tenth-of-an-inch centers, simplifying the process of connecting to the device under test (DUT). For enhanced flexibility, the included flying lead sets and grabbers can be clipped onto surface mount devices or test points, making it highly adaptable for diverse test scenarios.
With exceptional electrical performance, the probe applies only 8 pF of loading to the circuit and incorporates a 101 kΩ input impedance, ensuring minimal signal interference and accurate data acquisition.
It supports oscilloscopes from the Tektronix MSO2000, MSO2000B, MSO3000, and MDO3000 series, providing compatibility for laboratory, industrial, and manufacturing applications. The probe is designed with grabber and lead connectors, providing reliable and versatile attachment methods suitable for logic testing and signal capture tasks.
This Oscilloscope Probe has a maximum common mode input voltage of 40V, enabling it to handle a variety of signal environments safely. All Tektronix P6316 products are supplied for use with instruments that have a permanent earth connection, meeting typical industry safety standards.
This probe enables precise and efficient logic level signal testing. Two eight-channel pods increase connection density and speed. Minimal loading and high impedance improve measurement accuracy. Expandable connection options via flying leads and grabbers.
Compatible with Tektronix MSO and MDO series oscilloscopes for broad application use. Designed for industrial, laboratory, manufacturing, and test & measurement environments. Durable connectors ensure consistent signal integrity during repetitive use.
Explore more Tektronix oscilloscopes and probe accessories in the EnvMart catalog to enhance your test bench capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix P6316 probe has a bandwidth of 200 MHz, making it suitable for complex digital and mixed signal measurements.
This model is compatible with Tektronix MSO2000, MSO2000B, MSO3000, and MDO3000 series oscilloscopes.
The P6316 probe features grabber and lead connectors, allowing for versatile attachment options to various devices.
The maximum common mode input voltage for the Tektronix P6316 probe is 40V, which allows for robust measurement capabilities.
This probe has an input impedance of 101 kΩ, ensuring minimal signal interference during measurements.
The P6316 applies only 8 pF of loading to the circuit, which helps maintain measurement accuracy.
It features two eight-channel pods that connect directly to 8x2 square pin headers, simplifying the connection process.
This probe is designed for laboratory, industrial, manufacturing, and test & measurement applications.
The P6316 is classified as a logic type oscilloscope probe, suitable for logic level signal testing.

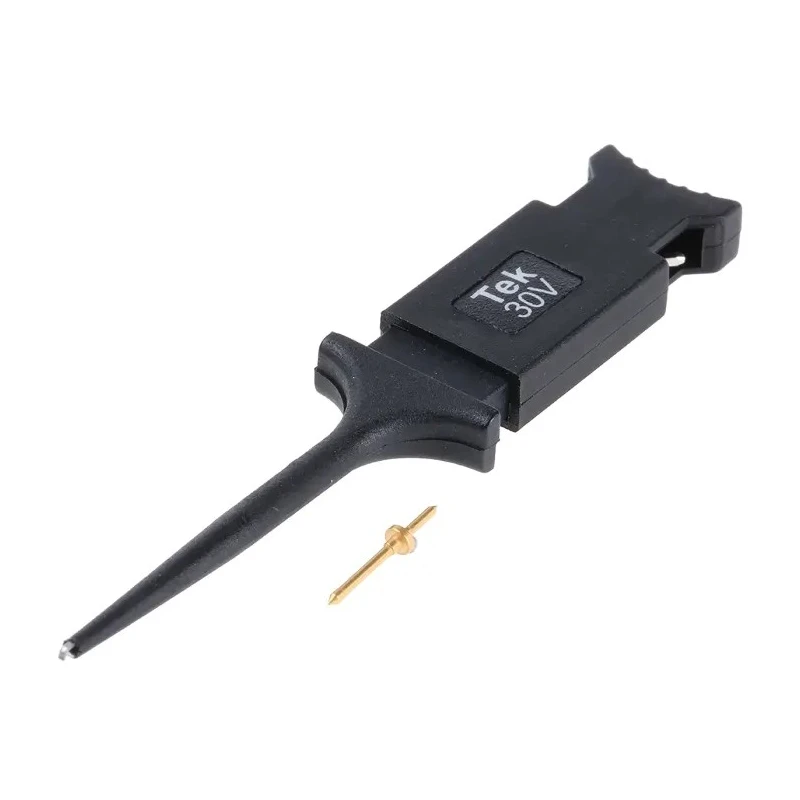

The included flying lead sets and grabbers allow for clipping onto surface mount devices or test points, enhancing its adaptability.
The Tektronix P6316 probe is manufactured in China.
This probe is designed for use with instruments that have a permanent earth connection, meeting typical industry safety standards.
