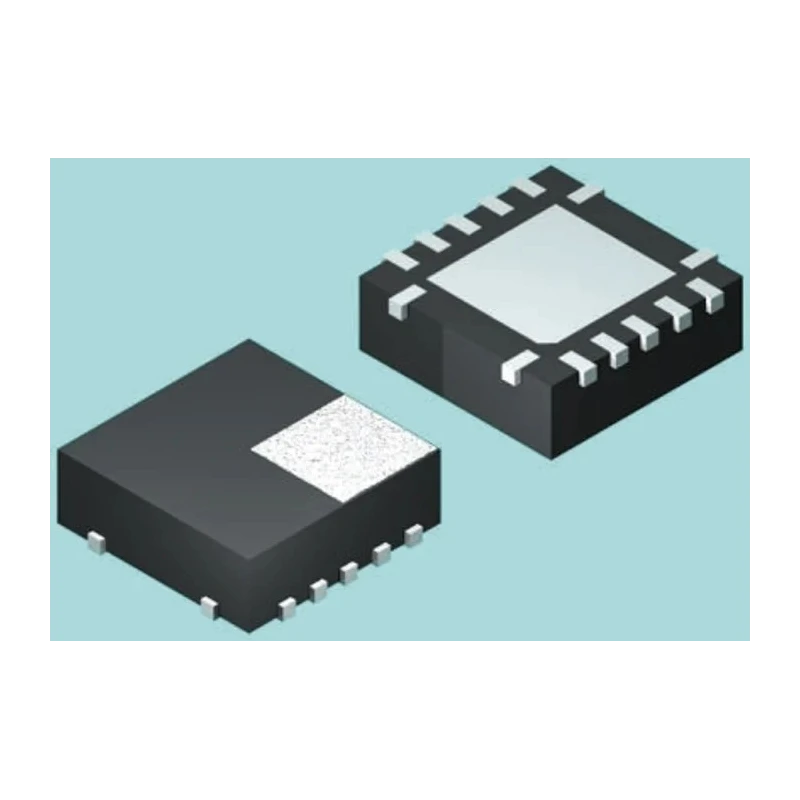

onsemi 4-Channel Non-Inverting 3 State Buffer 14-Pin DQFN 74LCX125BQX

onsemi 74LCX125BQX is a 4-Channel Non-Inverting 3 State Buffer offered in a surface mount 14-Pin DQFN package, optimized for use in electronic components and semiconductor applications. It operates on a supply voltage range of 2.0 to 3.6V, providing compatibility with low-voltage CMOS logic designs. The buffer features four distinct channels to provide effective signal isolation and buffering across multiple lines.

Designed to efficiently manage signal flow, this device provides 3-state output control, allowing it to be enabled or disabled independently, ideal for bus-oriented systems. It maintains non-inverting polarity, ensuring the input signals are passed unchanged to the outputs. The device operates with a maximum supply current of 100 mA, supporting low power consumption in battery-operated or energy-sensitive applications.

The 74LCX125BQX boasts a fast maximum propagation delay time of 7.2 ns at a capacitive load, enabling high-speed digital circuit operations. Its operating temperature range of -40°C to 85°C ensures performance stability across harsh environmental conditions, making it suitable for industrial electronics and embedded system applications.

The compact 14-pin DQFN package measures 3 mm in length and 750 μm in height, providing a space-saving solution for PCB designs. This buffer is equipped with 5V tolerant inputs and outputs, expanding its versatility in mixed-voltage environments.

Typical applications include signal buffering in logic systems, microcontroller interface buffering, and driving high-speed data buses. This device is essential in circuits requiring multiple buffered channels with independent enable control.

Features a non-inverting buffer logic function with 4 channels for versatile signal buffering. Supports 3 state output providing high-speed signal control and flow management. Operates reliably across a wide temperature range from -40°C to 85°C.

Comes in a compact 14-pin DQFN package with dimensions 3 mm in length and 750 μm in height. Designed with low supply current of 100 mA for efficient power consumption. Maximum propagation delay time at capacitive load is 7.2 ns ensuring fast switching speeds.

Input supports single-ended signals and outputs are 5V tolerant for flexibility. Suitable for industrial and electronic circuit applications requiring robust buffering solutions. Explore more electronic components, Buffers, and semiconductor ICs suited for industrial, laboratory, manufacturing, and electronic design projects at EnvMart.
