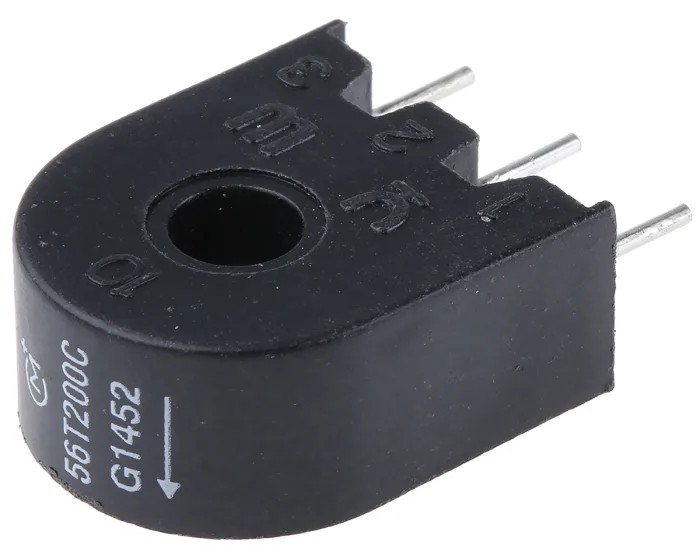

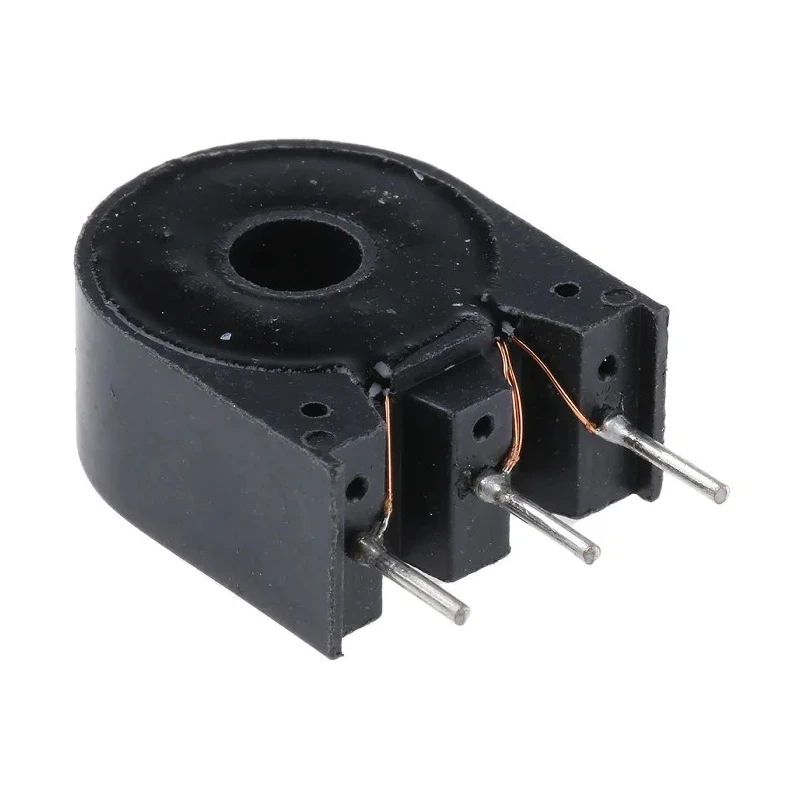

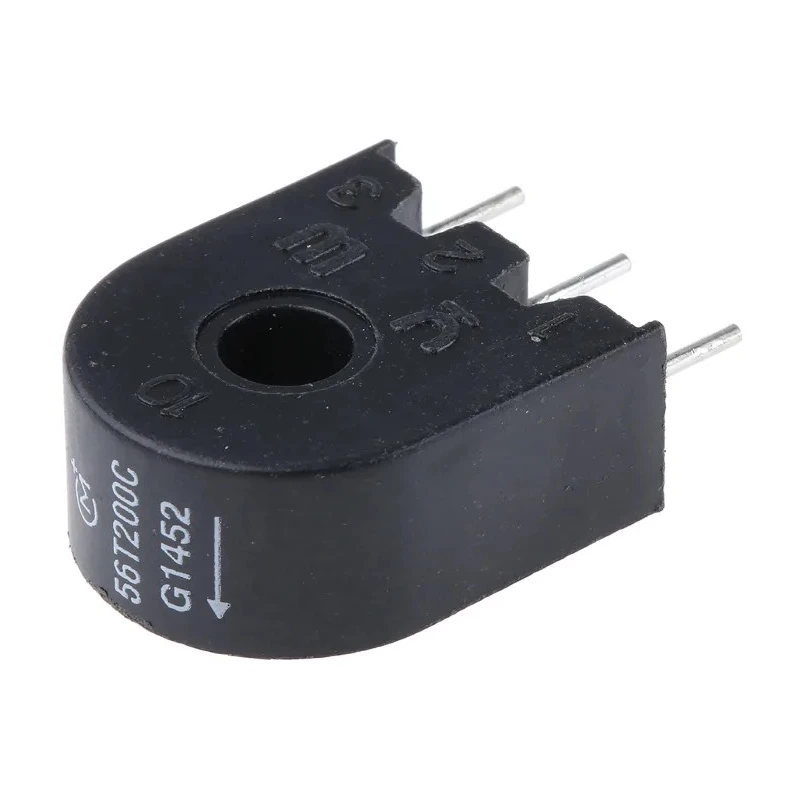

Murata Power Solutions 5600 Series Current Transformer 10 A 56T200C

Murata Power Solutions 56T200C is a 5600 Series Current Transformer rated for a primary current of 10 A designed for high frequency AC current sensing. It provides precise current measurement essential for automation, process control, and electrical equipment monitoring in industrial, manufacturing, and HVAC applications.

This transformer supports operating frequencies from 20 kHz up to 200 kHz, making it ideal for switched-mode power supplies, motor control systems, and electronic lighting ballast applications. It operates reliably within a temperature range of -40°C to 85°C, suitable for diverse environmental conditions.

The compact dimensions (Length: 16.79 mm, Depth: 20.19 mm, Width: 8.89 mm) and through-hole mounting type with cable hole primary enable easy and efficient mounting on printed circuit boards or control assemblies. The wire terminal type facilitates flexible wiring options.

Featuring primary and secondary DC resistances of 1.87 Ω and 2.81 Ω respectively, and an inductance of 72 mH, this transformer ensures accurate current sensing with minimal electrical losses, supporting high precision in measurement and control circuits.

Manufactured in China, the 56T200C model from Murata Power Solutions lacks international certifications but is designed according to common industrial specifications for reliable performance. It is supplied individually in a tube packaging ready for integration into automated machinery and technical equipment.

5600 Series current transformer supports high frequency current sensing up to 200 kHz. Primary current rating of 10 A with a secondary current of 1 A for effective monitoring. Robust operation over temperature range from -40°C to 85°C for various industrial environments.

Compact dimensions with 16.79 mm length, 20.19 mm depth, and 8.89 mm width facilitate space-saving installations. Mount type is through-hole suitable for cable hole mounting applications. Secondary and primary DC resistances are 2.81 Ω and 1.87 Ω respectively, ensuring efficient signal transfer.

Inductance value of 72 mH supports high-frequency switching power supplies and motor control applications. Terminal type is wire allowing flexible wiring in control gear setups. Designed for switched-mode power supplies, motor control, and electronic lighting ballast applications.

Product manufactured in China with no specific standards or approvals listed. Explore the Murata Power Solutions range and similar Current Transformers in the Electronics & Electricals category on EnvMart.
