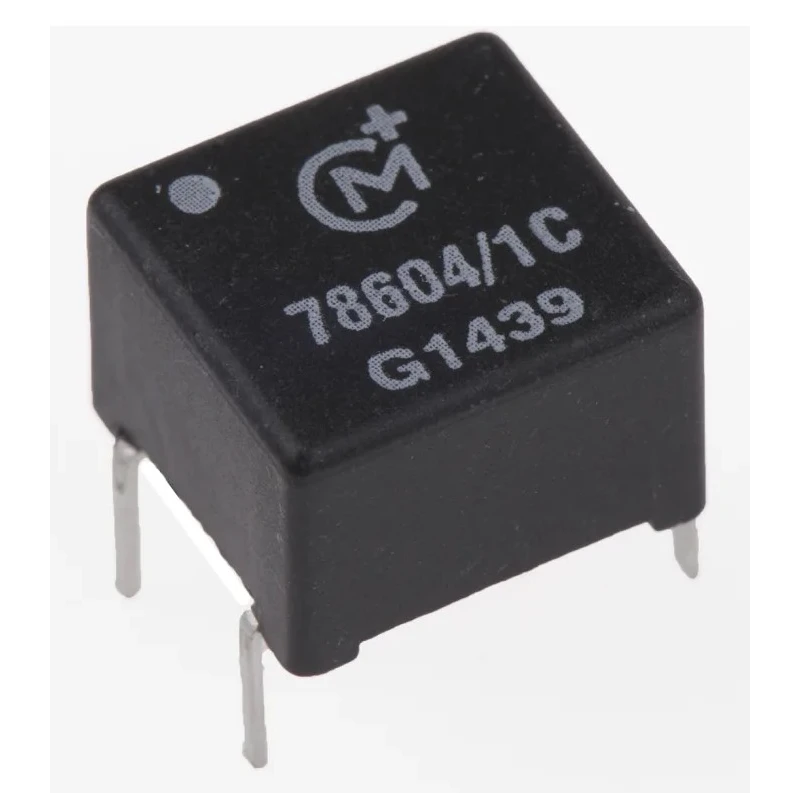

Murata Power Solutions Through Hole Pulse Transformer 2:1 Turns Ratio, 2000 μH Primary Inductance, 0.6Ω Primary 78604/1C

Murata Power Solutions 78604/1C Through Hole Pulse Transformer is engineered for general-purpose applications including coupling, thyristor and triac firing, and small-sized switch mode power supplies. Featuring a 2:1 turns ratio, this transformer delivers a primary inductance of 2000 μH with a primary DC resistance of 0.6Ω, ensuring effective signal transformation and energy transfer in electrical circuits.

Designed for through-hole mounting, the component offers robust mechanical stability and ease of integration into various printed circuit boards. Its leakage inductance of 0.99 μH supports efficient operation with minimal energy loss. The transformer is rated to operate reliably within a temperature range from 0°C to 70°C, accommodating typical industrial and commercial environments.

The compact form factor with dimensions of 9.52 mm length, 9 mm width, and 6.35 mm depth along with a lightweight design of 1.1 grams makes this pulse transformer optimal for applications where space-saving and weight reduction are critical considerations.

Compliance with RoHS ensures that the product is environmentally safe and free from hazardous substances. Equipped with 6 pins, it facilitates stable and secure electrical connectivity within circuit assemblies. The Model 78604/1C belongs to the 786 series, recognized for reliability and versatility in power supply and signal processing applications.

Designed for through-hole mounting providing reliable mechanical stability. Features a leakage inductance of 0.99 μH for efficient signal transmission. Operates within a temperature range of 0°C to 70°C ensuring performance stability.

Compact dimensions measuring 9.52 mm in length, 9 mm in width, and 6.35 mm in depth. Equipped with 6 pins for secure electrical connections. Certified to comply with RoHS standards, ensuring environmental safety. Weighs approximately 1.1 grams suitable for lightweight applications.

Series 786 design for general purpose pulse transformer applications such as coupling and thyristor/triac firing.

This pulse transformer is ideal for industrial electronics, power supply manufacturing, electrical testing labs, and other commercial applications requiring reliable signal isolation and power transfer. Explore the range of high quality Pulse Transformers and power supply components available at EnvMart for advanced electronics design and production needs.
