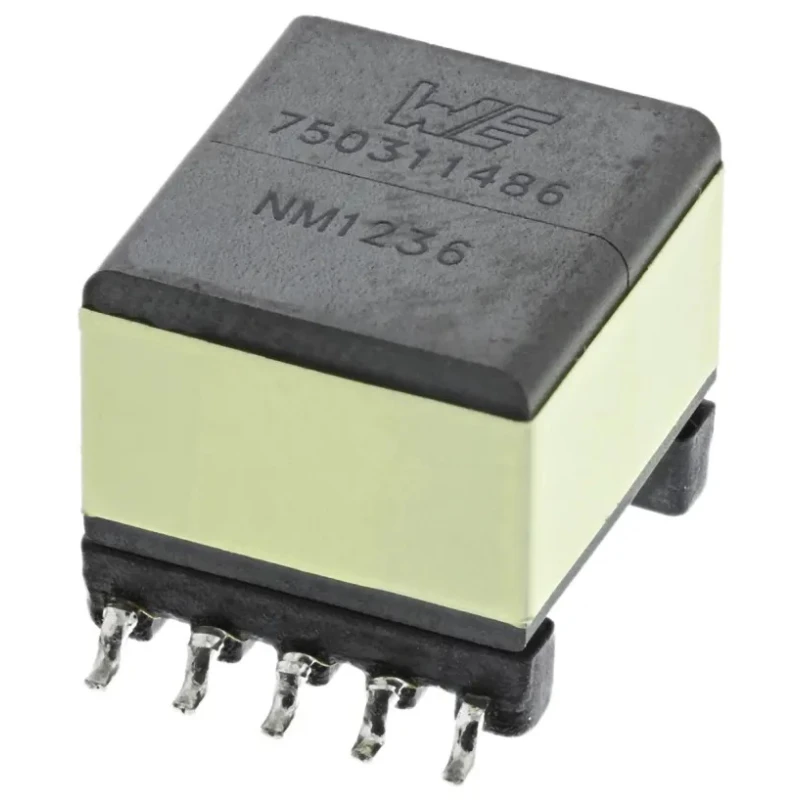

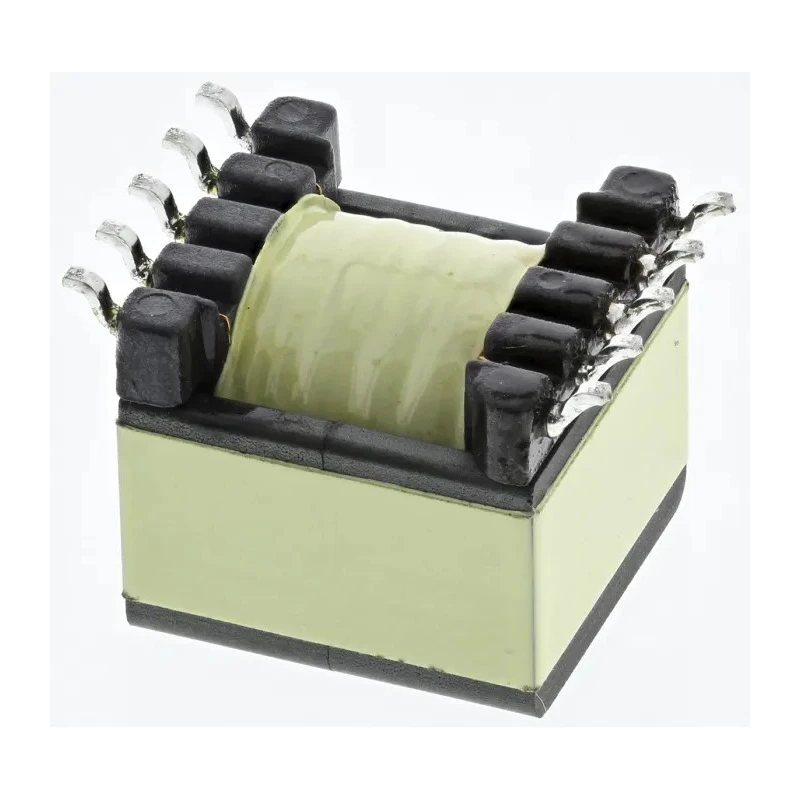

Wurth Elektronik Surface Pulse Transformer 1:10 Turns Ratio, 100 μH Primary Inductance, 0.22Ω Primary Resistance 750311486

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Surface Pulse Transformer 1:10 Turns Ratio, 100 μH Primary Inductance, 0.22Ω Primary Resistance 750311486

Name: Wurth Elektronik Surface Pulse Transformer 1:10 Turns Ratio, 100 μH Primary Inductance, 0.22Ω Primary Resistance 750311486
Brand: Wurth Elektronik
SKU: 417039
Price: 7.17 USD
Availability: InStock



Category Pulse Transformer Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Brand	Wurth Elektronik
Length	17.75mm
Depth	12.7mm
Width	13.46mm
Mount Type	Surface
Series	WE‑FB
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Number of Pins	10
Isolation Voltage	2.5kV
Primary Inductance	100μH
Turns Ratio	1:10
Turns Ratio1	10
Primary DC Resistance	0.22Ω
Secondary DC Resistance	31Ω
Leakage Inductance	4.5μH
Wurth Elektronik Surface Pulse Transformer 1	10 Turns Ratio, 100 μH Prim. Inductance, 0.22Ω Prim. Resistance

Key Features

Designed for DC-DC converters and offline PWM switching regulators.
Compact surface mount type ensuring space efficiency.
High isolation voltage of 2.5 kV enhances safety and reliability.
Operates effectively between -40°C and 125°C for varied environments.
Features low leakage inductance of 4.5 μH for optimal performance.
Constructed with 10 pins for robust electrical connectivity.
Complies with RoHS standards ensuring environmental compliance.

Product Description

Wurth Elektronik 750311486 is a high-quality Surface Pulse Transformer engineered specifically for use in DC-DC converters and offline PWM switching regulator circuits. This transformer provides a 1:10 turns ratio and has a primary inductance of 100 μH with a primary DC resistance of 0.22Ω, ensuring efficient signal transformation.

The device is designed as a compact surface mount component with a robust construction adhering to RoHS environmental standards. It supports an isolation voltage of 2.5 kV which ensures safe operation within high voltage environments. Its low leakage inductance of 4.5 μH minimizes energy loss during switching, making it suited for power supply applications requiring high efficiency.

The pulse transformer operates reliably in temperatures ranging from -40°C to 125°C, enabling its deployment in various industrial and commercial settings. Featuring 10 pins, it ensures secure and stable electrical connections on printed circuit boards.

Its physical dimensions of 17.75 mm length, 13.46 mm width, and 12.7 mm depth facilitate easy integration into compact electronic assemblies. The robust Wurth Flyback Transformer series technology incorporated into this model offers versatility for a range of power electronics applications including industrial power supplies, automotive electronics, telecommunications, and consumer electronics.

Designed for DC-DC converters and offline PWM switching regulators. Compact surface mount footprint for space-saving PCB design. High isolation voltage rating of 2.5 kV. Wide operating temperature range from -40°C to 125°C.

Low leakage inductance of 4.5 μH reduces energy loss. Equipped with 10 pins for reliable electrical connections. Compliance with RoHS ensures environmental safety. Precise dimensions allow for easy PCB integration.

This Wurth Elektronik pulse transformer is a reliable choice for engineers seeking efficient and compact transformer components for power conversion and signal isolation tasks. Discover more from the Pulse Transformers category on EnvMart for industrial and electronic component solutions.
