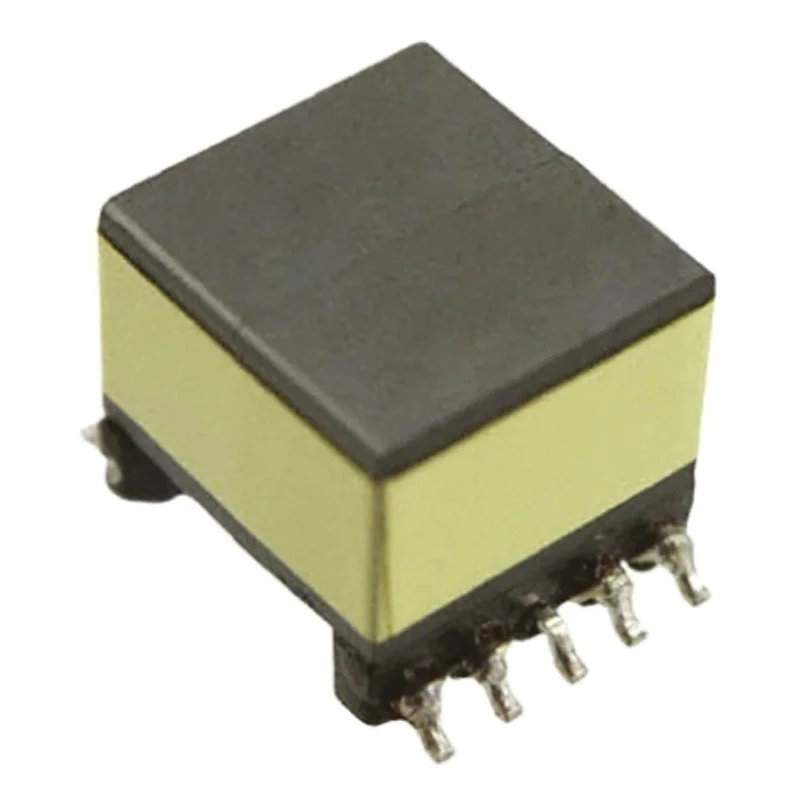

Wurth Elektronik Surface Pulse Transformer 1.5:1 Turns Ratio, 9 μH Primary Inductance, 0.034Ω Primary Resistance 750311624
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Length | 17.75mm |
| Depth | 12.7mm |
| Width | 13.46mm |
| Mount Type | Surface |
| Series | WE‑FB |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Number of Pins | 10 |
| Isolation Voltage | 2.5kV |
| Primary Inductance | 9μH |
| Turns Ratio | 1.5:1 |
| Primary DC Resistance | 0.034Ω |
| Secondary DC Resistance | 0.021Ω |
| Leakage Inductance | 250nH |
| 1.5 | 1 |
| Wurth Elektronik Surface Pulse Transformer 1.5 | 1 Turns Ratio, 9 μH Prim. Inductance, 0.034Ω Prim. Resistance |
| Wurth Elektronik Surface Mount Pulse Transformer 3 | 1 Turns Ratio, 100μH Prim. Inductance, 0.185Ω Prim. ResistanceBrand: Wurth Elektronik |
Key Features
- High-frequency transformer suitable for DC-DC converters and PWM switching regulators.
- Compact surface mount design measuring 17.75mm length, 13.46mm width, and 12.7mm depth.
- Leakage inductance is minimized at 250nH ensuring efficient operation.
- Rated isolation voltage of 2.5kV for safety and reliability.
- Operates reliably in temperatures ranging from -40°C to 125°C.
- Features 10 pins for secure PCB mounting and connectivity.
- Compliant with RoHS environmental standards.
- Designed in the WE-FB series by Wurth Elektronik.
Product Description
Wurth Elektronik 750311624 Surface Pulse Transformer is engineered for high-frequency applications such as DC-DC converters and offline PWM switching power supplies. Its 1.5:1 turns ratio and 9 μH primary inductance provide efficient pulse energy transfer with minimal losses. The primary DC resistance is 0.034Ω, ensuring low power dissipation during operation.
This surface-mounted transformer is compact with dimensions of 17.75mm in length, 13.46mm width, and 12.7mm depth, making it suitable for space-constrained circuit designs. It features 10 pins for easy integration onto printed circuit boards through surface mounting.
Leakage inductance is kept low at 250nH, enhancing performance in sensitive electronic environments. The transformer can withstand isolation voltages of up to 2.5kV, providing safety and compliance for industrial electronics.
Operating temperature ranges from -40°C to 125°C, making it reliable across a broad range of ambient conditions typical in industrial and commercial electronics.
Complying with RoHS standards, this WE-FB series transformer supports environmentally responsible manufacturing processes. Its robust design is ideal for powering switching regulators, power supplies, and other pulse transformer applications in industrial, commercial, and laboratory settings.
High-frequency surface mount pulse transformer with 1.5:1 turns ratio. 9 μH primary inductance and 0.034Ω primary resistance for efficient operation. Compact size with 10 pins and robust construction. Isolation voltage rating of 2.5kV ensures electrical safety.
Wide operating temperature range from -40°C to 125°C. Suitable for DC-DC converters and offline PWM switching regulators. RoHS compliant for environmental safety. Part of Wurth Elektronik's WE‑FB series specialized for flyback transformer applications.
