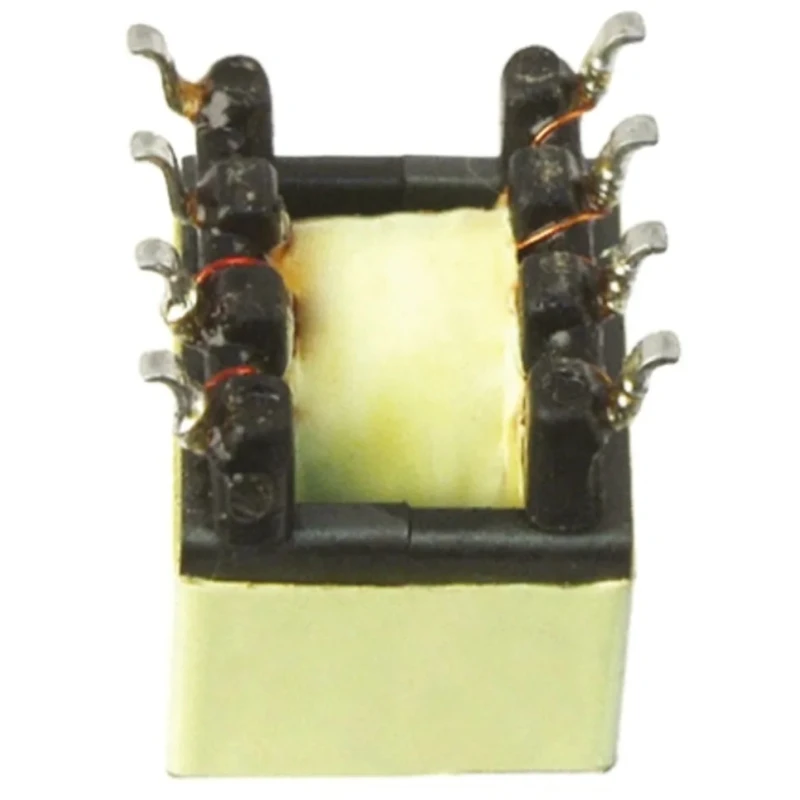

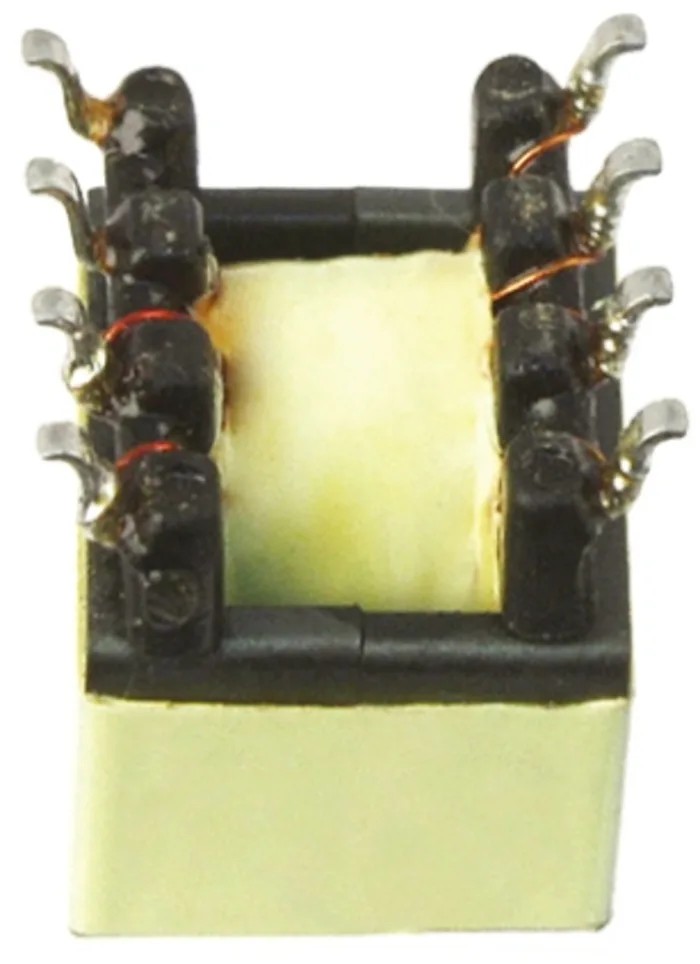

Wurth Elektronik Surface Pulse Transformer 5:1 Turns Ratio, 80μH Primary Inductance, 0.325Ω Primary Resistance 750311692
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Length | 9.14mm |
| Depth | 10.54mm |
| Width | 9.78mm |
| Mount Type | Surface |
| Series | WE‑FB |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Number of Pins | 8 |
| Isolation Voltage | 2.5kV |
| Primary Inductance | 80μH |
| Turns Ratio | 5:1 |
| Primary DC Resistance | 0.325Ω |
| Secondary DC Resistance | 8.7Ω |
| Leakage Inductance | 2μH |
| Turns Ratio5 | 1 |
| Wurth Elektronik Surface Pulse Transformer 5 | 1 Turns Ratio, 80 μH Prim. Inductance, 0.325Ω Prim. Resistance |
Key Features
- Features a primary inductance of 80μH ensuring optimal electromagnetic performance.
- Has a low primary DC resistance of 0.325Ω for minimal power loss.
- Compact surface mount design with 8 pins and dimensions approx. 9.14mm x 9.78mm x 10.54mm.
- Supports operating temperatures from -40°C up to 125°C, suitable for demanding environments.
- Isolation voltage rating of 2.5kV providing strong electrical isolation.
- Meets RoHS standards ensuring compliance with environmental regulations.
- Ideal for DC-DC converters and offline PWM switching regulators in electronics and industrial systems.
Product Description
Wurth Elektronik 750311692 Surface Pulse Transformer is engineered for efficient signal transformation with a precise 5:1 turns ratio, a primary inductance of 80μH, and a very low primary resistance of 0.325 ohms. This pulse transformer is optimized for power supplies and converters requiring compact footprint and high performance.
The device features an 8-pin surface mount design with compact dimensions measuring 9.14mm in length, 9.78mm in width, and 10.54mm in depth, making it suitable for dense PCB layouts. It operates effectively in a wide temperature range from -40°C to 125°C, ensuring reliability under harsh industrial conditions.
With an isolation voltage of 2.5kV, it delivers excellent electrical isolation necessary in industrial and commercial electronics. The transformer complies with RoHS directives, reflecting its environmentally friendly manufacturing process.
This model is part of the WE-FB series and is specifically recommended for DC-DC converters and offline PWM switching regulators, widely used in electronics manufacturing, power supply design, industrial automation, and other technical applications.
5:1 turns ratio for signal adaptation. Primary inductance of 80μH for stable operation. Minimal power loss due to 0.325Ω primary resistance. 8-pin surface mount package for compact PCB integration. Wide operating temperature range from -40°C to 125°C.
2.5kV isolation voltage ensures safety and performance. RoHS compliant for environmental safety. Designed for power supplies, DC-DC converters, and PWM switching applications.
Explore the Electronics & Electricals Pulse Transformer category on EnvMart to find more components like this Wurth Elektronik surface Pulse Transformer, suitable for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary inductance of this pulse transformer is 80μH, ensuring stable operation for signal transformation.
This model features a turns ratio of 5:1, which is designed for effective signal adaptation.
The dimensions of this pulse transformer are approximately 9.14mm in length, 9.78mm in width, and 10.54mm in depth.
The primary DC resistance is 0.325Ω, which helps minimize power loss during operation.
It has an isolation voltage rating of 2.5kV, providing strong electrical isolation necessary for safety in applications.
This model operates effectively in a temperature range from -40°C to 125°C, making it suitable for harsh environments.
The pulse transformer features 8 pins, facilitating its integration into PCB layouts.
It meets RoHS standards, ensuring compliance with environmental regulations.
This model is specifically recommended for use in DC-DC converters and offline PWM switching regulators.
The secondary DC resistance is 8.7Ω, which is relevant for its performance in specific applications.
This transformer is part of the WE-FB series, designed for efficient signal transformation in power supplies.
The country of origin for this model is India.
