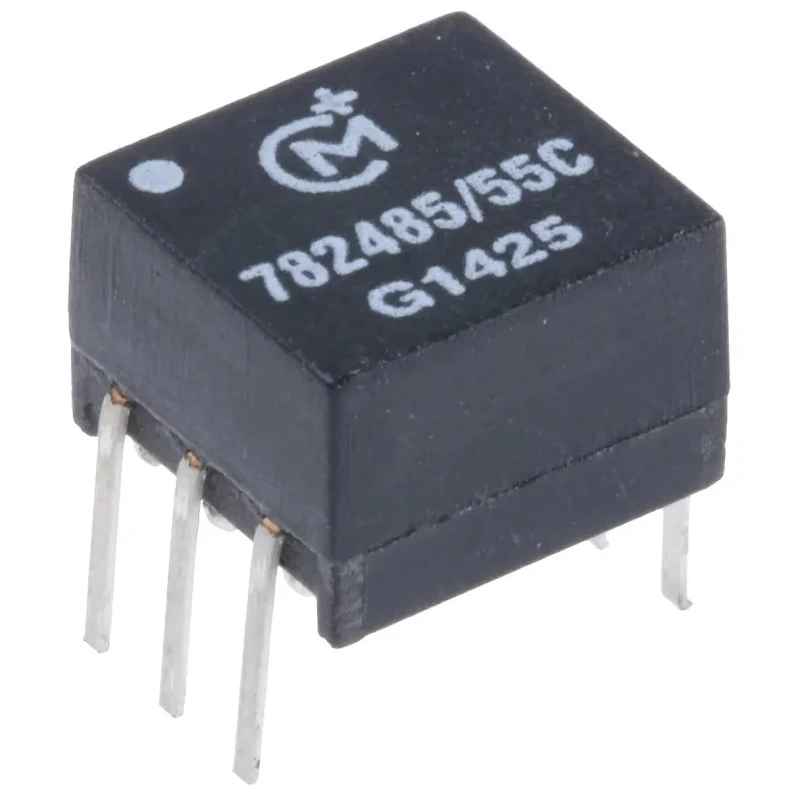

Murata Power Solutions Through Hole Pulse Transformer 1:1.5 Turns Ratio, 513 μH Primary Inductance, 0.6Ω Primary 782485/55C

Murata Power Solutions 782485/55C Through Hole Pulse Transformer offers a reliable 1:1.5 turns ratio and a primary inductance of 513 μH, designed specifically for pulse transformer applications requiring signal isolation and conversion. The through hole mount type and industry-standard 6-pin package provide easy integration into printed circuit boards.

Equipped with a primary DC resistance of 0.6Ω and minimal leakage inductance of 0.192μH, this transformer delivers high-efficiency performance for signal transmission with minimal losses. It supports a continuous current rating of 200mA and withstands an isolation voltage of 2500Vrms, ensuring safety and robustness in sensitive electronic circuits.

The device operates reliably within a wide temperature range from -40°C to 85°C, suitable for various industrial, commercial, and consumer electronics applications. Its compact form factor with dimensions of 9.14mm length, 10.46mm width, and 6.35mm depth enables use in space-limited environments.

This pulse transformer complies with RoHS standards, aligning with environmental regulations and sustainability requirements. Weighing approximately 1 gram, it is designed for lightweight, compact circuit assemblies.

Typical use cases include isolated RS-485 and RS-232 interfaces, analog devices compatibility such as AMD2452E, and low-profile applications demanding high-frequency operation up to 500 kHz at 3.3V and 5V supply voltages. The transformer is part of Murata Power Solutions’ 782485 series, known for reliable electrical performance in power supply and signal isolation circuits.

Through hole mount type with 6 pins designed for ease of PCB installation. Primary DC resistance is 0.6Ω ensuring quality electrical performance. Supports a maximum current of 200mA suitable for general electronic applications.

Leakage inductance is low at 0.192μH for minimal signal loss. Operating temperature range from -40°C to 85°C for reliable operation in various environments. Compact dimensions: Length 9.14mm, Width 10.46mm, Depth 6.35mm for space-efficient design.

Isolation voltage rated at 2500Vrms providing robust electrical isolation. Complies with RoHS standards for environmental safety. Lightweight design with gross weight of approximately 1g for portability and integration. Manufactured in China under the 782485 series ensuring consistent quality and performance.

Ideal for industrial, laboratory, telecommunications, and electronic manufacturing applications where precise pulse transformation and isolation are critical. Explore more Pulse Transformers and power supply components at EnvMart for your electronic design needs.
