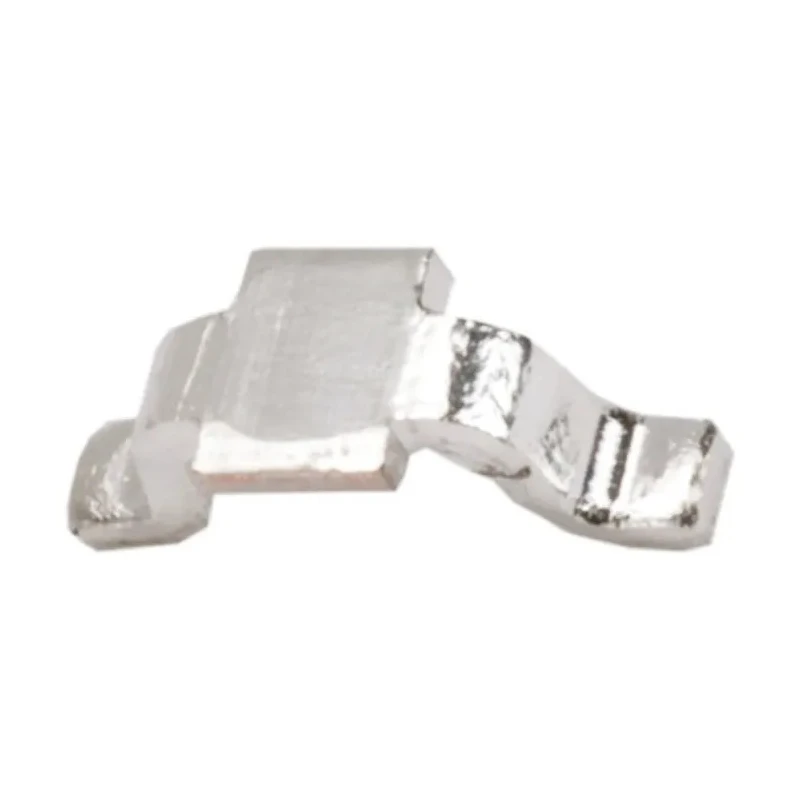

HARWIN Non-Insulated Horizontal 2 Contact 1 Row Jumper 10A Copper Alloy Tin Plated S1731-46R
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | HARWIN |
| Orientation | Horizontal |
| Current | 10A |
| Length | 6.86mm |
| Model | S1731-46R |
| Depth | 2.94mm |
| Width | 2.54mm |
| Contact Material | Copper Alloy |
| Series | S1 |
| Sub Type | Non-Insulated |
| Number of Rows | 1 |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Maximum Contact Resistance | 20mΩ |
| 788-4818 | 12.3 mm long x 1.8 mm high x 2.3 mm wide |
| 788-4827 | 6.86 mm long x 2.54 mm high x 2.54 mm wide |
| 788-4855 | 6.85 mm long x 0.97 mm high x 2.51 mm wide |
Key Features
- Supports a maximum current of 10A for reliable electrical connections.
- Constructed with copper alloy contacts for excellent conductivity.
- Contacts are tin plated to resist corrosion.
- Features a horizontal orientation suitable for SMT board applications.
- Maximum contact resistance is 20 milliohms ensuring low power loss.
- Complies with RoHS standards for environmental safety.
- Manufactured in the United Kingdom ensuring quality standards.
Product Description
HARWIN S1731-46R is a non-insulated horizontal jumper designed to link PCB tracks without requiring though-hole soldering. It contains 2 copper alloy contacts plated with tin to ensure excellent conductivity and resistance to corrosion. The jumper operates at a maximum current of 10 amperes, making it suitable for a range of electronic and power connector applications.
This jumper features a compact footprint with dimensions 6.86 mm in length, 2.54 mm width, and 2.94 mm depth, optimized for space-saving SMT (Surface Mount Technology) designs on circuit boards. Its maximum contact resistance of 20 milliohms ensures minimal power loss and efficient current flow.
Compliant with RoHS standards, S1731-46R supports environmentally responsible electronics manufacturing. Manufactured in the United Kingdom, this product meets stringent quality and reliability standards expected in industrial, electronic components, power connectors, and PCB connector applications.
The horizontal orientation of this jumper makes it ideal for backplane power applications or use in electronic assemblies requiring bridging between PCB tracks without the need for through-hole components. It belongs to the Harwin S1 series of EZ Boardware SMT jumper links, which come in various sizes to accommodate different design requirements.
Supports up to 10A current capacity. Compact and durable copper alloy contacts with tin plating. Low maximum contact resistance of 20mΩ ensuring signal integrity. RoHS certified ensuring compliance with environmental regulations.
Manufactured in the United Kingdom for assured quality. Designed for SMT mounting facilitating easy integration on PCBs. Suitable for industrial, electronic, power distribution, and PCB connector use cases.
The package is prepared for efficient insertion into machinery enhancing production efficiency in electronic manufacturing environments. This jumper is suitable for applications in industrial automation, power connectors, and PCB assembly industries.
For more related components, explore the Jumpers & Shunts category in the Electronics & Electricals section at EnvMart.
Explore more products in our Jumpers & Shunts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This jumper supports a maximum current capacity of 10A, making it suitable for various electronic and power connector applications.
The dimensions of this model are 6.86 mm in length, 2.54 mm in width, and 2.94 mm in depth, optimized for space-saving designs.
The contacts are made of copper alloy and are plated with tin to enhance conductivity and resist corrosion.
This jumper features a horizontal orientation, making it suitable for SMT (Surface Mount Technology) applications on circuit boards.
The maximum contact resistance is 20 milliohms, ensuring low power loss and efficient current flow.
Yes, the HARWIN S1731-46R is compliant with RoHS standards, ensuring it meets environmental safety regulations.
This jumper has 2 contacts, allowing it to link PCB tracks effectively without through-hole soldering.
It belongs to the Harwin S1 series of EZ Boardware SMT jumper links, which come in various sizes for different design requirements.
This model is suitable for applications in industrial automation, power connectors, and PCB assembly industries.
It is manufactured in the United Kingdom, ensuring adherence to quality standards expected in electronic components.
This jumper is designed for SMT mounting, facilitating easy integration onto PCBs.
The sub-type of this jumper is non-insulated, which is suitable for specific applications that do not require insulation.
