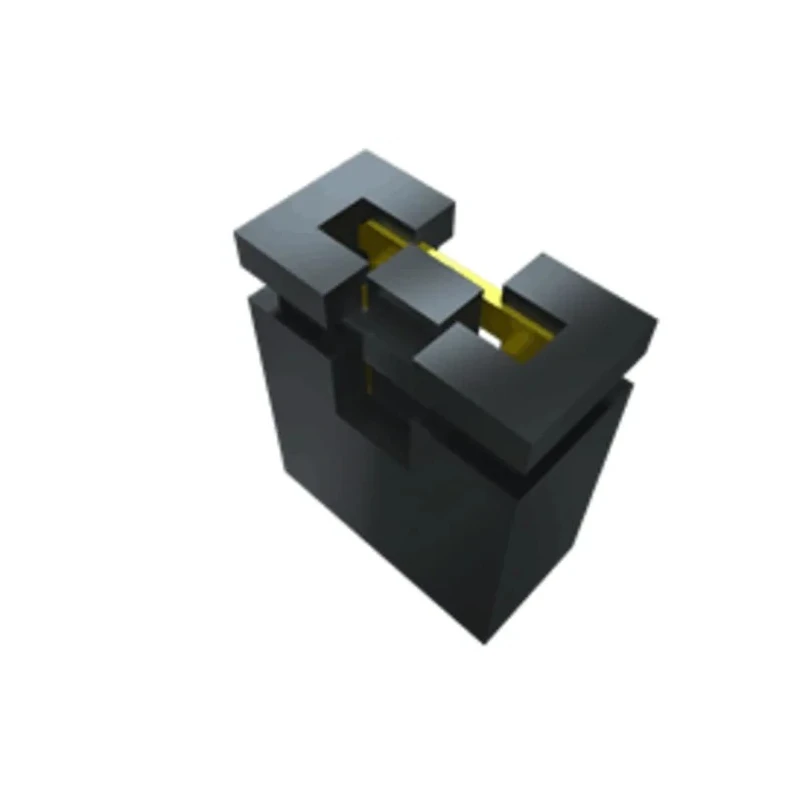

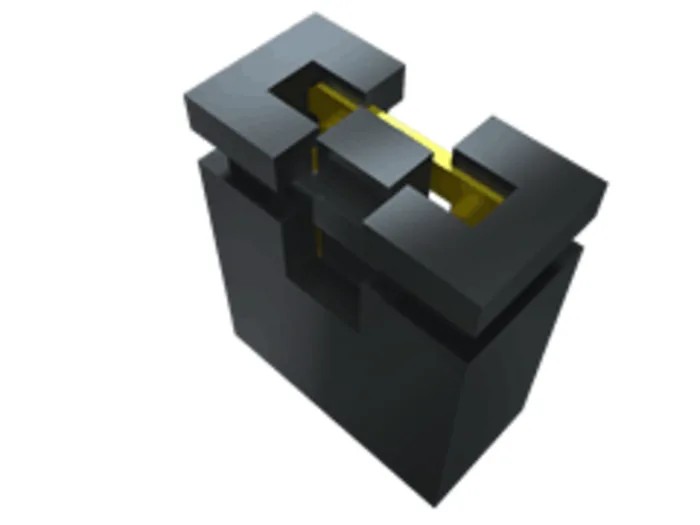

Samtec Shunt Straight Female Black 2 Way 1 Row 2.54 mm Pitch SNT-100-BK-H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Colour | Black |
| Color | Black |
| Orientation | Straight |
| Current | 4.3A |
| Length | 5.08mm |
| Model | SNT-100-BK-H |
| Depth | 6.1mm |
| Width | 2.54mm |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | SNT |
| Sub Type | Shunt |
| Number of Rows | 1 |
| Positions | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- Constructed from glass filled polyester housing for durability.
- Features 2 phosphor bronze contacts plated with gold for optimal conductivity.
- Supports a current rating of 4.3A ensuring reliable performance.
- Compact dimensions with 5.08mm length, 2.54mm width, and 6.1mm depth.
- Designed with a .100" (2.54 mm) pitch and .050" (1.27 mm) spacing for compatibility.
- Single-row configuration simplifies PCB jumper connections.
- Black coloration aids in easy identification and organization on PCBs.
- Suitable for electronic, power connectors, and PCB connector applications.
Product Description
Samtec SNT-100-BK-H is a precision-engineered shunt designed for use as a straight female jumper in electronic PCB applications. This black shunt connector features two positions arranged in a single row with a 2.54 mm pitch, facilitating seamless electrical connections on printed circuit boards.
The housing is made of robust glass filled polyester, providing high mechanical strength and durability suitable for industrial and laboratory environments. The contacts are manufactured from phosphor bronze and plated with gold to ensure superior conductivity and corrosion resistance, supporting a continuous current of up to 4.3 amperes.
Its compact form factor with a length of 5.08 mm, width of 2.54 mm, and a depth of 6.1 mm makes it ideal for tight PCB spaces while maintaining reliable contact alignment. The standard pitch of 2.54 mm (0.100") with an additional spacing of 1.27 mm (0.050") between contact points aligns with common PCB design standards.
This shunt is specifically designed for facilitating jumpers and shunts in power connector assemblies, electronic components, and industrial control panels. Its straight orientation enhances easy insertion and removal during assembly and maintenance.
Durable glass filled polyester housing for mechanical reliability. Gold-plated phosphor bronze contacts ensure excellent electrical performance. Rated for 4.3A current suitable for various electrical loads. Compact single-row, 2-position shunt for flexible PCB layout.
Black color provides visual distinction in connector rows. Standard 2.54 mm pitch compatible with many electronics standards. Straight female connector for straightforward jumper application.
This product is widely applicable across industrial automation, electronics manufacturing, laboratory equipment, and power distribution systems requiring reliable PCB shunts. For more electronic connectors and jumpers, explore the comprehensive EnvMart catalog.
Explore more products in our Jumpers & Shunts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 4.3A, ensuring reliable performance in various applications.
The compact dimensions of this unit are 5.08mm in length, 2.54mm in width, and 6.1mm in depth.
It features a housing made from glass filled polyester and contacts made of phosphor bronze plated with gold for optimal conductivity.
This shunt connector has 2 positions arranged in a single row, designed for easy PCB jumper connections.
The pitch of this model is 2.54 mm (0.100"), which is compatible with common PCB design standards.
This connector is designed with a straight orientation, facilitating easy insertion and removal during assembly.
Yes, it is specifically designed for facilitating jumpers and shunts in power connector assemblies and other electronic components.
This model is black in color, aiding in easy identification and organization on printed circuit boards.
The contact gender of this model is female, making it suitable for various jumper applications.
The country of origin for this product is India.
It is widely applicable across industrial automation, electronics manufacturing, laboratory equipment, and power distribution systems.
The contacts are plated with gold, which ensures superior conductivity and corrosion resistance.
