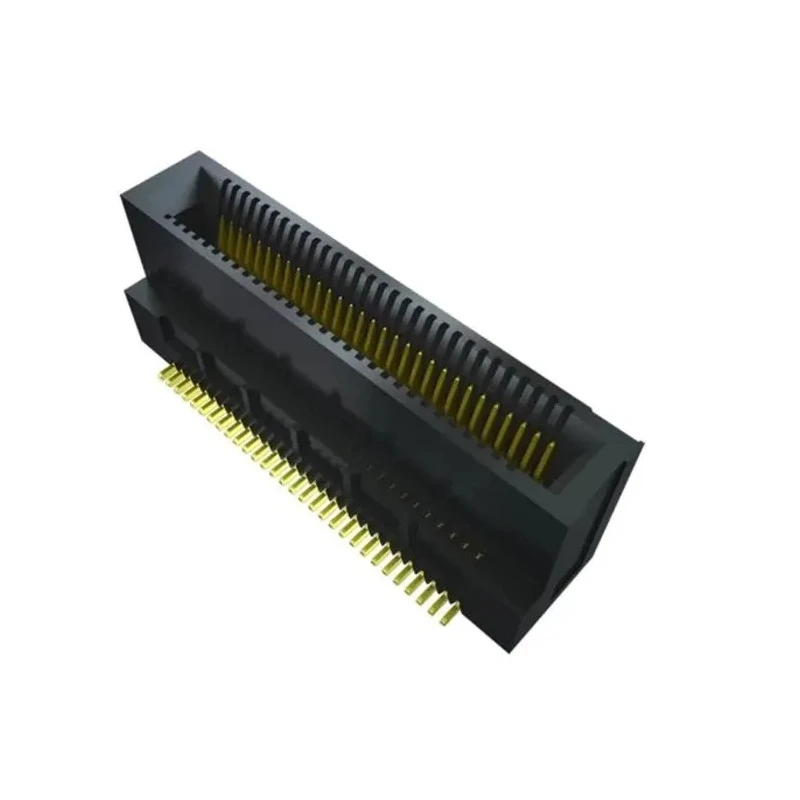

Samtec Series Vertical Edge Connector Female, Surface Mount, 60 Contacts, 0.635 mm Pitch, 2 Row, Solder Termination MEC6-DV

Free Delivery in India | Lowest Global Shipping Charges

Samtec Series Vertical Edge Connector Female, Surface Mount, 60 Contacts, 0.635 mm Pitch, 2 Row, Solder Termination MEC6-DV

Name: Samtec Series Vertical Edge Connector Female, Surface Mount, 60 Contacts, 0.635 mm Pitch, 2 Row, Solder Termination MEC6-DV
Brand: Samtec
SKU: 423027
Price: 9.75 USD
Availability: InStock



Category Edge Connector Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Samtec
Orientation	Vertical
Current	2.4A
Model	MEC6-DV
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	MEC6-DV
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.635mm
Contact Plating	Gold
Number of Contacts	60
Contact Gender	Male
Connector Gender	Female
Card Type	Edge
Card Thickness	1.6mm

Key Features

Vertical orientation ensures compact PCB integration.
60 contacts arranged in 2 rows for robust connectivity.
0.635 mm pitch supports high-density circuit applications.
Gold-plated phosphor bronze contacts provide excellent conductivity.
Liquid Crystal Polymer housing offers high temperature resistance up to 125°C.
Rated for currents up to 2.4A and voltage of 250V.
Solder termination type ensures secure and durable connections.
Operates reliably from minimum -55°C to maximum 125°C.

Product Description

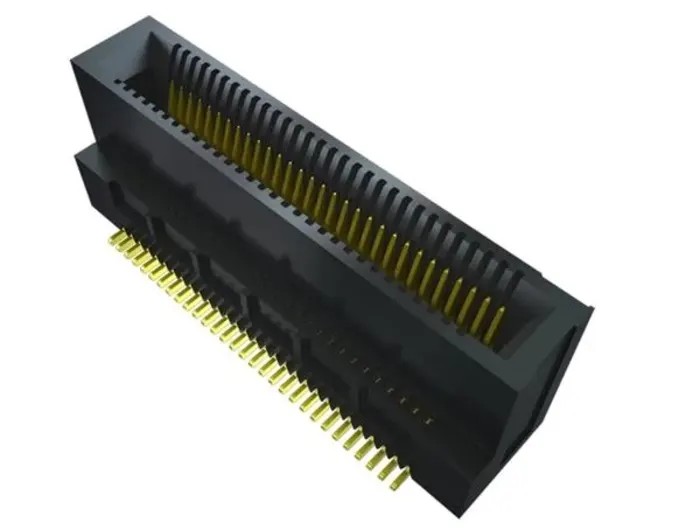

Samtec MEC6-DV Series Vertical Edge Connector MEC6-DV is a female Edge Connector designed for surface mounting on printed circuit boards. It features 60 contacts arranged in two rows with a 0.635 mm pitch, making it ideal for compact and high-density electronic assemblies.

The connector uses gold-plated phosphor bronze contacts to ensure excellent electrical conductivity and durability. Its housing is constructed from Liquid Crystal Polymer, which provides high resistance to temperatures up to 125°C, suitable for demanding industrial and electronic applications.

With an operating temperature range from -55°C to 125°C, and a current rating of 2.4A and voltage rating of 250V, this connector meets the needs of a variety of industrial, manufacturing, and laboratory applications requiring reliable electronic interfacing.

The MEC6-DV series connector includes features such as alignment pins and a polyimide pick & place pad, enhancing assembly precision. It is terminated with solder tails with matte tin plating for secure PCB mounting.

Vertical orientation enables space-saving designs. High contact count supports complex circuitry. Robust construction for harsh environments. Gold contact plating ensures reliable signal transmission. Liquid Crystal Polymer housing withstands high thermal stress.

Current and voltage ratings support varied electronics systems. Effective pick & place compatibility for automated assembly. Alignment pins improve installation accuracy. Suitable for use in industrial equipment, factory automation, networking, and electronics manufacturing.

Samtec connectors are recognized for high-quality and reliable performance in electronic components. Explore the full range at EnvMart for connectors and related accessories.
