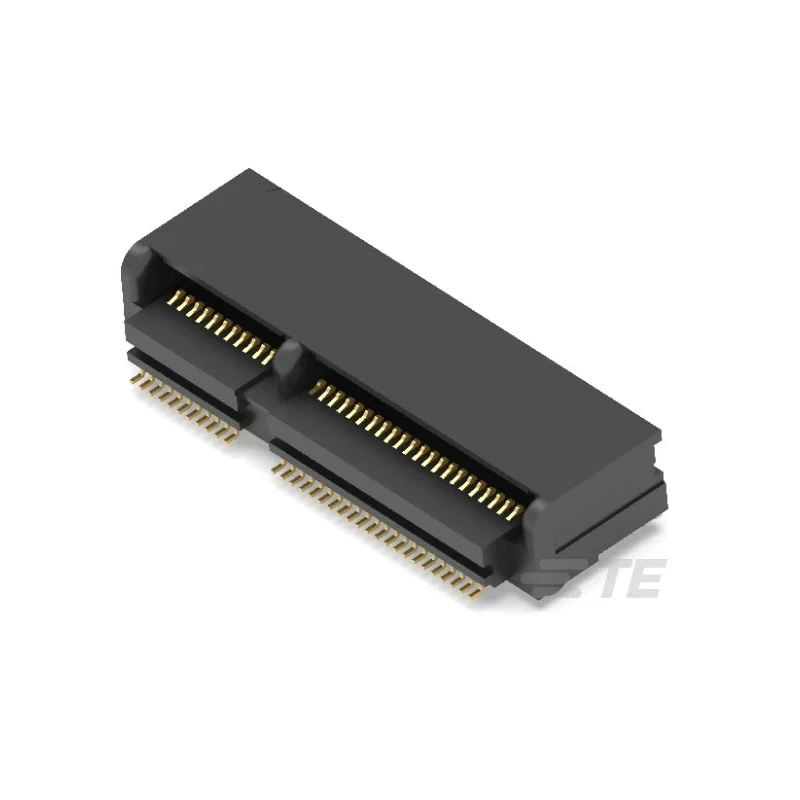

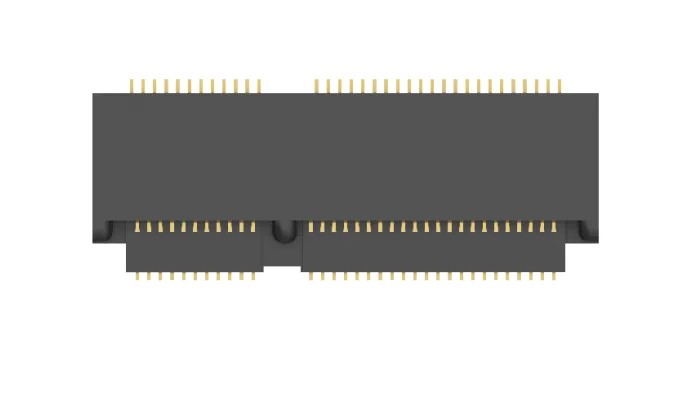

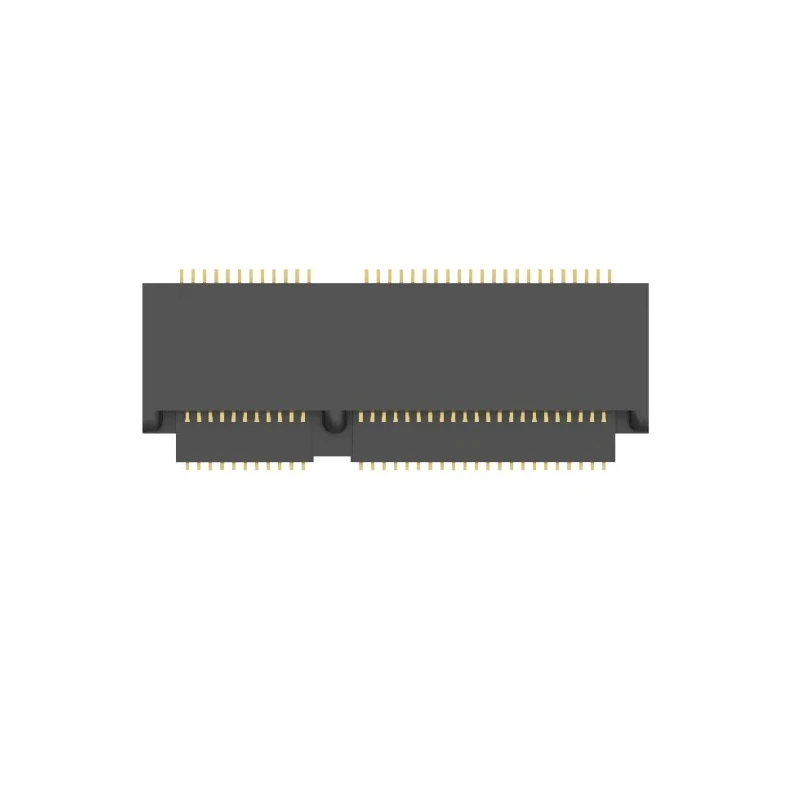

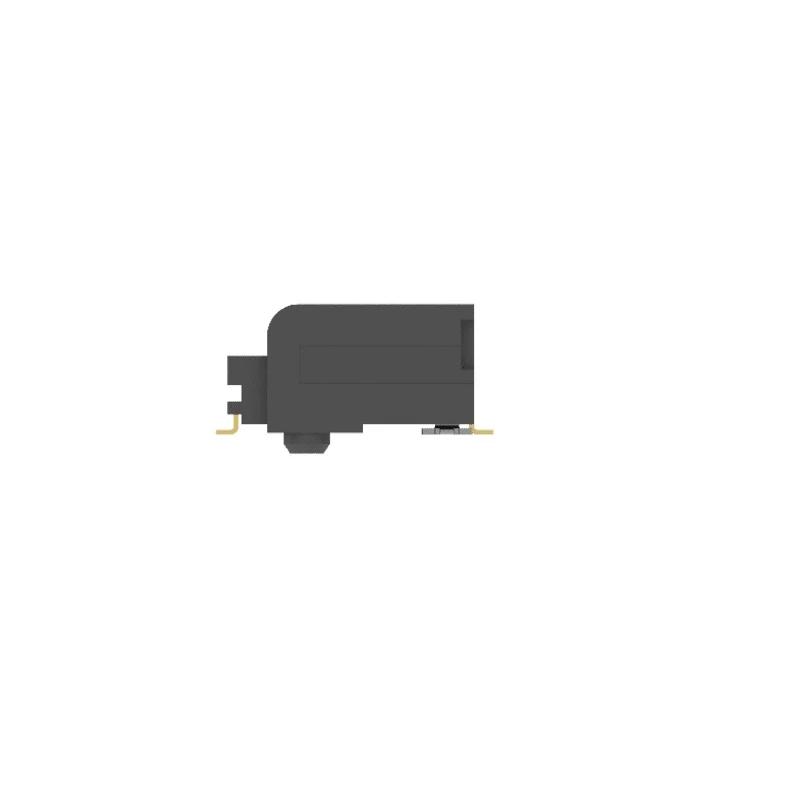

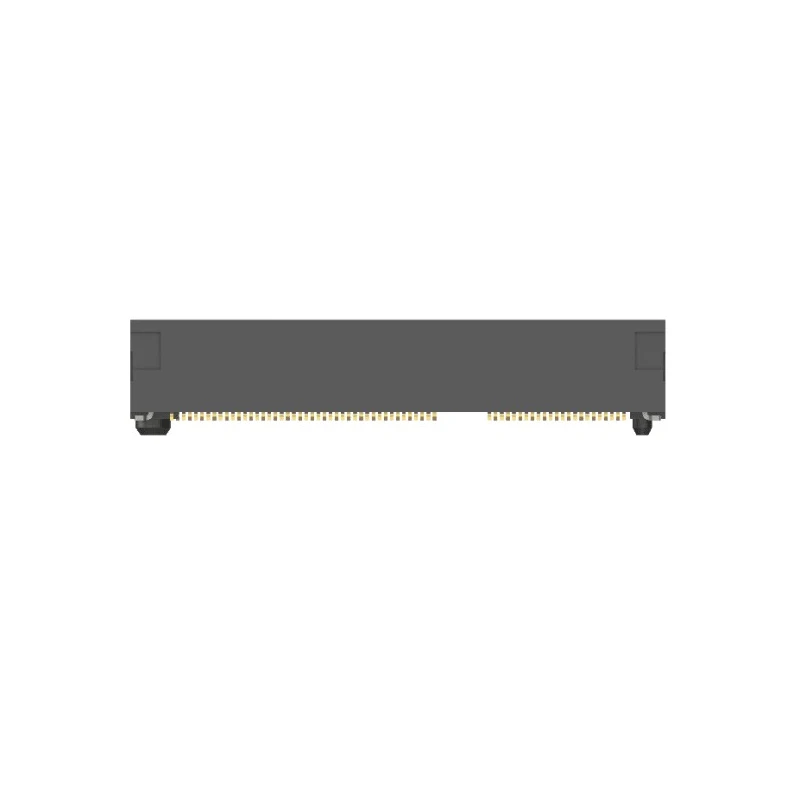

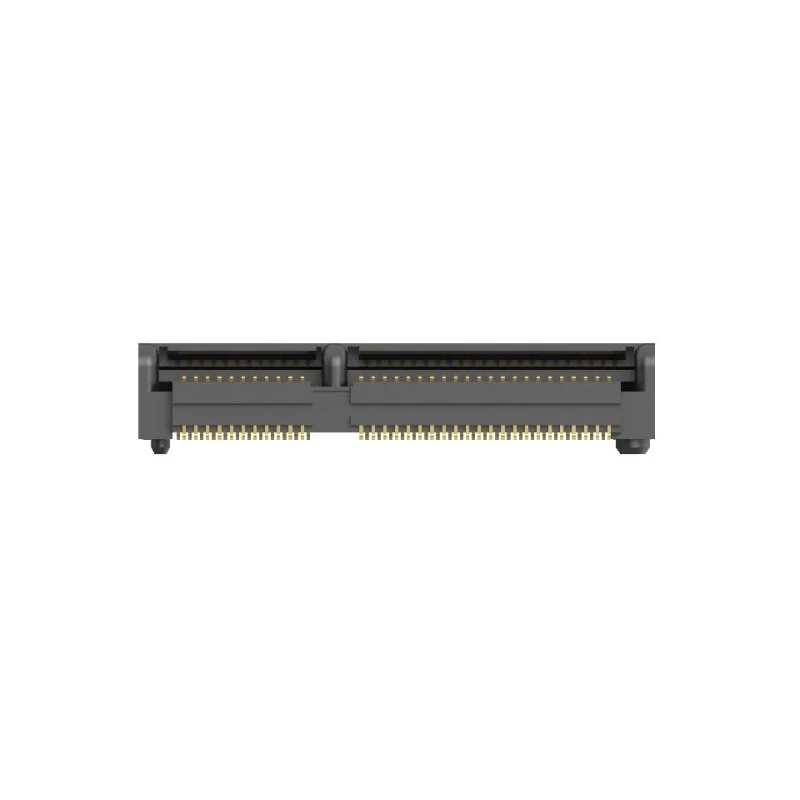

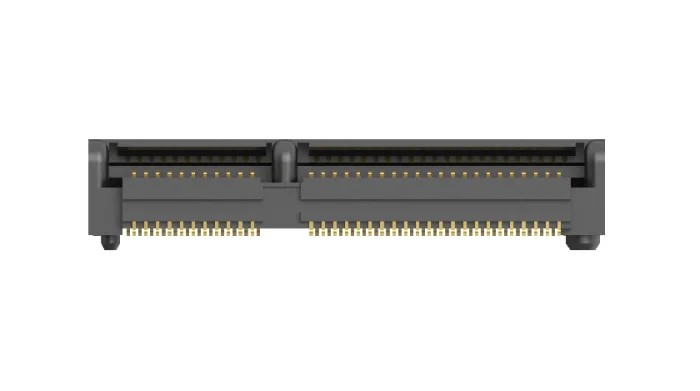

TE Connectivity M.2 NGFF Series Right Angle Edge Connector Female, Surface Mount, 67 Contacts, 0.5 mm Pitch, 2 2199230-4

TE Connectivity 2199230-4 is a high-quality right angle edge connector in the M.2 NGFF series, designed for electronic and industrial applications requiring secure electrical connections. This female connector features 67 gold plated contacts arranged in 2 rows, with a 0.5 mm pitch, providing reliable signal integrity and low contact resistance.

The surface mount design simplifies PCB assembly and reduces footprint, ideal for compact designs in computing hardware such as PCI card implementations. Its right angle orientation facilitates easier routing on densely populated circuit boards.

Operating within a temperature range from -80°C to -40°C, this connector is suitable for demanding industrial and electronic environments. The housing is constructed from high-temperature thermoplastic material offering robustness and longevity.

With a rated maximum voltage of 50V and a current capacity of 500mA per contact, it meets stringent performance requirements. The connector is solder-terminated, ensuring a strong mechanical and electrical bond to the PCB.

As a RoHS-compliant component, it meets environmental and safety regulations important in manufacturing. The TE Connectivity 2199230-4 Edge Connector is ideal for use in electronics manufacturing, laboratory equipment, industrial automation, and computing hardware assembly.

Compatible with M.2 NGFF series for PCI card types. Maximum operating voltage of 50V ensures stable signal transmission. Operating temperature range from -80°C to -40°C suitable for harsh environments. Gold plated contact material and plating for enhanced corrosion resistance.

Solder termination type for secure PCB attachment. Connector orientation is right angle facilitating PCB layout design. High-temperature thermoplastic housing material for durability. Compliant with RoHS standards ensuring environmental safety.
