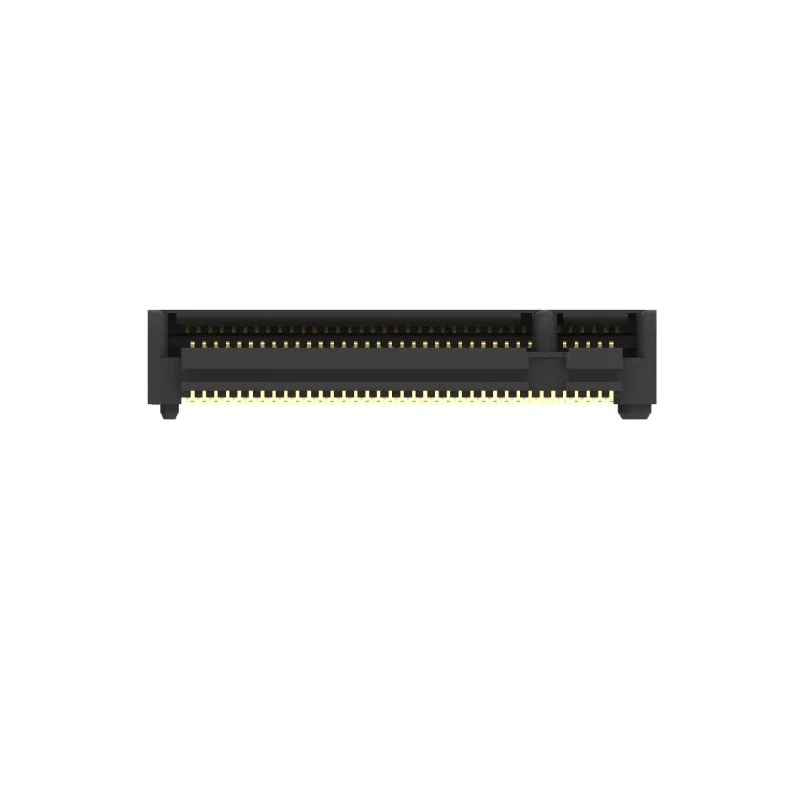

TE Connectivity Right Angle Edge Connector Female Through Hole 67-Contacts 1 mm Pitch 2 Row Solder 1-2199230-5

TE Connectivity 1-2199230-5 right angle Edge Connector female is a precision electrical connector designed for use with single or double-sided printed circuit boards (PCBs). Featuring 67 female contacts arranged in 2 rows with a 1 mm pitch, this connector enables efficient and reliable connections through a solder-based through hole mount.

The connector is rated for a current of 500mA and voltage of 50V, making it suitable for moderate power applications. Contacts are gold plated copper alloy for excellent electrical conductivity and corrosion resistance. The housing is composed of liquid crystal polymer, providing robust mechanical strength and thermal stability.

This product is engineered to operate reliably within a temperature range of -80°C to -40°C and features a keying way to ensure correct mating, preventing assembly errors. Fully RoHS compliant and meeting EU ELV requirements, it meets international environmental and safety standards.

Typical industrial applications include electronic devices, computing equipment, power connectors, automation machinery, and other electronic assembly systems requiring reliable edge board connections. The right angle orientation facilitates efficient PCB layout and space utilization.

This connector is manufactured to exacting TE Connectivity standards in China, ensuring consistent quality and performance. Packaged ready for automated insertion and soldering, it streamlines manufacturing and assembly processes.

Operates with a current rating of 500mA and voltage up to 50V. Features gold-plated copper alloy contacts ensuring reliable conductivity. Suitable for minimum operating temperatures of -80°C and maximum of -40°C. Constructed with a liquid crystal polymer housing for enhanced durability.

Complies with RoHS standards and is EU ELV compliant. Keying way design prevents incorrect insertion. Female connector gender and solder termination type improve installation reliability. Designed to mate with edge of single or double-sided PCBs forming external electrical connections.
