TE Connectivity Right Angle Edge Connector Female, Surface Mount, 52-Contacts, 0.8 mm Pitch, 2 Row 1775862-2

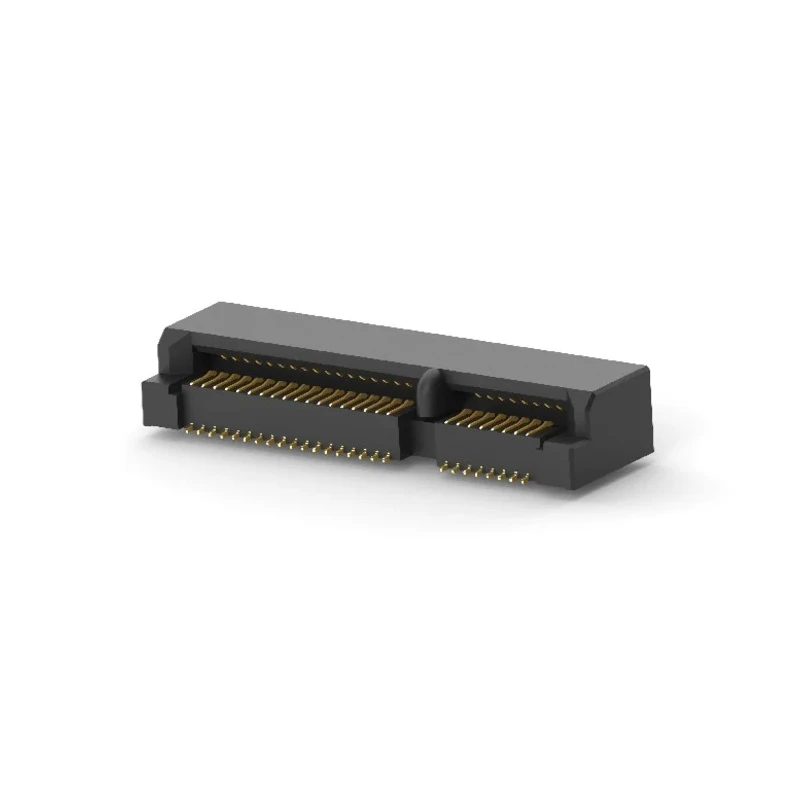

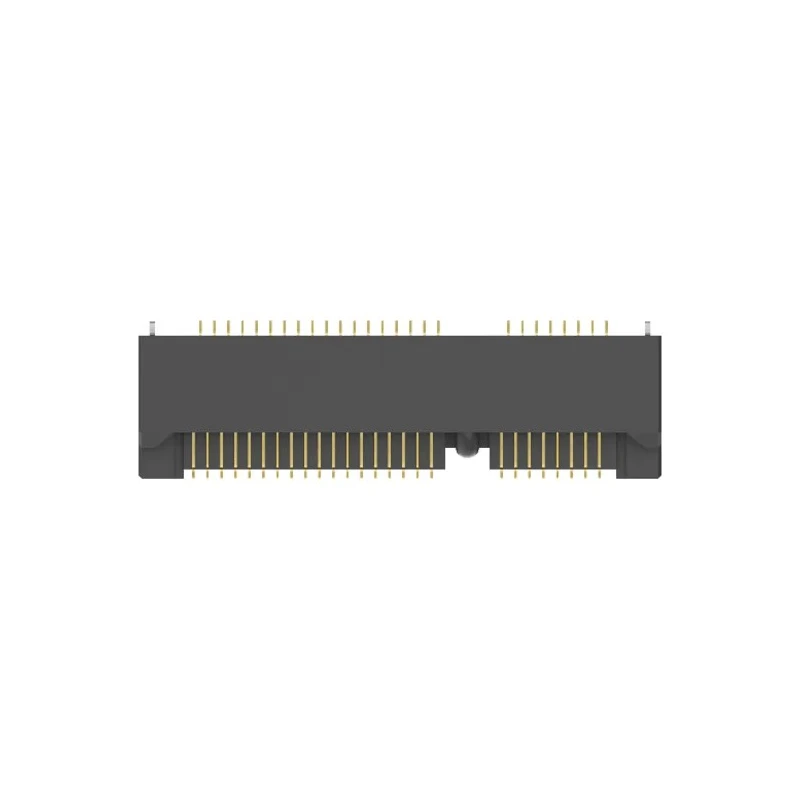

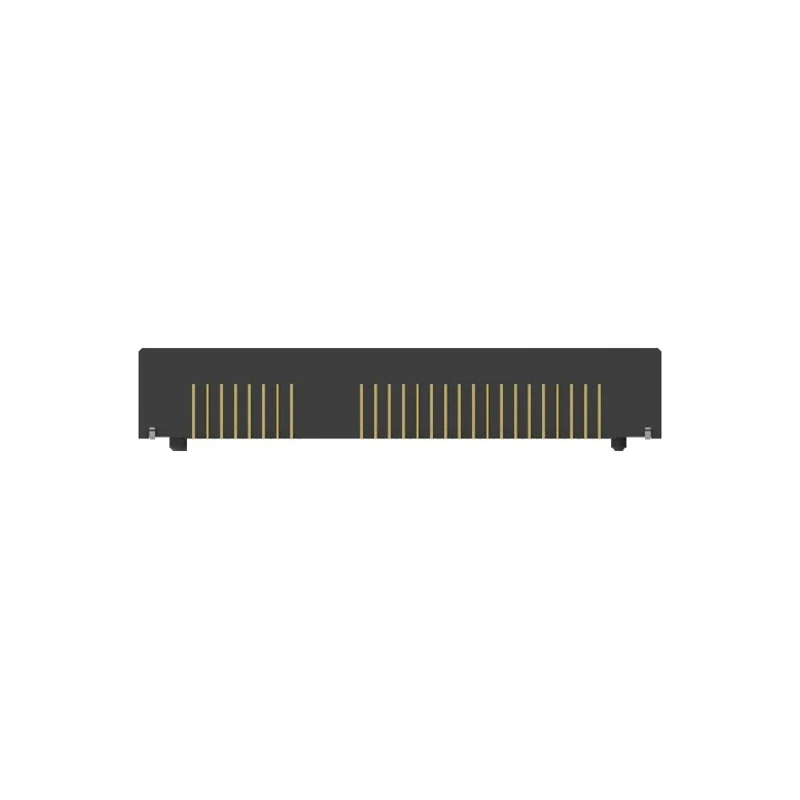

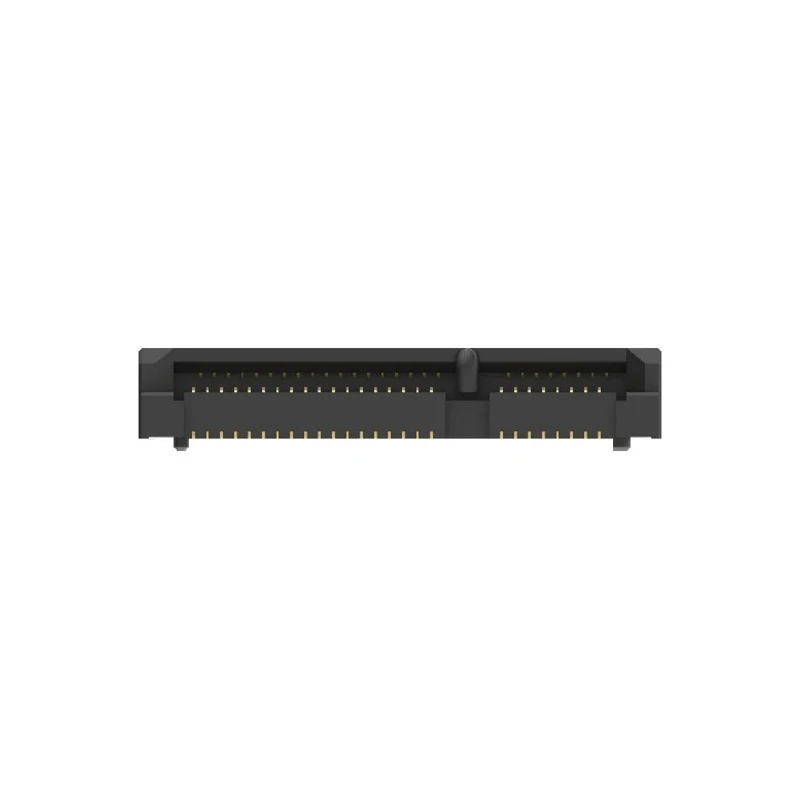

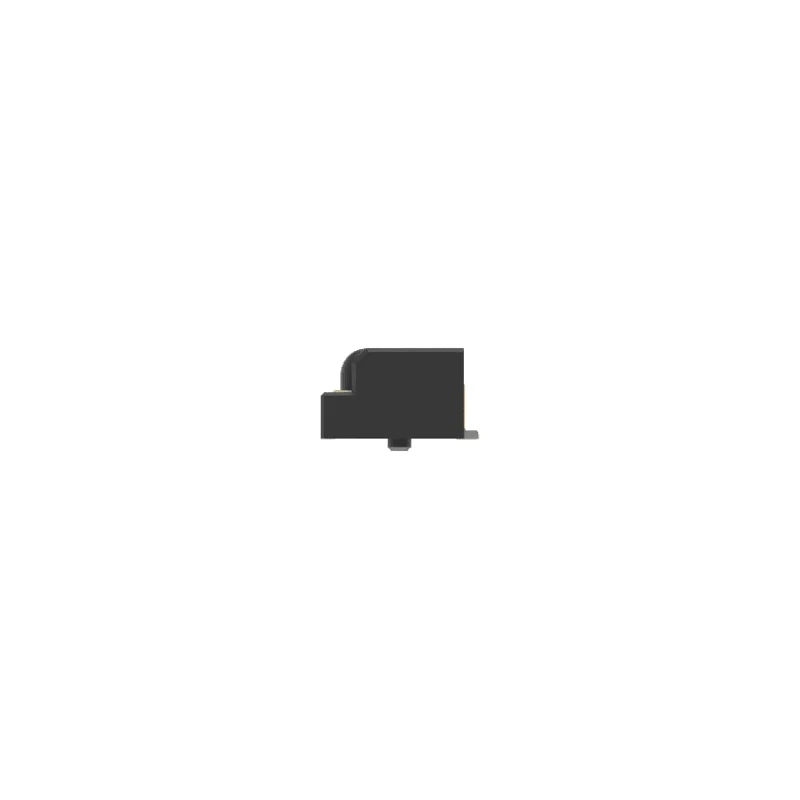

TE Connectivity 1775862-2 Right Angle Edge Connector is a female socket designed to mate directly with the edge of single or double-sided PCBs. This surface mount connector features 52 contacts arranged in two rows with a 0.8 mm pitch, optimized for PCI card types. It is engineered for robust and reliable electrical connections in electronics and electrical assembly applications.

The connector's right angle orientation facilitates flexible PCB positioning in compact and dense circuit layouts. With a maximum current rating of 500mA, it supports moderate signal and power transmission.

Contacts are made from a copper alloy and plated with gold flash to ensure excellent conductivity and resistance to corrosion. The housing constructed from thermoplastic material provides durability and mechanical stability under industrial conditions.

Designed to function across a wide temperature range from -85°C to -55°C, the connector suits harsh environments and demanding electrical applications. Its keyed design prevents improper mating, safeguarding system integrity.

Termination uses surface mount technology, enabling efficient and stable PCB mounting. Compliant with RoHS standards, the connector meets environmental and safety regulations. This connector mounts at a right angle for flexible PCB connection.

It supports a maximum current of 500mA for reliable signal transmission. Contact plating is gold flash over copper alloy for enhanced conductivity and corrosion resistance. The housing is made of durable thermoplastic material suitable for industrial use.

Operating temperature range is from -85°C minimum to -55°C maximum. It has male contact gender to pair with the female connector interface. Termination is by surface mount technology ensuring secure PCB assembly. Keying way is included to prevent mismating during installation.

Compliance with RoHS standards guarantees environmental safety.

This TE Connectivity Edge Connector is widely used in industrial electronics, computing hardware assemblies, communication devices, and manufacturing equipment where PCB edge interfacing is required. It is ideal for applications needing compact, secure, and reliable card edge connections.
