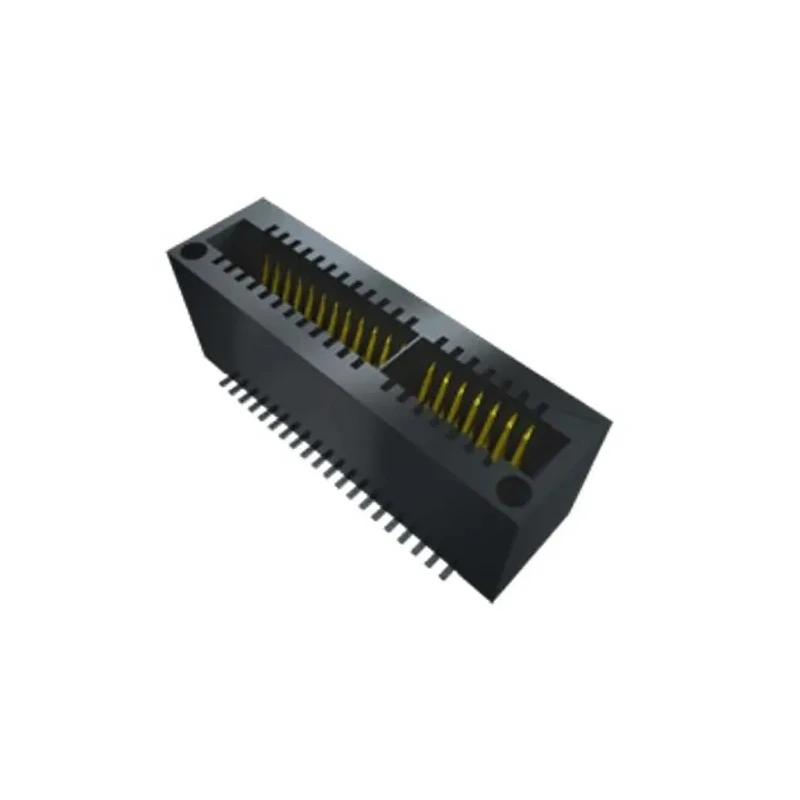

Samtec MEC1 Series Vertical Edge Connector Female 50-Contacts 1 mm Pitch 1 Row Surface Mount Solder

Samtec MEC1-150-02-S-D-A is a high-quality vertical edge connector designed for electronic components and PCB edge card applications. It features 50 female contacts arranged in a single row with a 1 mm pitch, mounted on the surface through solder termination. This connector ensures stable electrical performance with its gold-plated phosphor bronze contacts, making it suitable for reliable high-density connections.

The connector supports a current rating of 2.2A and a voltage rating of 250V, making it ideal for moderate power applications. Its operating temperature range from -55°C to 125°C covers industrial requirements, providing resilience in challenging environments. The black liquid crystal polymer housing offers excellent insulation, strength, and durability for long-term usage.

Designed as a mini edge card socket, it accepts cards with a thickness of 1.6 mm, making it suitable for compact electronic assemblies and devices.

Common industrial applications include electronic manufacturing, instrumentation, control systems, telecommunications, and laboratory electronics where reliable edge connections are essential. Its surface mount technology compatibility enables efficient PCB assembly processes, enhancing production throughput.

Key features include gold contact plating for corrosion resistance, phosphor bronze materials for excellent conductivity, and a solder termination type ensuring robust mechanical and electrical joints. The connector does not include certifications but complies with standard design and material quality suitable for various industrial and commercial uses.

Features gold-plated phosphor bronze contacts for reliable electrical connectivity. Rated for 2.2A current and 250V voltage for efficient power handling. Operates within temperature range from -55°C to 125°C for industrial use.

Constructed with black liquid crystal polymer housing ensuring durability and insulation. Designed as a mini edge card socket compatible with 1.6 mm card thickness. Surface mount mount type suitable for PCB assembly in electronic components.
