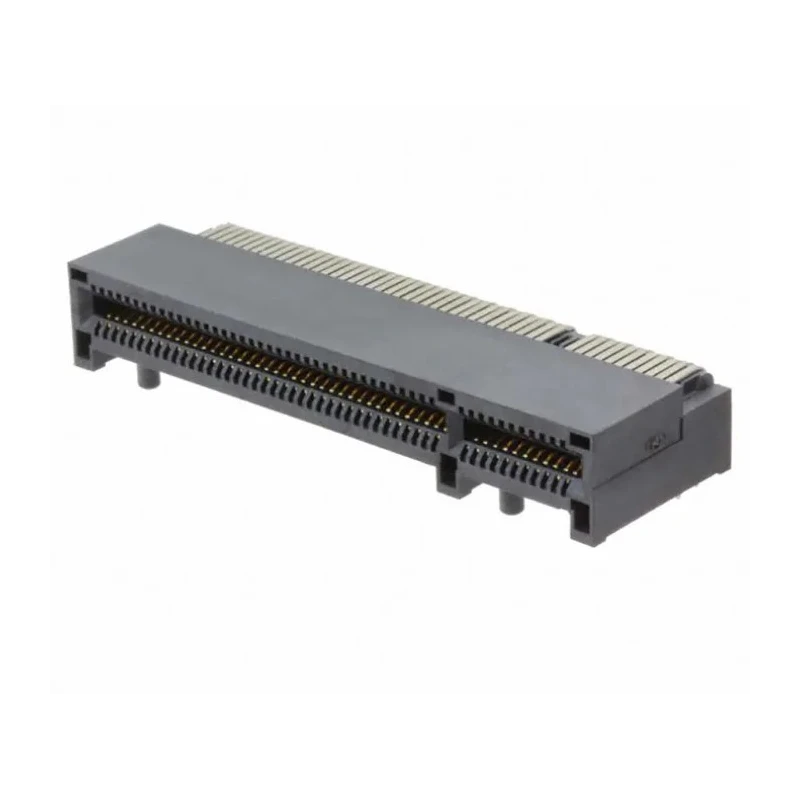

Samtec PCIe Series Vertical Edge Connector Female, Surface Mount, 164 Contacts, 1 mm Pitch, 1 Row, Solder PCIE-164-02-S-D-RA

Free Delivery in India | Lowest Global Shipping Charges

Samtec PCIe Series Vertical Edge Connector Female, Surface Mount, 164 Contacts, 1 mm Pitch, 1 Row, Solder PCIE-164-02-S-D-RA

Name: Samtec PCIe Series Vertical Edge Connector Female, Surface Mount, 164 Contacts, 1 mm Pitch, 1 Row, Solder PCIE-164-02-S-D-RA
Brand: Samtec
SKU: 426383
Price: 23.86 USD
Availability: InStock



Category Edge Connector Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	215V
Brand	Samtec
Orientation	Vertical
Current	2.1A
Model	PCIE-164-02-S-D-RA
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	PCIe
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	1mm
Contact Plating	Gold, Tin
Number of Contacts	164
Contact Gender	Female
Connector Gender	Female
Card Type	PCIe
Card Thickness	1.6mm
Accepts	1.60 mm thick cards

Key Features

Supports one-row vertical orientation for PCIe card connectivity.
Features solder termination for reliable electrical connections.
Contact plating composed of gold and tin for durability.
Constructed with phosphor bronze contact material providing excellent conductivity.
Compatible with 1.60 mm thick PCIe cards.
Operates within a temperature range of -55°C to 125°C.
Rated for 215 V and 2.1 A current capacity.
Housing manufactured from liquid crystal polymer ensuring structural integrity.

Product Description

Samtec PCIE-164-02-S-D-RA vertical edge connector female is a high-quality surface mount PCIe Edge Connector designed for electronic and industrial applications requiring reliable card connectivity. This connector features 164 contacts arranged in a single row with a precise 1 mm pitch, supporting PCIe cards up to 1.60 mm thickness.

The connector orientation is vertical ensuring efficient PCB layout. Contacts are fabricated from phosphor bronze material plated with gold and tin to optimize signal transmission and corrosion resistance. The solder termination style supports secure and dependable PCB connections.

Engineered to operate between -55°C and 125°C, this connector is well-suited for challenging environments in industrial, laboratory, and manufacturing sectors. It carries a voltage rating of 215 V and a current rating of 2.1 A, meeting performance needs for PCIe data interfaces.

The housing is made from durable liquid crystal polymer, providing enhanced mechanical strength and longevity. This product conforms to PCIe series specifications and is compatible with a broad range of industrial edge card applications requiring vertical female connectors.

Supports one-row vertical orientation for PCIe card connectivity. Features solder termination for reliable electrical connections. Contact plating composed of gold and tin for durability. Constructed with phosphor bronze contact material providing excellent conductivity.

Compatible with 1.60 mm thick PCIe cards. Operates within a temperature range of -55°C to 125°C. Rated for 215 V and 2.1 A current capacity. Housing manufactured from liquid crystal polymer ensuring structural integrity.

This Samtec PCIE-164-02-S-D-RA connector is ideal for use in electronic components manufacturing, industrial control systems, telecommunications, and high-speed computing environments. It enables reliable PCIe interface connectivity with exceptional electrical and mechanical characteristics. Explore EnvMart's Electronics & Electricals category for comprehensive connector solutions suitable for diverse industrial applications.
