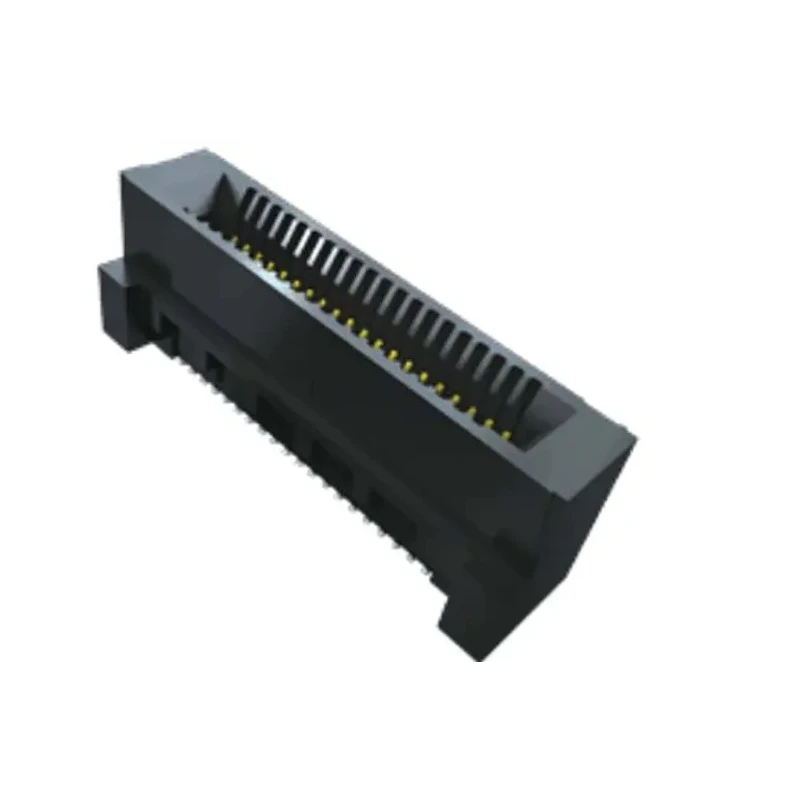

Samtec Series Right Angle Edge Connector Female, Surface Mount, 20 Contacts, 0.8 mm Pitch, 1 Row, Solder Termination HSEC8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 2.6A |
| Model | HSEC8 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HSEC8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCIe |
| Card Thickness | 1.6mm |
Key Features
- Features beryllium copper alloy contacts plated with gold for reliable conductivity.
- Offers a current rating of 2.6A per contact for stable performance.
- Constructed using black liquid crystal polymer housing for durability.
- Designed for PCIe card type with 1.6 mm card thickness compatibility.
- Operates efficiently within a temperature range of -55°C to 125°C.
- Rated for 240V voltage and suitable for high-speed edge card applications.
- Surface mount orientation with right angle configuration enhances PCB layout flexibility.
- Meets RoHS compliance for lead-free soldering and environmental safety.
Product Description
Samtec HSEC8 series right angle edge connector female model HSEC8-120-01-S-RA is a high-performance connector designed for electronic and electrical applications requiring secure surface mount connections. This Edge Connector features 20 gold-plated contacts made from beryllium copper alloy, ensuring excellent conductivity and corrosion resistance. It is compatible with PCIe card types with a card thickness of 1.6 mm and supports a pitch of 0.8 mm with a single row configuration.
The connector is engineered to handle currents up to 2.6A per contact and voltages up to 240V, making it suitable for demanding industrial environments. It operates reliably across a wide temperature range from -55°C to 125°C, meeting the requirements for robust industrial, laboratory, and manufacturing uses.
The housing material, a black liquid crystal polymer, provides excellent mechanical stability and durability. The right angle orientation enables versatile PCB integration and space-saving designs. Solder termination ensures secure mounting and optimal electrical contact.
Gold-plated beryllium copper contacts provide durability and conductivity. Current rating of 2.6A per contact suits high-power applications. Liquid crystal polymer housing ensures mechanical strength and temperature resistance.
Right angle, surface mount design optimizes PCB layout and assembly. Compatible with PCIe card type and 1.6 mm card thickness for various system designs. Wide operating temperature range (-55°C to 125°C) for industrial reliability.
Voltage rating of 240V supports diverse electrical environments. Lead-free and RoHS compliant to meet environmental and regulatory standards.
This connector is ideal for use in industrial equipment, electronics manufacturing, laboratory instrumentation, and data communication systems. It offers robust and reliable performance for high-speed edge card connections, supporting complex PCB designs where space and durability are critical.
Explore other high-quality connectors and electronic components on EnvMart to meet your project requirements and ensure seamless integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 2.6A per contact, making it suitable for high-power applications.
This model is rated for a voltage of 240V, suitable for diverse electrical environments.
It operates efficiently within a temperature range of -55°C to 125°C, ensuring reliability in various conditions.
The housing is made from liquid crystal polymer, and the contacts are beryllium copper alloy with gold plating for conductivity.
It features 20 contacts arranged in a single row configuration.
Yes, it is designed specifically for PCIe card types and is compatible with a card thickness of 1.6 mm.
It utilizes solder termination for secure mounting and optimal electrical contact.
This connector has a right angle orientation, which enhances PCB layout flexibility.
The country of origin for this connector is India.
The pitch size is 0.8 mm, which is suitable for compact designs.
Yes, it meets RoHS compliance for lead-free soldering and environmental safety.
It is ideal for use in industrial equipment, electronics manufacturing, laboratory instrumentation, and data communication systems.
