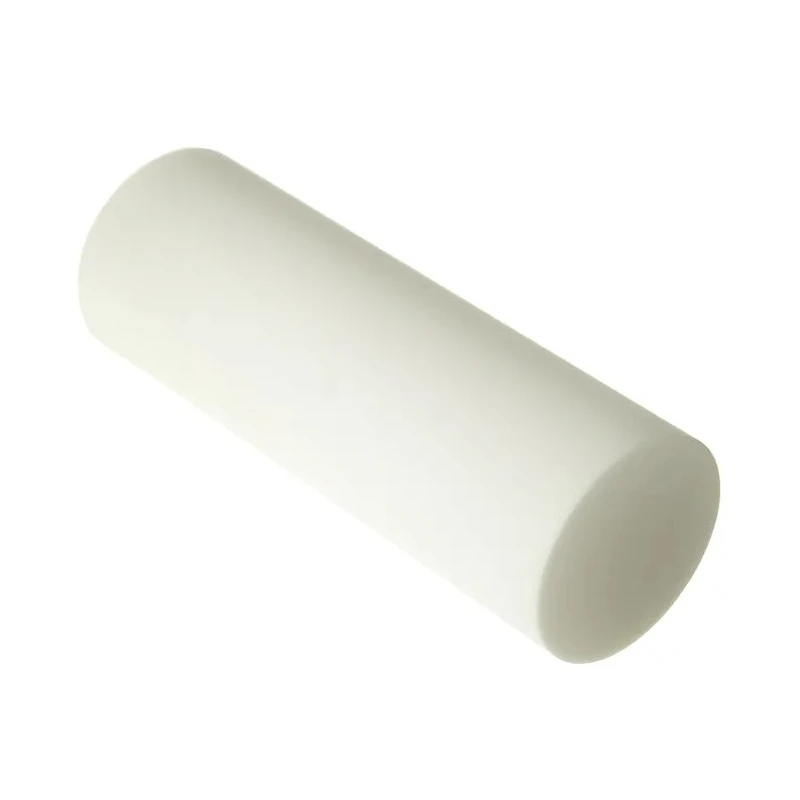

Goodfellow Machinable Glass Ceramic Ceramic Rod White 100 mm Length 35 mm Diameter 225-5505

Goodfellow 225-5505 Machinable Glass Ceramic Ceramic Rod is designed for precision component manufacturing and industrial applications requiring high thermal resistance and mechanical strength. This white ceramic rod measures 100 mm in length and 35 mm in diameter, making it ideal for machining with ordinary metalworking tools without the need for post firing.

The Macor® machinable glass ceramic material offers non-wetting properties, zero porosity, and no deformation under thermal stress. It exhibits a thermal conductivity of 1.46 W/mK and a density of 2.52 g/cm³, delivering reliable thermal and mechanical performance.

The rod features an A 48 Rockwell hardness rating, a compressive strength of 35 kg/mm², and fracture toughness of 1.53 MPa, ensuring durability in demanding environments. It conforms to international standards including NF ISO 719, ISO 695, DIN 52322, DIN 12116, and DIN 12111, with water absorption of 0% and a maximum continuous operating temperature of 800°C (maximum no load temperature of 1000°C).

Machining tolerances approach 0.013 mm with achievable polished smoothness at the same level. This ceramic rod can be sealed and joined to itself or to other materials for complex assembly requirements. Its white color enhances visual identification during industrial processes.

Constructed from white machinable glass ceramic material. 100 mm length and 35 mm diameter dimensions for precise machining. High thermal conductivity and low water absorption for stability under thermal loads. Strong hardness and compressive strength for mechanical robustness.

Compliance with multiple international standards ensures quality and reliability. Macor® trademarked material offers exceptional machinability without post firing.

This ceramic rod is suited for laboratory, industrial manufacturing, precision engineering, and thermal management applications. Its ability to be machined with ordinary metalworking tools allows cost-effective custom component fabrication.
