IQD 14.7456 MHz Crystal Oscillator ±20 ppm Frequency Tolerance HC-49 2-Pin Through Hole LFXTAL003218B

IQD LFXTAL003218B is a high-quality 14.7456 MHz crystal oscillator designed for precision frequency generation applications. It features a frequency tolerance of ±20 ppm, ensuring reliable and accurate operation in electronic circuits.

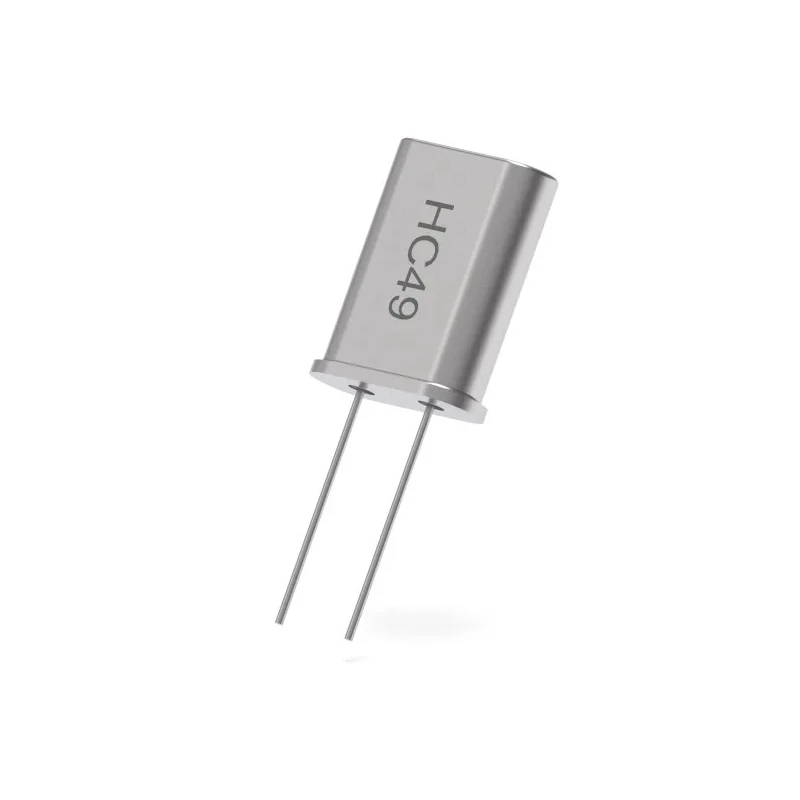

Packaged in the robust HC-49 through hole two-pin configuration, this crystal is well-suited for use in various industrial, laboratory, and consumer electronic devices requiring stable frequency sources.

The crystal has a load capacitance of 30 pF and a series resistance of 35 Ω, optimized for oscillator circuit performance. It operates efficiently within a temperature range from -10°C to 60°C, suitable for typical environmental conditions in manufacturing and commercial equipment.

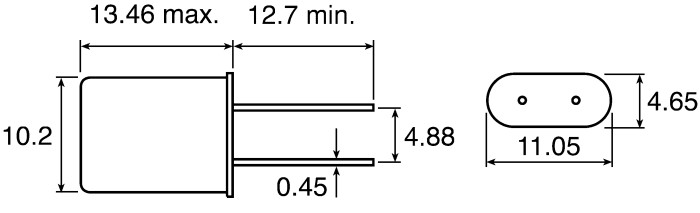

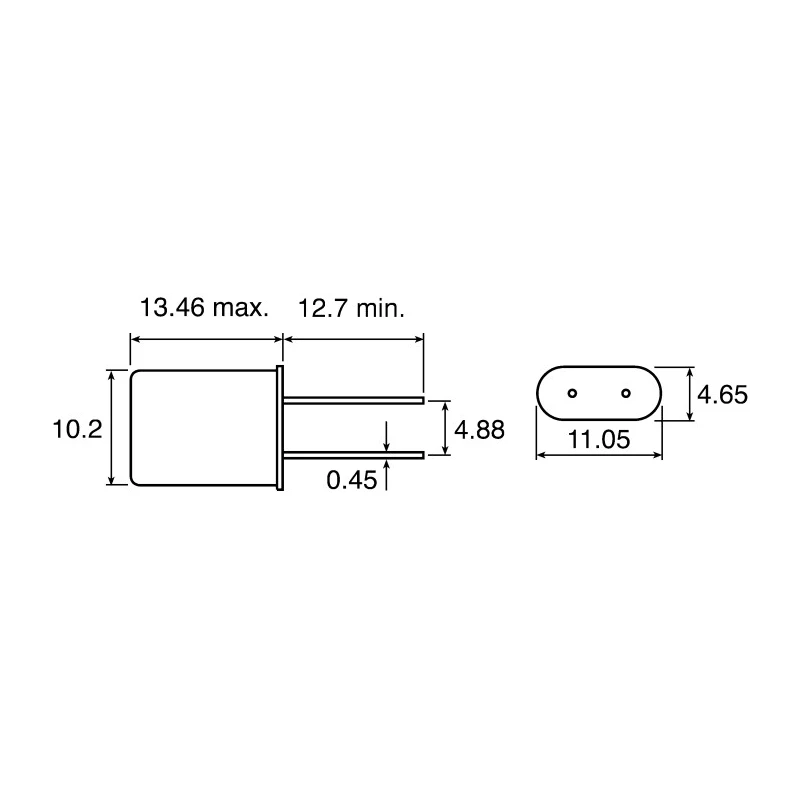

Physical dimensions of 13.46 mm height, 11.05 mm length, and 4.65 mm width enable compact PCB footprint requirements. Its tape and reel packaging format facilitates streamlined assembly in automated production lines.

This crystal oscillator operates with a standard frequency of 14.7456 MHz. It features a frequency tolerance of ±20 ppm and frequency stability of ±30 ppm. The component uses a two-pin HC-49 through hole mount package. Load capacitance is 30 pF, suitable for precision oscillator circuits.

Physical dimensions are 13.46 mm height, 11.05 mm length, and 4.65 mm width. Operating temperature ranges from -10°C minimum to 60°C maximum. The series resistance is 35 Ω, ensuring reliable signal stability. Packaging is supplied in tape and reel for automated manufacturing processes.

This IQD crystal unit is ideal for industrial electronics, communications equipment, consumer devices, and laboratory instrumentation requiring accurate and stable frequency references. Its compliance with RoHS standards assures environmental and safety quality.
