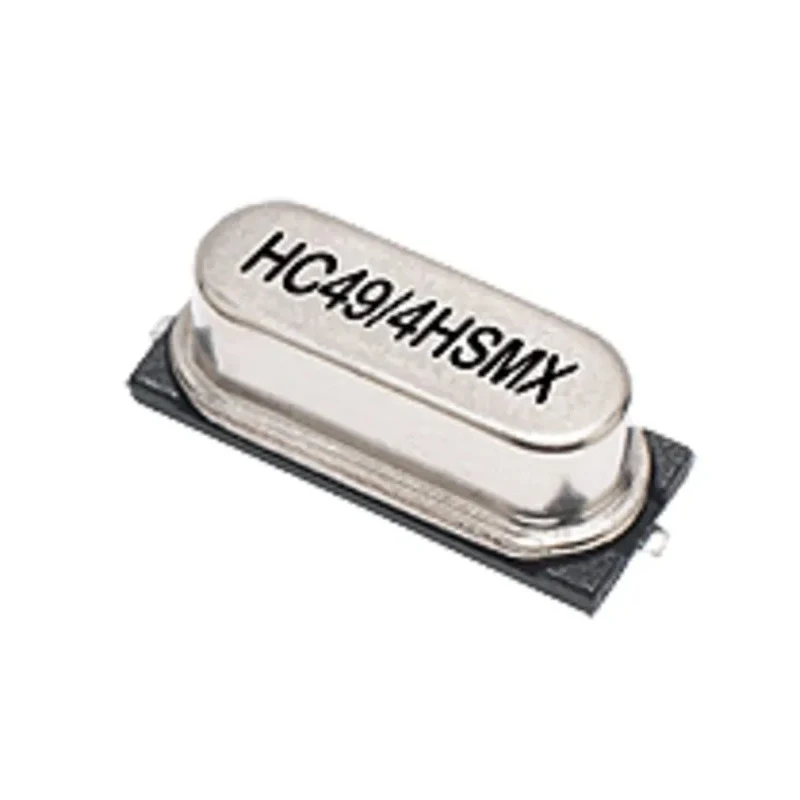

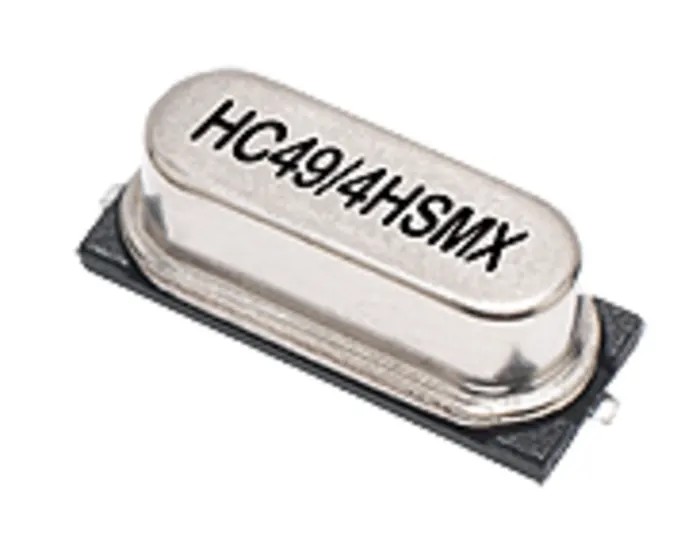

IQD 6 MHz Crystal Unit ±20 ppm Surface Mount 2-Pin 4.3 mm Height 11.4 mm Length 4.9 mm Width LFXTAL026900

The IQD LFXTAL026900 6 MHz Crystal Unit is a precision electronic component designed for use in a broad range of electronic circuits requiring stable frequency control. This surface mount device features a two-pin configuration, making it ideal for space-efficient printed circuit board layouts in telecommunications, computing, and industrial electronics applications.

This crystal unit operates at a standard frequency of 6 MHz with a frequency tolerance of ±20 ppm and frequency stability of ±50 ppm, accommodating varying ambient temperature conditions from -10°C to 60°C. Its load capacitance of 16 pF and series resistance of 60 Ω ensure reliable signal oscillation and frequency accuracy.

The physical dimensions of 11.4 mm length, 4.9 mm width, and 4.3 mm height allow for compact mounting without compromising performance. The product is resistance welded and hermetically sealed within an inert atmosphere ensuring longevity and robustness against environmental factors. Additionally, the plastic former with gull wing leads design supports straightforward surface mount soldering processes.

This crystal unit complies with RoHS standards, making it suitable for environmentally conscious product assemblies. It is well suited for use in industrial equipment, laboratory instruments, communication devices, and consumer electronics where precise timing and frequency stabilization are critical.

Standard frequency of 6 MHz for diverse electronic applications. Surface mount, 2-pin package type enhances PCB design flexibility. Frequency tolerance ±20 ppm with ±50 ppm stability across temperature range. Operating temperature range from -10°C to 60°C.

Load capacitance of 16 pF tailored for oscillation circuits. Compact dimensions: 11.4 mm × 4.9 mm × 4.3 mm. Series resistance of 60 Ω for signal integrity. RoHS compliant ensuring environmental safety. Resistance welded and hermetically sealed for long-term reliability.

Plastic former with gull wing leads for secure mounting.

This IQD crystal unit is recommended for electronics manufacturing professionals and engineers designing timing and frequency control circuits. Browse EnvMart’s extensive range of Crystal Units and electronic components for complementary parts and accessories.
