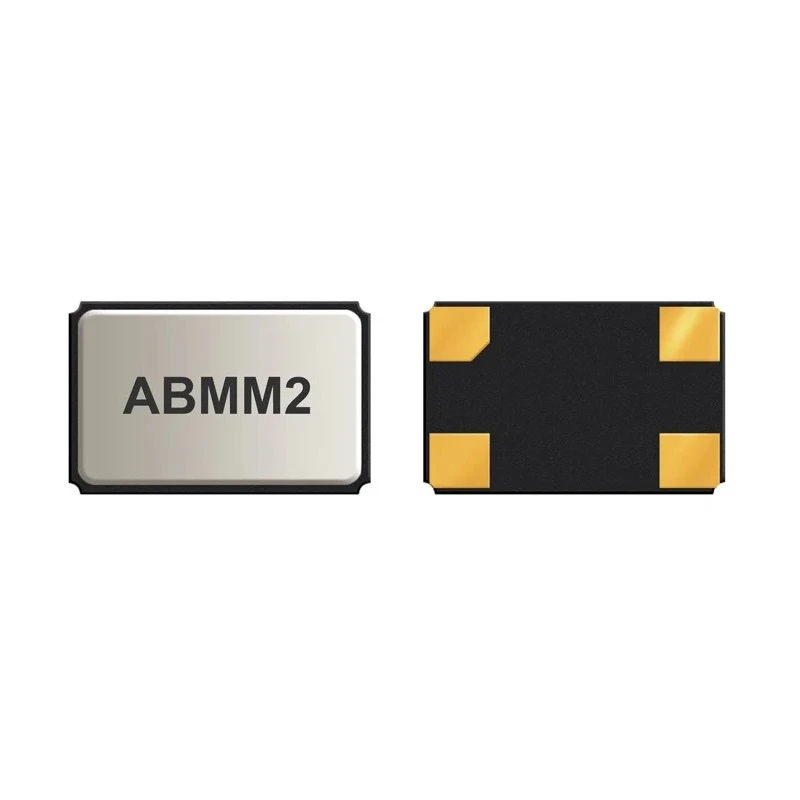

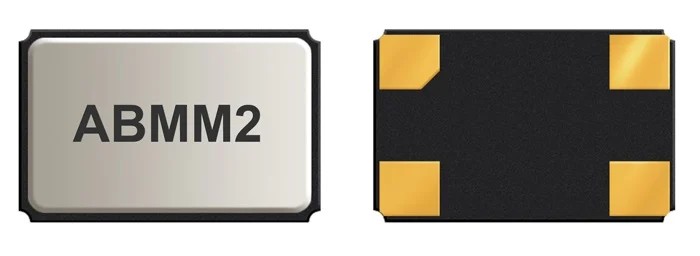

Abracon 25 MHz Crystal Unit ±20 ppm Surface Mount 4-Pin 1.2 mm Height 6 mm Length 3.5 mm Width ABMM2-25.000MHZ-D1-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.2mm |
| Length | 6mm |
| Model | ABMM2-25.000MHZ-D1-T |
| Packaging | Tape & Reel |
| Width | 3.5mm |
| Mount Type | Surface |
| Series | ABmm² |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 25MHz |
| Load Capacitance | 18pF |
| Series Resistance | 50Ω |
Key Features
- Operates at a standard frequency of 25 MHz with ±20 ppm frequency tolerance.
- Designed for surface mount applications with 4 pins and a low height profile of 1.2 mm.
- Features 18 pF load capacitance and 50 Ω series resistance for stable operation.
- Suitable operating temperature range from -10°C to 60°C, ensuring reliable performance.
- Packaged in tape & reel format facilitating automated assembly.
- Manufactured with RoHS compliant materials and seam sealed ceramic package for high reliability.
- Ideal for computer, modem, microprocessor, communication, and test equipment applications.
Product Description
Abracon ABMM2-25.000MHZ-D1-T 25 MHz Crystal Unit Surface Mount 4-Pin dimensions 6 mm length x 3.5 mm width x 1.2 mm height is a precision quartz crystal designed for stable frequency generation in electronic circuits.
This crystal unit offers a ±20 ppm frequency tolerance and stability. It features a surface mount 4-pin package with an 18 pF load capacitance and a series resistance of 50 Ω. The unit is suitable for operation within a temperature range of -10°C to 60°C and is RoHS compliant, making it environmentally safe for electronic assembly.
Its tape & reel packaging supports high-volume automated placement in manufacturing processes, improving efficiency and accuracy. Typical applications include computers, modems, microprocessors, communication devices, and test equipment where precise timing and frequency stability are critical.
Operates at 25 MHz with ±20 ppm frequency tolerance. Compact dimensions allow for use in space-constrained circuit designs. Seam sealed ceramic package enhances durability and reliability. Manufactured for RoHS compliance ensuring environmental standards.
Tape & reel packaging enables efficient automated assembly.
EnvMart customers seeking reliable, high-precision crystal units for industrial and commercial applications will benefit from this Abracon ABMM2-25.000MHZ-D1-T 25 MHz Crystal Unit Surface Mount 4-Pin, suitable for demanding electronics manufacturing environments.
