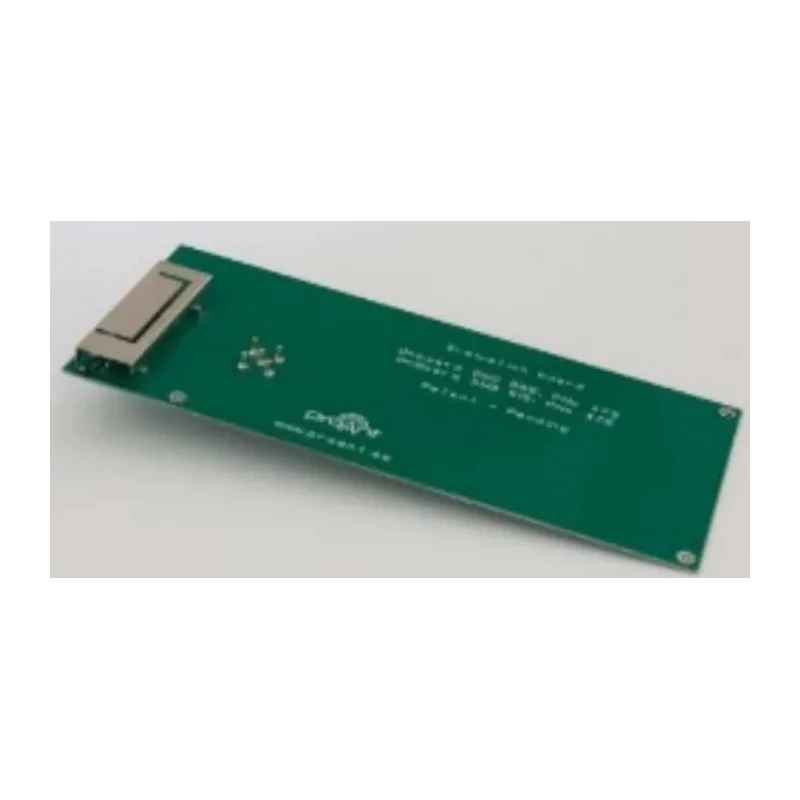

Abracon OnBoard 868 MHz LoRa Evaluation Board PRO-EB-472 with SMD 868/915 MHz Antenna 868 MHz

Abracon PRO-EB-472 LoRa Evaluation Board is designed to support engineering evaluation of an OnBoard SMD 868/915 MHz antenna optimized for 868 MHz frequency operation. The board offers a typical frequency range of 860 to 870 MHz, making it suitable for Low Power Wide Area (LPWA), LoRa, SigFox, and Industrial, Scientific, and Medical (ISM) wireless applications.

The evaluation board features a high-performance on-board antenna with mixed linear polarization, which achieves a peak gain of 1.7 dBi and efficiency exceeding 63%. These characteristics enable robust wireless communication capabilities, essential for development and testing environments requiring precise antenna calibration.

To ensure accurate measurement of antenna performance, users are instructed to calibrate a Vector Network Analyser (VNA) for the target frequency band and connect it via the supplied SMA connector on the evaluation board. This setup facilitates detailed testing and optimization of antenna parameters in laboratory and industrial development settings.

The PRO-EB-472 board supports engineers and developers in wireless communications, IoT, and embedded systems projects aiming for reliable RF connectivity over the 868 MHz band. Provides engineering evaluation of the on-board antenna for 868 MHz operation.

Typical operating frequency range from 860 to 870 MHz for LPWA, LoRa, SigFox, and ISM applications. Includes an SMA connector to connect with a calibrated Vector Network Analyser (VNA). Features mixed linear polarization with a peak gain of 1.7 dBi.

Efficiency greater than 63% for effective wireless communication performance. Designed to facilitate accurate performance testing and antenna calibration. Evaluation board suitable for wireless communication development and testing.

This evaluation board is an essential tool for engineers working in electronic development, industrial IoT, wireless sensor networks, and other RF application spaces. It is compatible with Abracon’s PRO-OB-471 featured device and is made to enhance wireless module and antenna performance understanding.
