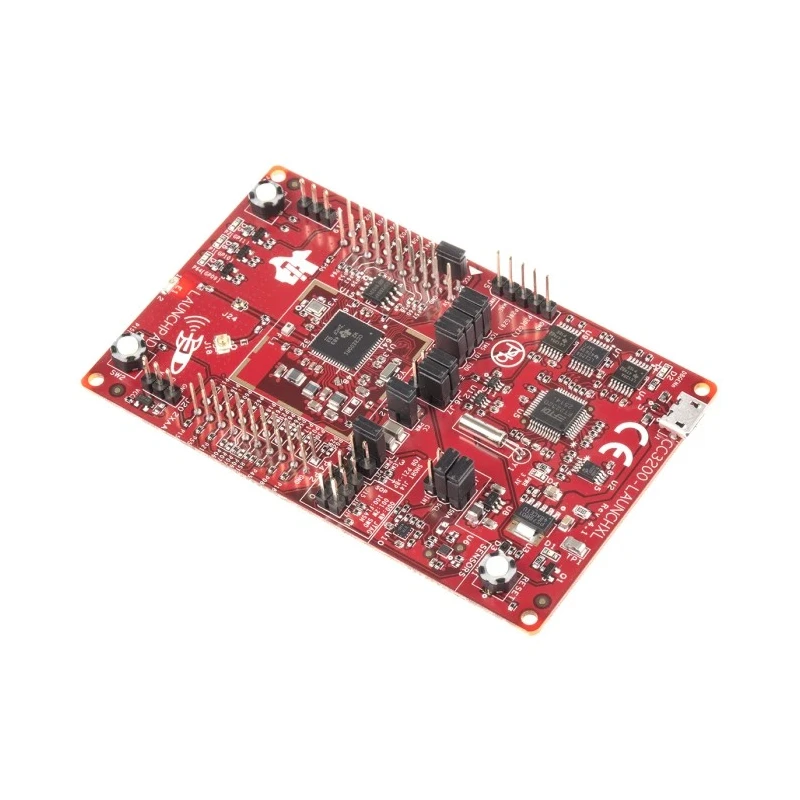

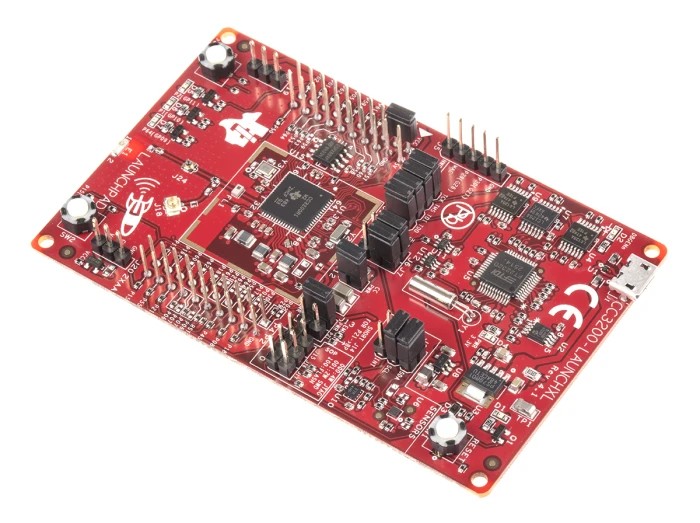

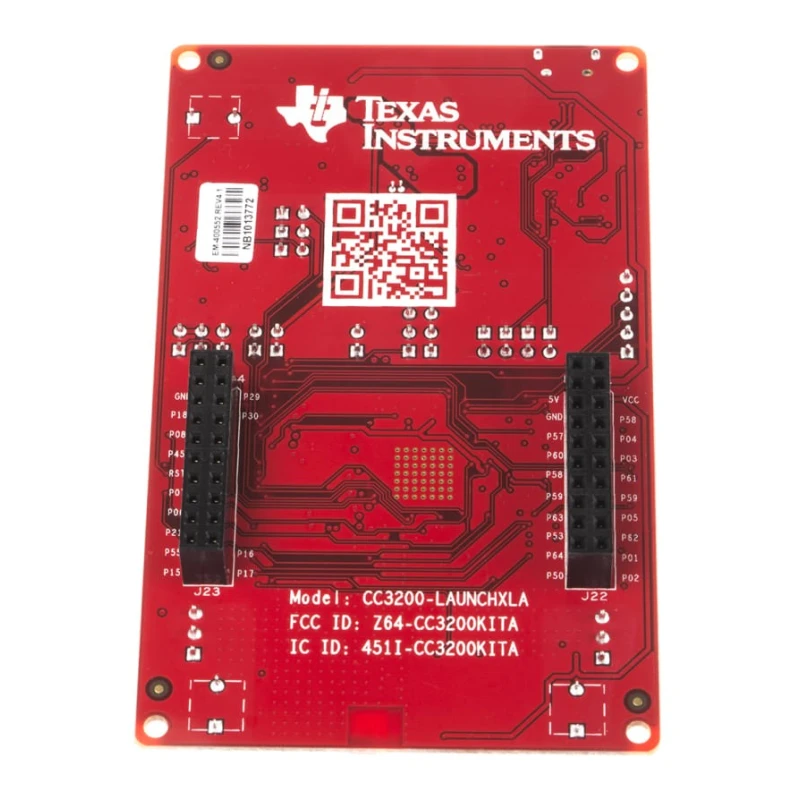

Texas Instruments SimpleLink LaunchPad CC3200 WiFi Evaluation Board 2.4 GHz CC3200-LAUNCHXL

Texas Instruments CC3200-LAUNCHXL is a SimpleLink Wi-Fi LaunchPad evaluation board operating at 2.4 GHz designed for wireless microcontroller development. This evaluation kit integrates the CC3200 Wi-Fi MCU providing a single-chip programmable solution with built-in Wi-Fi connectivity for advanced IoT applications and wireless communication projects.

The board features a USB interface for seamless connection to PCs using Code Composer Studio (CCS) and IAR Embedded Workbench development environments. It includes an on-board FTDI device for emulation, along with sensors, LEDs, and push-buttons, enabling a full out-of-the-box experience.

The power supply options include USB powering as well as operation from 2 AA alkaline batteries, providing flexibility for portable and embedded designs. The board also features an on-board antenna with the option to select a U.FL connector through a capacitor re-work, enhancing wireless performance and testing capabilities.

Development is further facilitated by support for 4-wire JTAG and 2-wire SWD programming and debugging interfaces, alongside GNU debugger support over the Open On-chip Debugger (OpenOCD). This equips developers with versatile debugging tools for in-depth firmware optimization.

The included software development kit (SDK) offers more than 40 application examples covering Wi-Fi protocols, internet applications, and MCU peripheral usage to accelerate project development and prototyping.

The CC3200-LAUNCHXL is compatible with other Texas Instruments LaunchPads through two 20-pin connectors, allowing addition of BoosterPack modules for extended functionality. This evaluation board integrates the CC3200 Wi-Fi wireless microcontroller with built-in connectivity.

USB interface supports programming and debugging with CCS and IAR toolchains. On-board sensors, LEDs, and push-buttons offer immediate functional testing options. Includes on-board antenna and selectable U.FL connector for flexible RF configuration.

Supports 4-wire JTAG and 2-wire SWD debugging, enhancing development flexibility. Operates from USB power or 2 AA alkaline batteries, providing versatile powering options. Compatible with other TI LaunchPads via two 20-pin connectors for expandability.

This product is ideally suited for industrial, laboratory, educational, IoT prototyping, and wireless communication development applications. It provides a comprehensive platform to develop and test Wi-Fi based embedded systems with advanced MCU features.
