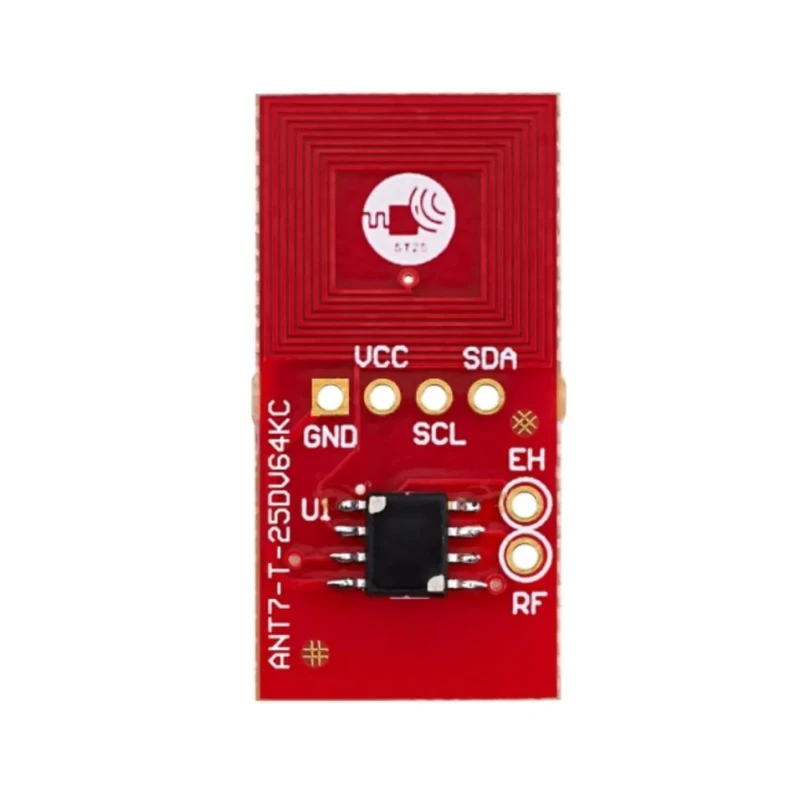

STMicroelectronics Antenna Reference Board Antenna Design Evaluation Board for ST25DV64KC dual interface ANT7-T-25DV64KC
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | ANT7-T-25DV64KC |
| Technology | EEPROM |
| For Use With | ST25DV64KC dual interface EEPROM |
| Maximum Frequency | 13.56MHz |
| Kit Classification | Antenna Board |
| Kit Name | Antenna Reference Board |
| RF Technology | Antenna Design |
Key Features
- The board features a 14 mm x 14 mm etched RF double layer antenna for efficient signal transmission.
- Supports I²C bus connectivity with dedicated test points for easy interface debugging.
- Includes RF event configurable options for flexible operation.
- Analog energy harvesting output available for power management applications.
- Designed for development and testing in communication and wireless systems.
- Ideal for use in industrial, commercial, and educational development environments.
- Kit classification as an Antenna Board evaluation tool for EEPROM systems.
Product Description
STMicroelectronics ANT7-T-25DV64KC Antenna Reference Board is a specialized evaluation board designed to support the ST25DV64KC dual interface EEPROM at 13.56 MHz frequency. This ready-to-use PCB integrates a 14 mm x 14 mm etched RF double layer antenna on one side, providing reliable and efficient antenna performance for NFC and RFID applications.
The opposite side of the board is connected to an I²C bus interface, with test points available to facilitate functional testing and development. This antenna board also features configurable RF event options allowing developers to tailor the board operation to specific use cases. Additionally, the board provides an analog energy harvesting output, presenting opportunities for low-power wireless energy applications.
This Evaluation Board is particularly useful in the development and debugging of communication equipment, wireless sensor systems, and other embedded electronics requiring EEPROM integration. It is widely applicable in industrial tools, laboratory setups, manufacturing environments, and STEM education development platforms.
The board measures 14 mm x 14 mm antenna size, enabling compact design integration. Utilizes EEPROM technology specific to the ST25DV64KC dual interface. Operates at a maximum frequency of 13.56 MHz suitable for NFC applications.
Includes I²C test points for easy connectivity and data monitoring. RF event configurable for adaptable wireless communication testing. Provides analog energy harvesting output for power management solutions. Kit classification: Antenna Board, designed as an evaluation and development tool.
The STMicroelectronics ANT7-T-25DV64KC Antenna Reference Board delivers a robust solution for engineers and developers focusing on communication and wireless development tools. It supports efficient antenna design and ensures compatibility with widely used EEPROM technology for NFC and RFID applications.
Explore more in EnvMart's Communication & Wireless Development Tools category for compatible development boards and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ANT7-T-25DV64KC operates at a maximum frequency of 13.56 MHz, suitable for NFC applications.
This antenna board is designed for use with the ST25DV64KC dual interface EEPROM.
The antenna measures 14 mm x 14 mm, providing a compact design for integration.
It supports I²C bus connectivity, with dedicated test points for easy interface debugging.
The kit is classified as an Antenna Board, specifically designed for evaluation and development purposes.
It is particularly useful in the development and debugging of communication equipment, wireless sensor systems, and embedded electronics requiring EEPROM integration.
Yes, it includes an analog energy harvesting output, which is useful for low-power wireless energy applications.
The ANT7-T-25DV64KC is manufactured in India.
It utilizes EEPROM technology specific to the ST25DV64KC dual interface.
It is suitable for use in industrial, commercial, and educational development environments.
Yes, the board features dedicated test points that facilitate functional testing and development.
