STMicroelectronics Evaluation Board for STUSB4500 USB Power Delivery Controller with L7985 Step-Down STEVAL-ISC005V1

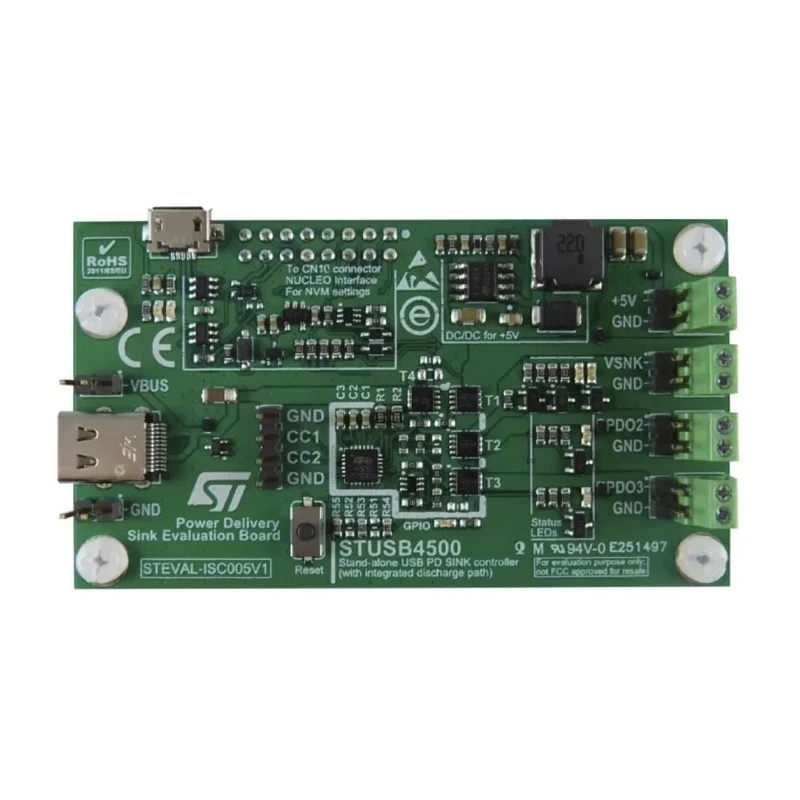

STMicroelectronics STEVAL-ISC005V1 is an advanced evaluation board designed specifically for the STUSB4500 USB Power Delivery Controller. This communication and wireless development tool kit provides a ready-to-use USB PD sink solution integrated with an L7985 device that performs step-down DC-DC conversion from the negotiated VBUS sink input voltage to a regulated 5V output. This regulated output can be used to power MCU evaluation boards or other systems, making it suitable for engineering development, prototyping, and testing.

The evaluation board supports the latest USB Power Delivery standards, including USB PD revision 3.0 and USB Type-C (rev 1.2), offering robust and flexible power management and delivery options. Safety is paramount with built-in short-to-VBUS protections on the CC and VBUS pins, preventing overvoltage damage by limiting the CC pins up to 22V and the VBUS pins up to 28V.

This board supports up to 3 power data objects (PDOs), allowing multiple power contract profiles to be negotiated between the sink and source devices. Engineers can customize startup profiles to tailor power delivery behavior based on application requirements.

The device interfaces include USB 3.1, USB Type-C, and I2C, ensuring compatibility with a wide range of platforms and enabling smooth integration in development environments. Additionally, the board is CE certified and meets CHINA RoHS and RoHS compliance standards, assuring environmental and safety regulations adherence.

For expanded functionality, it is compatible with the NUCLEO-F072RB development board which supports advanced configuration and debugging features, facilitating seamless development workflows for USB PD applications.

Overall, the STEVAL-ISC005V1 evaluation board provides an industrial-grade solution for engineers and developers working on USB Power Delivery systems, embedded applications, and energy-efficient designs across communication, manufacturing, and electronics industries.

The Evaluation Board manages USB PD negotiation enabling multiple charging paths. On-board L7985 step-down DC-DC converter outputs regulated 5V supply. Provides short-to-VBUS protection on CC pins (22V) and VBUS pins (28V).

Supports up to 3 power data objects for flexible power delivery. Interfaces include USB 3.1, USB Type-C, and I2C for versatile connectivity. Compliant with USB PD revision 3.0 and CE certified. Customizable startup power delivery profiles.

Compatible with NUCLEO-F072RB for configuration and debugging. RoHS and CHINA RoHS certified for environmental safety. Manufactured in Italy to high quality standards. Explore the full range of communication and wireless development tools on EnvMart for diverse industrial, laboratory, and commercial applications.
