STMicroelectronics Low Data Rate Transceiver Daughterboard Sub GHz Evaluation Board SPI Interface 169MHz STEVAL-IKR002V1

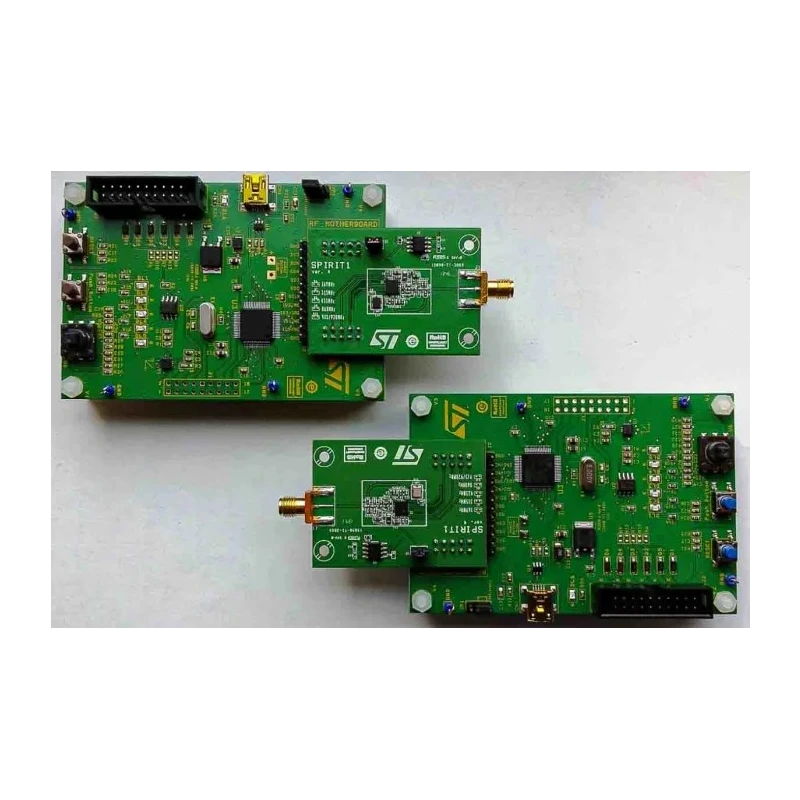

STMicroelectronics STEVAL-IKR002V1 is a low data rate transceiver daughterboard evaluation kit tailored for RF wireless applications operating within the sub-GHz band at 169 MHz frequency. This evaluation board kit is equipped with 2 SPIRIT1 low power, sub-GHz RF transceiver daughterboards designed for ISM bands and 2 STM32L microcontroller-based motherboards which manage the transceiver functionalities.

The kit supports a wide array of modulation schemes including 2-FSK, GFSK, MSK, GMSK, OOK, and ASK, enabling flexible and efficient RF communication setups. Air data rates can be configured from 1 to 500 kbps to suit diverse wireless communication requirements.

Power consumption is optimized with only 9 mA in receive mode and 21 mA in transmit mode at +11 dBm output power, ensuring extended battery life in portable applications. Additionally, receiver sensitivity is exceptional, achieving up to -120 dBm for reliable signal reception.

The evaluation board incorporates an AES 128-bit encryption co-processor to maintain high security data transmissions. Automatic protocol handling includes acknowledgment, retransmission, and timeout engine capabilities, improving reliability in wireless communication.

Connectivity to a PC environment is streamlined via a USB interface and a GUI-enabled debugging connector is provided to facilitate firmware development and testing using the included SPIRIT1 software development kit with detailed documentation.

This development kit is RoHS compliant and is manufactured in Italy, reflecting quality standards and environmental compliance. It is ideal for applications in industrial, scientific, and commercial RF wireless communication development, prototyping, and testing.

This evaluation kit contains 2 SPIRIT1 RF transceiver daughterboards and 2 STM32L microcontroller motherboards. Supports a broad range of modulation schemes for versatile RF applications. Offers very low power consumption in both receive and transmit modes.

Equipped with AES 128-bit encryption for secure wireless communications. Includes USB interface and GUI debug tools for ease of development. Perfect for RF wireless applications in sub-GHz ISM bands at 169 MHz. Explore the extensive range of communication and wireless development tools available at EnvMart to complement this Evaluation Board.
