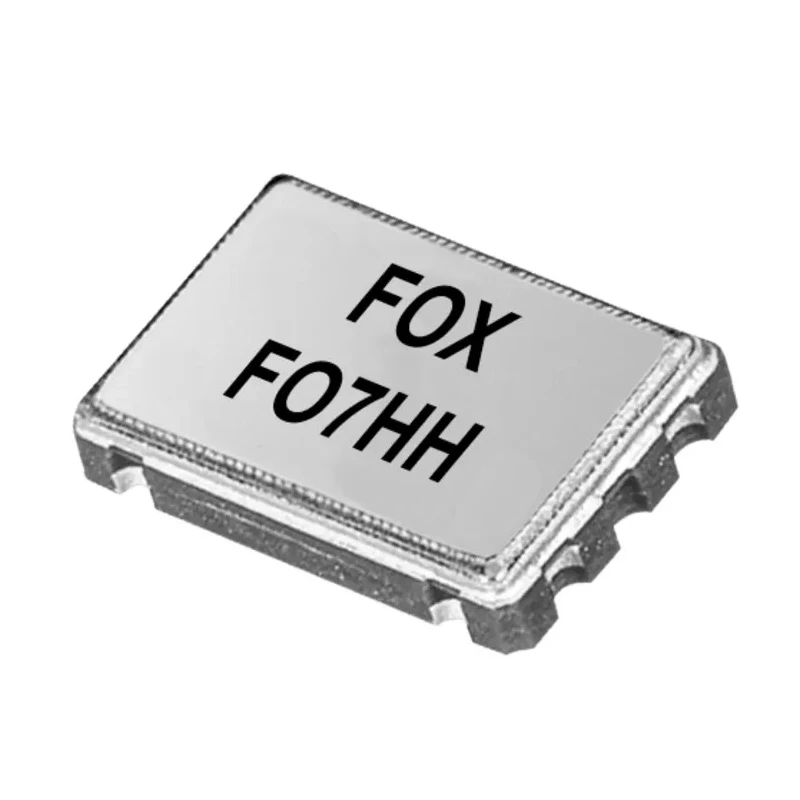

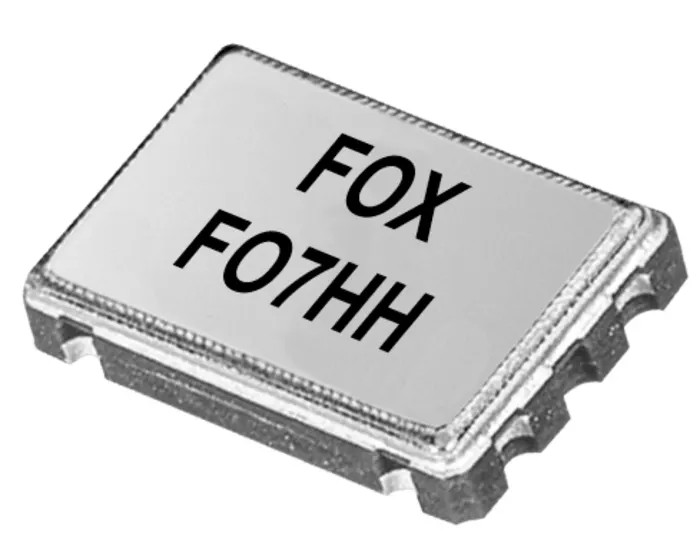

Abracon 16MHz Crystal Oscillator, ±20 ppm HCMOS, 4-Pin Surface Mount FO7HHAAE16.0-T1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 5mm |
| Length | 7mm |
| Model | FO7HHAAE16.0-T1 |
| Packaging | Tape & Reel |
| Width | 5.2mm |
| Mount Type | Surface |
| Series | FO7HH |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 16MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 5V |
| Oscillator Type | Crystal Oscillator |
| Output Level | HCMOS |
Key Features
- Operates on a maximum supply voltage of 5V.
- Surface mount design with 4-pin configuration.
- Suitable for operating temperatures from -40°C to 85°C.
- Output level is HCMOS suitable for modern digital circuits.
- Compact dimensions of 7mm length, 5.2mm width, and 5mm height.
- RoHS compliant ensuring lead-free and environmentally friendly construction.
- Stable frequency range covering 1 to 125MHz applications.
- Lead (Pb) free with seam seal method for durability.
Product Description
Abracon FO7HHAAE16.0-T1 is a 16MHz crystal oscillator featuring high stability of ±20 ppm and superior performance for electronic applications requiring precise frequency control. Equipped with a HCMOS output and a 4-pin surface mount package, it supports operating temperatures ranging from -40°C to 85°C and a maximum supply voltage of 5V, making it ideal for a wide range of industrial and commercial electronic devices.
This oscillator complies with RoHS standards, ensuring it is lead (Pb) free and environmentally compliant. The compact 7mm by 5.2mm by 5mm package allows for efficient PCB layout in advanced electronic designs. Its tape and reel packaging facilitates automated assembly in manufacturing settings.
The FO7HHAAE16.0-T1 operates over a frequency range from 1 to 125MHz, with a start-up time of just 10 milliseconds, ensuring quick responsiveness in time-sensitive applications. The output load is optimized for 50 pF typical HCMOS input characteristics. It is sealed by the seam method enhancing long-term reliability.
Designed for mounting directly on surfaces, it supports soldering up to 260°C with a maximum soldering time of 10 seconds applied twice, suitable for standard PCB assembly processes. Its robust construction without automotive certification targets general industrial, telecommunications, computing, and consumer electronics sectors requiring stabilized clock generation and timing.
Operates over an extended temperature range from -40°C to 85°C. 4-pin surface mount construction eases integration into compact electronic devices. Maintains ±20 ppm frequency stability for dependable oscillation, minimizing frequency drift due to temperature fluctuations.
Supports maximum supply voltage of 5V with low power consumption. RoHS compliant and lead-free, meeting global environmental standards. Explore the broad range of Crystal Oscillators and electronic components on EnvMart to optimize your circuit designs with quality and trusted performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 16MHz.
It operates with a maximum supply voltage of 5V.
This oscillator can operate within a temperature range of -40°C to 85°C.
It provides an HCMOS output level, suitable for modern digital circuits.
The dimensions are 7mm in length, 5.2mm in width, and 5mm in height.
It is packaged in tape and reel format, facilitating automated assembly processes.
This crystal oscillator has a pin count of 4.
The typical output load is optimized for 50 pF, suitable for HCMOS input characteristics.
It complies with RoHS standards, ensuring it is lead-free and environmentally friendly.
The startup time is just 10 milliseconds, allowing for quick responsiveness.
It features a surface mount design, making it suitable for compact electronic devices.
It is suitable for industrial, telecommunications, computing, and consumer electronics sectors requiring stabilized clock generation and timing.
