Epson 32.768 kHz Crystal Oscillator Surface Mount 4-Pin 7pF Load Capacitance 6.7 mm x 1.5 mm x 1.4 mm Q13MC1461000111

The Epson Q13MC1461000111 is a high-precision 32.768 kHz crystal oscillator designed for surface mount applications. Featuring a 4-pin configuration and compact dimensions of 6.7 mm x 1.5 mm x 1.4 mm, this crystal provides reliable, stable oscillation at a standard frequency ideal for real-time clock (RTC) circuits and timing devices.

This crystal offers a ±20 ppm frequency tolerance and frequency stability, which ensures accuracy in timekeeping and synchronization over the operating temperature range of -40°C to 85°C. Its load capacitance is rated at 7 pF, and it has a series resistance of 65 kΩ to optimize circuit performance and minimize energy consumption.

The surface mount package allows easy insertion into automated assembly lines, improving production efficiency. Applications for the Q13MC1461000111 include embedded systems, automotive electronics (non-automotive standard), and consumer electronics requiring precision timing sources.

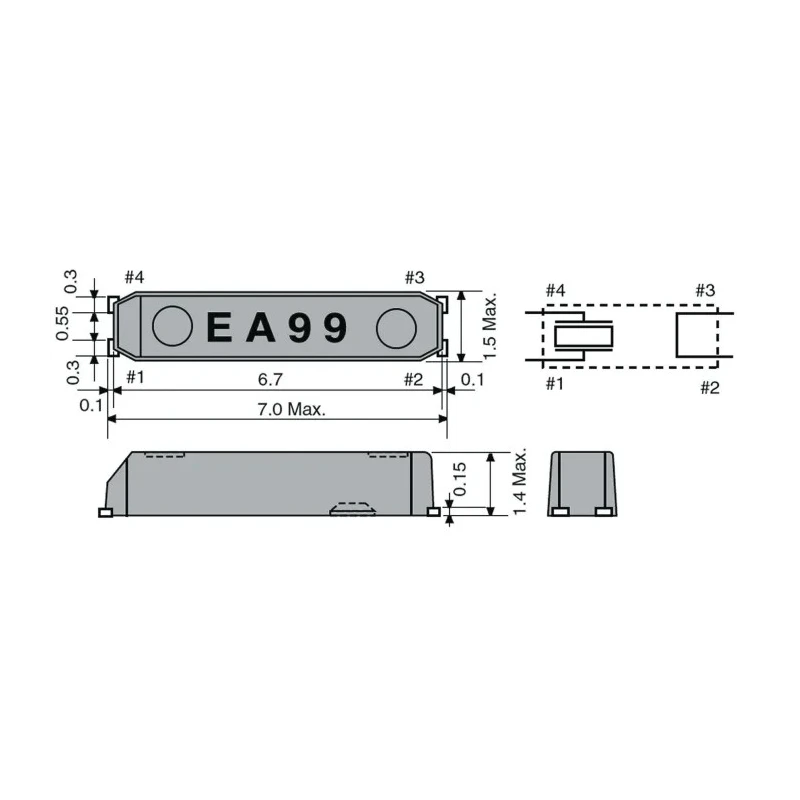

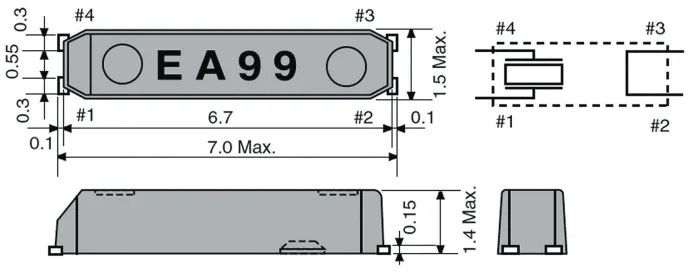

Provides stable oscillation frequency of 32.768 kHz. Surface mount package with compact dimensions of 6.7 mm length, 1.5 mm width, and 1.4 mm height. ±20 ppm frequency tolerance and stability ensure precision timing applications.

Operating temperature range from -40°C to 85°C for reliable performance. 4 pin configuration suitable for automated PCB mounting. Series resistance of 65 kΩ minimizes power loss. Compliant with RoHS and REACH environmental standards.

Explore the comprehensive range of Crystal Oscillators and related components at EnvMart for industrial, laboratory, and commercial electronics applications.
