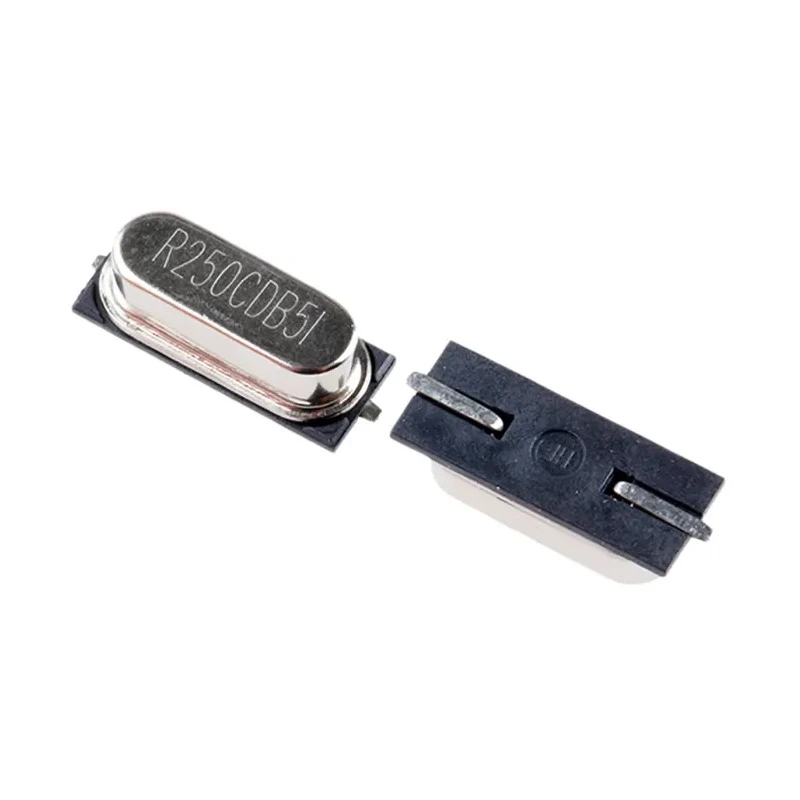

RALTRON 70MHz Crystal Oscillator ±50 ppm Load 32pF 2-Pin Surface Mount HC-49 AS-25.000-18-SMD

Free Delivery in India | Lowest Global Shipping Charges

RALTRON 70MHz Crystal Oscillator ±50 ppm Load 32pF 2-Pin Surface Mount HC-49 AS-25.000-18-SMD

Name: RALTRON 70MHz Crystal Oscillator ±50 ppm Load 32pF 2-Pin Surface Mount HC-49 AS-25.000-18-SMD
Brand: Raltron
SKU: 427075
Price: 0.36 USD
Availability: InStock



Category Crystal Oscillator Brand Raltron Condition New

Specifications

Country of Origin	China
Brand	RALTRON
Height	4.6mm
Length	12mm
Model	AS-25.000-18-SMD
Width	4.8mm
Mount Type	Surface
Series	AS-SMD
Maximum Operating Temperature	70°C
Output Frequency	70MHz
Package Type	HC-49
Minimum Operating Temperature	-20°C
Standards/Approvals	RoHS
Pin Count	2
Load Capacitance	32pF
IQD 25MHz Crystal ±30ppm HC-49-4H-SMX 2-Pin 11.05 x 4.7 x 4mmBrand	IQD
Abracon 25MHz Crystal ±20ppm HC-49-US SMD 2-Pin 11.5 x 4.7 x 4.2mmBrand	Abracon

Key Features

Operates at an output frequency of 70MHz for high-speed circuit requirements.
Features a load capacitance of 32pF to ensure accurate oscillation.
Packaged in a compact HC-49 surface mount type with 2 pins suitable for PCB mounting.
Operational temperature range from -20°C to 70°C supports varied environmental conditions.
Complies with RoHS standards ensuring environmental safety.
Series designation AS-SMD designed for reliable surface mount assembly.
Manufactured in China with consistent quality control.
Ideal for use in industrial, laboratory, telecommunications, and consumer electronics circuits.

Product Description

The RALTRON AS-25.000-18-SMD crystal oscillator is engineered to provide stable frequency output at 70MHz with a frequency stability of ±50 ppm, suitable for demanding timing circuits in electronic devices.

Encased in a HC-49 surface mount package with 2 pins, this oscillator offers easy PCB mounting and integration into electronic assemblies. Its 32pF load capacitance supports precise oscillation performance essential in RF and digital applications.

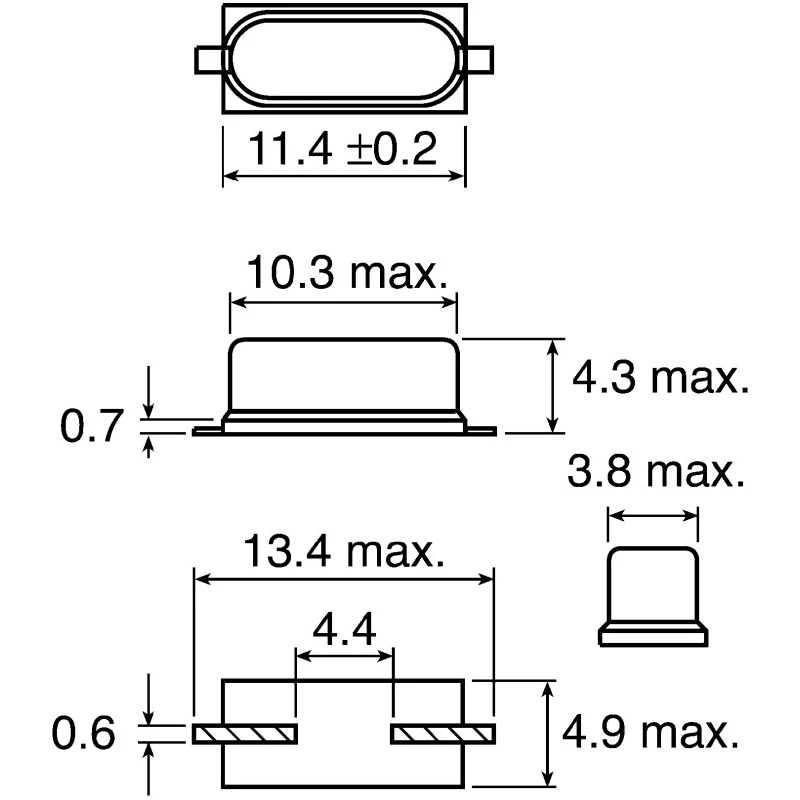

This component operates reliably within a temperature range of -20°C to 70°C, making it suitable for a wide variety of industrial and commercial environments. The compact footprint dimensions of 12 x 4.8 x 4.6 mm further simplify its incorporation into tight spaces.

RALTRON's crystal oscillator meets RoHS compliance standards, ensuring it meets environmental protection requirements. The product series AS-SMD is tailored for surface mount technology, enabling automated assembly and cost-effective mass production.

Operates at 70MHz output frequency with ±50 ppm stability. 32pF load capacitance supports accurate oscillation. Surface mount HC-49 package with 2-pin configuration. Temperature range from -20°C to 70°C for versatile applications.

Compact dimensions of 12 x 4.8 x 4.6mm. RoHS compliant for environmentally friendly manufacturing. AS-SMD series designed for surface mount assembly.

This crystal oscillator is widely applicable in industrial electronics, telecommunications hardware, digital systems, and laboratory instrumentation, providing dependable timing control and frequency generation. Its robust specifications ensure durability and performance consistency critical in precision electronic components.
