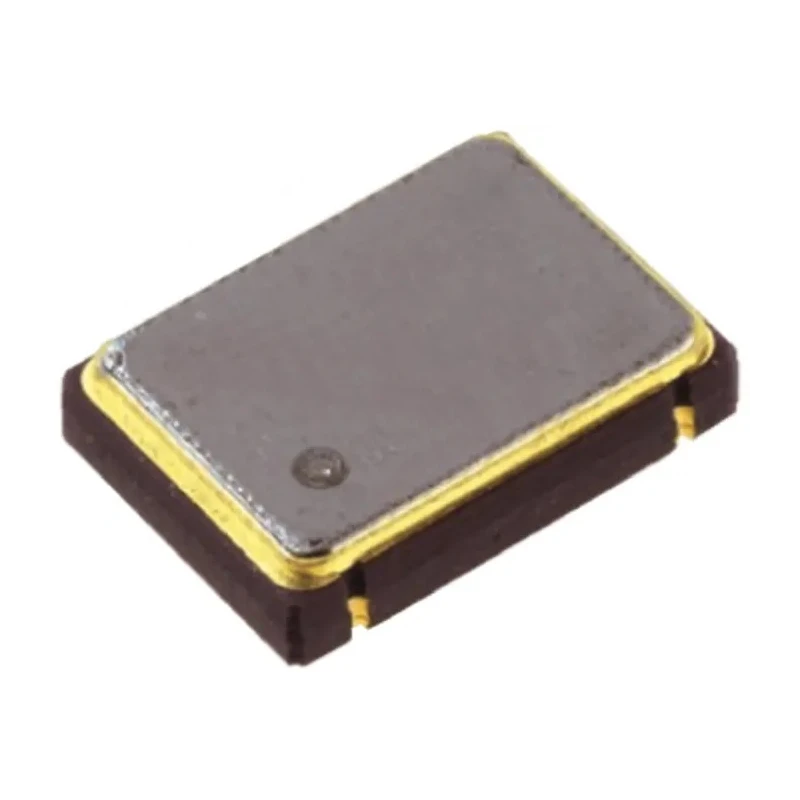

RALTRON 24MHz Clock Oscillator ±50 ppm CMOS TTL 4-Pin Surface Mount CO4305-24.000-EXT
Specifications
| Country of Origin | China |
|---|---|
| Brand | RALTRON |
| Height | 1.8mm |
| Length | 7mm |
| Model | CO4305-24.000-EXT |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 24MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 707-9662Brand: RALTRONManufacturers Part No.: CO4305-24.000-EXT |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.3V |
| Load Capacitance | 20pF |
| Oscillator Type | Clock |
| Output Level | CMOS, TTL |
Key Features
- Oscillator provides a 24MHz output frequency suitable for precision timing.
- Features ±50 ppm frequency stability ensuring reliable performance.
- Output levels compatible with CMOS and TTL logic families.
- Packaged in a compact 4-pin surface mount 7mm x 5mm ceramic case.
- Operates over a wide temperature range from -40°C to 85°C.
- Maximum supply voltage rating of 3.3V for low-power applications.
- Load capacitance of 20pF optimized for stable oscillation.
- Ideal for electronic designs requiring precise clock timing in industrial applications.
Product Description
RALTRON CO4305-24.000-EXT is a 24MHz clock oscillator designed for applications requiring accurate timing and frequency stability. Featuring ±50 ppm frequency tolerance, this oscillator delivers a stable and consistent output signal compatible with both CMOS and TTL logic. The device comes in a 4-pin surface mount ceramic package measuring 7mm x 5mm, enabling compact PCB designs with automated assembly capabilities.
Designed to operate across a temperature range of -40°C to 85°C and powered by a maximum of 3.3V supply voltage, it suits demanding industrial, commercial, and laboratory electronic circuits. The 20pF load capacitance specification ensures the oscillator maintains frequency precision under varying load conditions. Its tape and reel packaging format facilitates efficient high-volume manufacturing processes.
This oscillator is ideal for use in embedded systems, communication devices, instrumentation, and other electronics requiring a reliable timing reference. The solid ceramic case provides mechanical stability and enhanced environmental resistance.
Provides 24MHz stable clock output frequency. ±50 ppm frequency stability for accurate timing. CMOS and TTL output compatibility. Compact 4-pin surface mount 7x5 mm ceramic case. Wide operating temperature from -40°C to 85°C.
Low supply voltage of maximum 3.3V. Load capacitance of 20pF for frequency stability. Tape and reel packaging supports automated assembly. Suitable for industrial, laboratory, and commercial electronics. Manufactured in China ensuring consistent quality.
Explore the extensive range of crystal Oscillators and electronic components available at EnvMart for your industrial and precision timing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The oscillator provides a stable output frequency of 24MHz.
It features a frequency stability of ±50 ppm, ensuring reliable performance in timing applications.
The output levels are compatible with both CMOS and TTL logic families.
The maximum supply voltage rating is 3.3V, making it suitable for low-power applications.
It has a load capacitance of 20pF, optimized for stable oscillation.

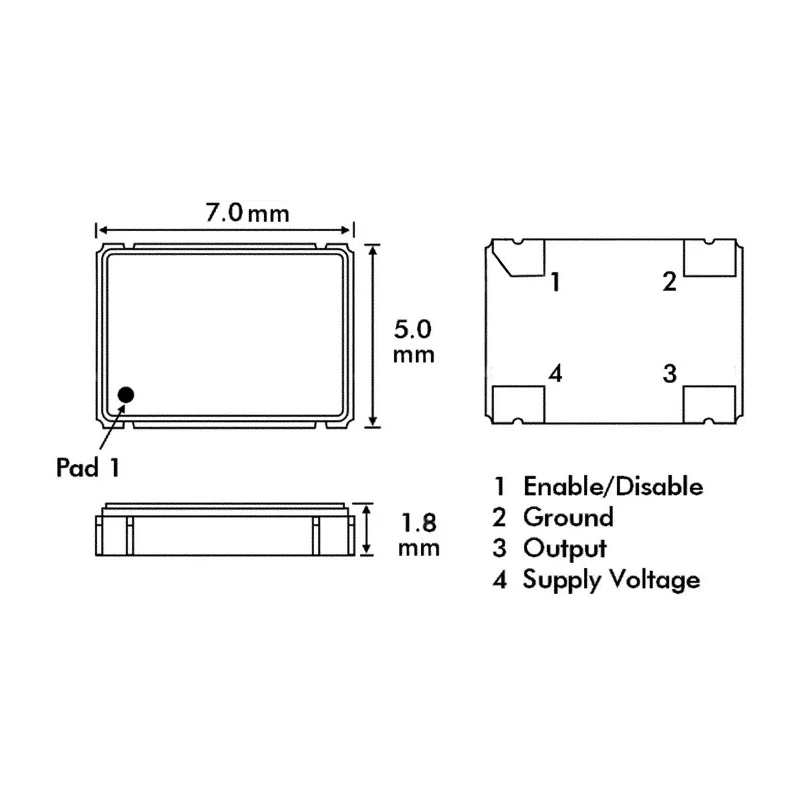

The oscillator is packaged in a compact 4-pin surface mount case measuring 7mm x 5mm x 1.8mm.
It operates over a wide temperature range from -40°C to 85°C.
It is packaged in tape and reel format, which supports efficient automated assembly processes.
This model is a clock oscillator designed for applications requiring accurate timing and frequency stability.
It is suitable for use in embedded systems, communication devices, instrumentation, and other electronics requiring a reliable timing reference.
The oscillator features a pin count of 4, suitable for surface mount applications.
It is manufactured in China, ensuring consistent quality in production.
