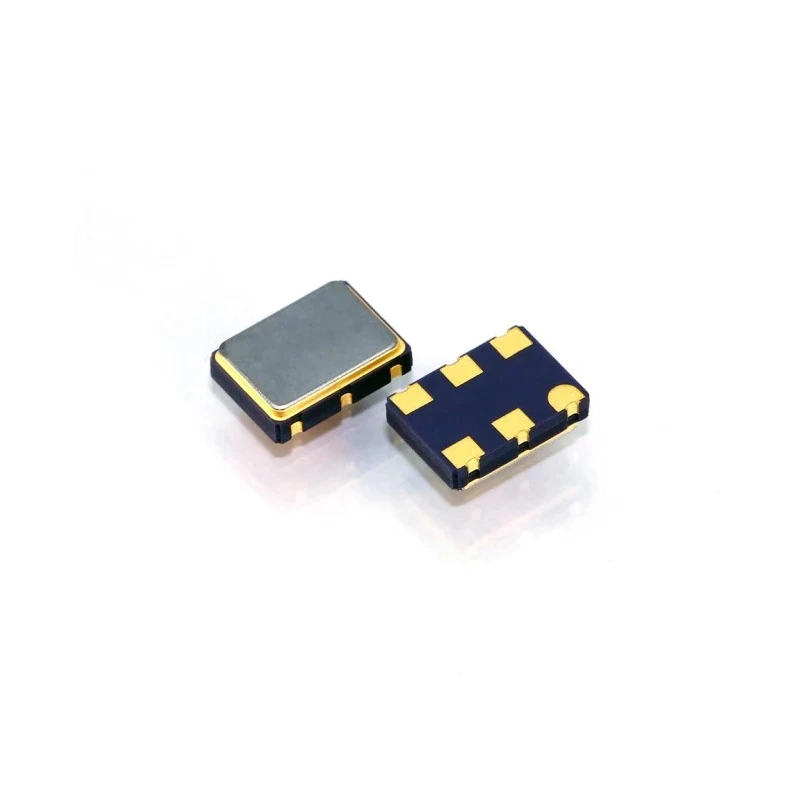

Ecliptek 77.76MHz 50 ppm CMOS Surface Mount Oscillator EV32C6A5A1-24.576M TR
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | Ecliptek |
| Operating Temperature | 0°C to 70°C |
| Package | 4-SMD, No Lead |
| Height | 1.65mm |
| Length | 7mm |
| Model | EV32C6A5A1-24.576M TR |
| Mounting Type | Surface Mount |
| Width | 5mm |
| Mount Type | Surface |
| Output type | CMOS |
| Series | EV32C6 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 77.76MHz |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | CHINA RoHS, SVHC, REACH, EU RoHS |
| Pin Count | 6 |
| Minimum Supply Voltage | 3.3V |
| Load Capacitance | 15pF |
| Output Level | CMOS |
Key Features
- Operates with a nominal voltage of 3.3 volts.
- Features a frequency stability of 50 ppm for precision timing.
- Outputs CMOS-level signals suitable for modern electronics.
- Designed for surface mount applications with a 4-SMD no lead package.
- Operates reliably from -40°C to 85°C ambient temperature range.
- Compact dimensions of 7mm length, 5mm width, and 1.65mm height.
- Includes 6 pins to interface with circuits efficiently.
- Complies with CHINA RoHS, SVHC, REACH, and EU RoHS environmental standards.
Product Description
Ecliptek EV32C6A5A1-24.576M TR is a high-performance CMOS surface mount oscillator providing a 77.76MHz output frequency with a frequency stability of 50 ppm. Operating at a nominal voltage of 3.3 volts, this device is engineered for precision timing applications in electronics, telecommunications, and industrial control systems.
Its compact 4-SMD no lead package with dimensions of 7mm length, 5mm width, and 1.65mm height facilitates easy surface mount installation on printed circuit boards. Featuring a robust temperature range from -40°C to 85°C, it suits use in demanding environmental conditions.
The 6-pin device outputs CMOS level signals and offers a load capacitance of 15pF, ensuring signal integrity and compatibility with modern digital electronics. This oscillator meets multiple environmental compliance standards including CHINA RoHS, SVHC, REACH, and EU RoHS, making it suitable for eco-conscious projects.
Applications span across industrial automation, communication equipment, laboratory instruments, and embedded system timing. Operates at nominal 3.3V supply voltage. Frequency stability of ±50 ppm ensures high accuracy. CMOS output level compatible with digital circuits.
Surface mount package for compact PCB layouts. Wide operating temperature range from -40°C to 85°C. Compliant with major environmental standards. Robust design for industrial and commercial use. Explore our comprehensive category of Oscillators at EnvMart for additional timing and frequency control solutions from Ecliptek and other trusted manufacturers.
