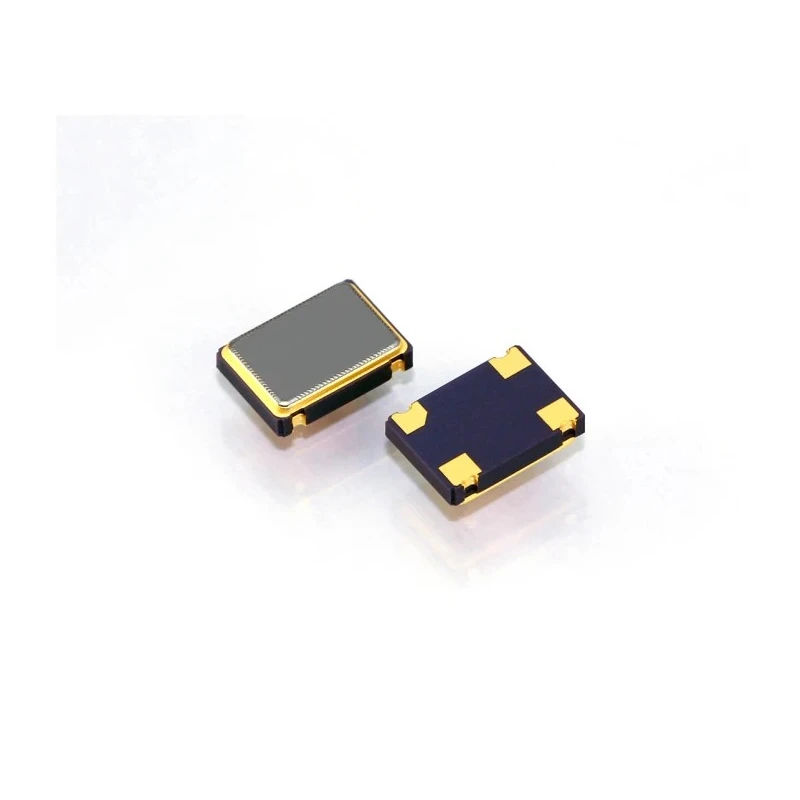

Ecliptek 12MHz XO CMOS Surface Mount Oscillator 4-Pin, 20 ppm Stability EC2620TS-12.000M TR

The Ecliptek EC2620TS-12.000M TR is a 12MHz XO (crystal oscillator) designed for precise frequency generation and stable timing in electronic circuits. Featuring a compact 4-pin surface mount device with CMOS output, it is engineered to provide a frequency stability of ±20 ppm, ensuring highly accurate signal output for industrial, laboratory, and commercial electronics applications.

This oscillator operates with a maximum supply voltage of 3.3V, offering efficient power consumption in low-voltage systems. Its rugged surface mount package (7mm length x 5mm width x 1.8mm height) allows for easy automated PCB mounting and integration.

Operating temperature range from -10°C to 85°C broadens its usability across diverse environmental conditions. The device incorporates standby (power down) functionality alongside a tri-state high impedance pin connection, improving system flexibility and power management.

Typically used in precision timing, clock generation, and frequency control within consumer electronics, communication equipment, and embedded systems. It comes packaged in Tape & Reel format, supporting mass production processes.

Operates at 12MHz with stable XO oscillator technology. Frequency stability of ±20 ppm for precise signal timing. CMOS output compatible with modern integrated circuits. Compact 4-SMD pin package with no leads for surface mounting.

Temperature operation range from -10°C to 85°C. Maximum operating voltage of 3.3V ensuring low power usage. Includes standby and tri-state high impedance features. Suitable for industrial, laboratory, and commercial electronics.

Manufactured in Korea, Republic Of, ensuring high-quality standards. Packaged in Tape & Reel for automated assembly in manufacturing. Explore more Ecliptek Oscillators and electronic components at EnvMart for your next project or repair requirements.
