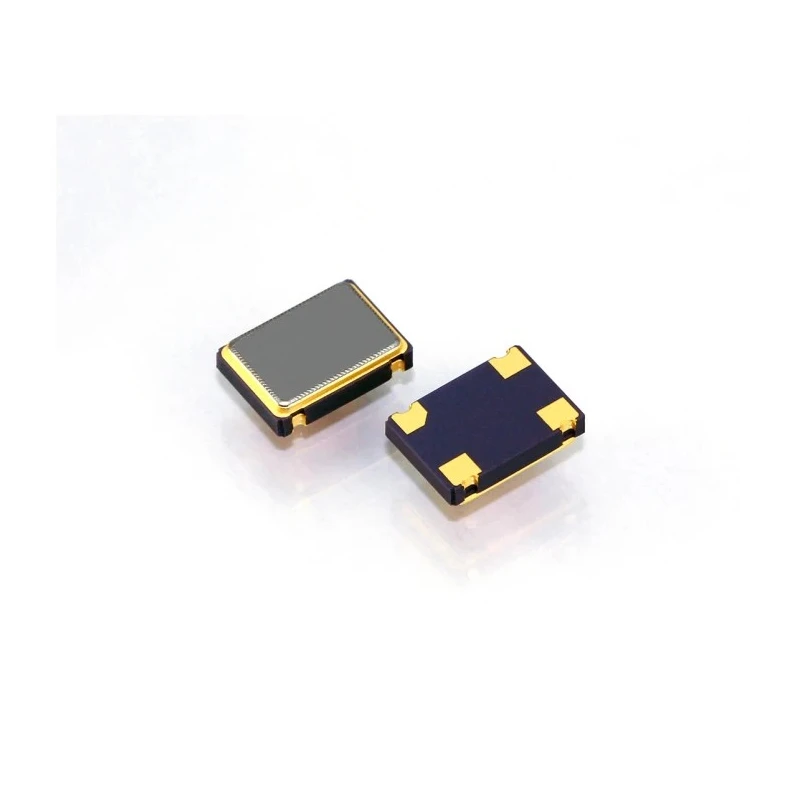

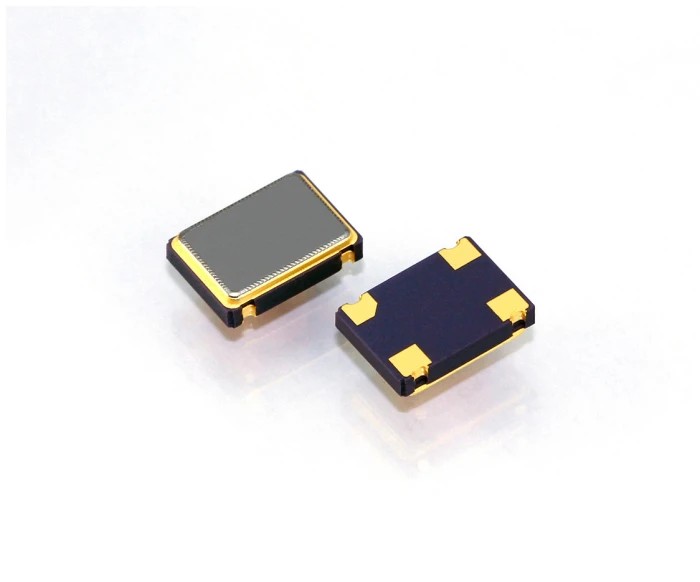

Ecliptek 24.576MHz XO Oscillator 20 ppm CMOS 4-Pin Surface Mount EC2620TS-24.576M TR

Ecliptek EC2620TS-24.576M TR is a high precision 24.576MHz XO oscillator featuring a 20 ppm frequency stability and CMOS output type. This compact oscillator is designed for surface mount technology (SMT) and includes 4 pins, making it ideal for modern PCB assembly and electronic applications.

Operating within a supply voltage maximum of 3.3V, it supports low power consumption environments. The oscillator withstands operating temperatures from -10°C up to 85°C, making it suitable for a variety of industrial, electronic, and communication equipment applications.

This model features a tri-state high impedance pin enabling a power down standby mode, effectively reducing power consumption when inactive. Supplied in tape and reel packaging, it is optimized for automated pick-and-place manufacturing processes.

The device dimensions are 7mm in length, 5mm in width, and 1.8mm in height, allowing compact integration into electronic circuits. The output level conforms fully to CMOS logic standards, enhancing compatibility across diverse systems.

Manufactured in the Republic of Korea, it adheres to strict quality standards ensuring reliable performance. Typical uses include clock generation, timing circuits, and synchronization in industrial, laboratory, and telecommunications equipment.

Operates at 24.576MHz frequency with ±20 ppm stability. 4-pin surface mount package suitable for SMT assembly. Supports operating temperatures from -10°C to 85°C. Lowest power standby mode available via tri-state pin. Compact 7x5x1.8 mm form factor for space-constrained designs.

Tape & reel packaging compatible with automated assembly. Maximum supply voltage of 3.3V ensures low power consumption. High compatibility via CMOS output level. Manufactured in Korea for performance and quality assurance.
