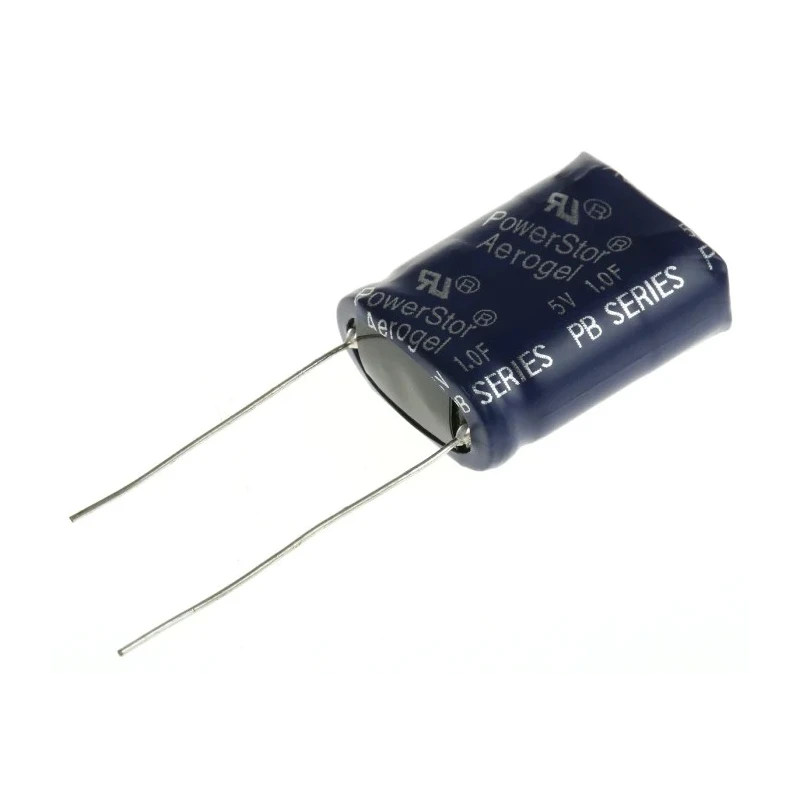

Eaton 1F Electric Double Layer Supercapacitor 5V DC Through Hole PB-5R0V105-R

Eaton PB-5R0V105-R is a 1 Farad electric double layer supercapacitor designed for advanced energy storage and power backup applications. This supercap operates at a nominal voltage of 5V DC and features a unique cylindrical cell design suitable for through hole mounting.

These capacitors utilize electrochemical double layer capacitor (EDLC) technology combined with high-performance materials to deliver ultra-high capacitance with low equivalent series resistance (ESR) of 500 milliohms. The low ESR enables high power density making it ideal for pulse power, memory backup, and energy harvesting circuits.

The device has positive polarity and comes with 2 pins with lead diameter of 0.5 mm and a lead pitch of 11.8 mm, enabling straightforward solder mounting on circuit boards. Its compact size with a height and depth of 14.5 mm ensures easy integration within limited PCB spaces.

This supercapacitor can operate efficiently within the temperature range of -25°C to 70°C and is rated for a lifetime of 1000 hours, ensuring reliable long-term performance. It complies with RoHS and UL standards, reflecting environmental and safety credentials.

The PB series (PowerStor) capacitors offered by Eaton deliver high energy density and rapid charge/discharge capabilities suitable for demanding industrial, automotive (non-automotive standard compliant here), telecommunication, and consumer electronic applications. Its through hole mounting and bulk packaging suit mass production modules and repair operations.

Capacitance of 1F provides substantial charge storage. 5V DC operating voltage supports a broad range of electronics. Through hole mount type offers robust mechanical stability. Low ESR minimizes energy losses during high current pulses.

Low leakage current increases overall reliability. Positive polarity for correct circuit alignment. Compliance with RoHS and UL standards. Package design promotes easy assembly and replacement. Wide operating temperature range for diverse environments.

Lifetime of 1000 hours suitable for industrial lifecycle requirements.

Suitable for OEMs, circuit designers, and manufacturing engineers looking for efficient energy storage components in power management, backup power, and smoothing circuits. Eaton’s PB-5R0V105-R supercapacitor integrates seamlessly into industrial, telecommunications, and electronic instrumentation devices enhancing performance and reliability.
