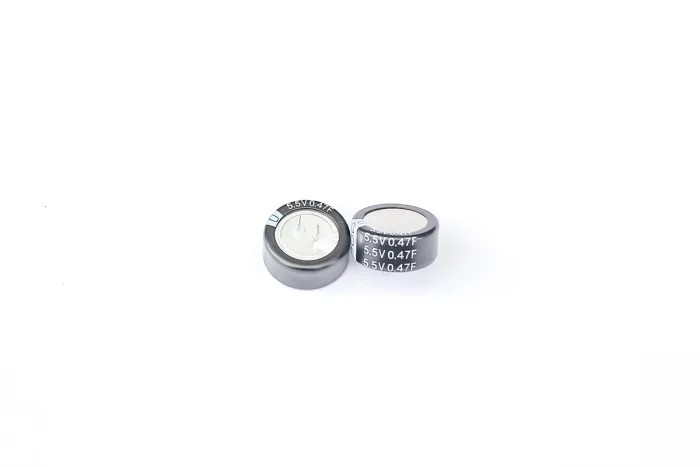

RS PRO 0.47F Electric Double Layer Supercapacitor 5.5V dc, -20 to 80 % Tolerance, PCB Mount 184-5027

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 0.47F Electric Double Layer Supercapacitor 5.5V dc, -20 to 80 % Tolerance, PCB Mount 184-5027

Name: RS PRO 0.47F Electric Double Layer Supercapacitor 5.5V dc, -20 to 80 % Tolerance, PCB Mount 184-5027
Brand: RS PRO
SKU: 421056
Price: 0.95 USD
Availability: InStock



Category Supercapacitor Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	5.5V dc
Diameter	20.5mm
Brand	RS PRO
Height	12.5mm
Model	184-5027
Mount Type	PCB
Series	RS PRO
Maximum Operating Temperature	70°C
Tolerance	-20 to 80 %
Lifetime	200000 Cycles
Capacitance	0.47F
Minimum Operating Temperature	-40°C
Polarity	Polar
Leakage Current	5μA
Pin Count	2
Lead Pitch	5mm
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Equivalent Series Resistance ESR	45mΩ
Capacitor Family	Electric Double Layer

Key Features

Tolerance range from -20% to 80% enables flexibility in applications.
Operates efficiently between temperatures of -40°C to 70°C.
Features a low leakage current of 5μA ensuring energy retention.
Compact dimensions with a diameter of 20.5mm and height of 12.5mm.
Equivalent series resistance (ESR) of 45mΩ for reliable performance.
Designed for industrial and electronic equipment applications.

Product Description

RS PRO 184-5027 is a 0.47F electric double layer supercapacitor designed for PCB mounting, rated at 5.5V dc voltage. This high-performance supercapacitor exhibits a tolerance range from -20% to 80%, enabling adaptability to diverse circuit requirements and ensuring operational stability under varying conditions.

The device operates reliably within a temperature window ranging from -40°C to 70°C, making it ideal for use in various industrial and electronic environments demanding robust thermal performance. Its compact form factor featuring a 20.5mm diameter and 12.5mm height allows flexible integration in tight PCB designs.

With a low leakage current of just 5μA, the supercapacitor effectively retains charge, making it suitable for energy storage and quick-charge applications. The ESR rating of 45mΩ minimizes power loss and enhances efficiency under load conditions.

This RS PRO series capacitor adheres to international standards including ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, assuring compliance with stringent electronic component safety and handling requirements. It supports advanced industrial uses such as UPS backup power supplies, motor drives, solar battery circuits, and electronic meters.

Tolerance range from -20% to 80% enables flexibility in applications. Operates efficiently between temperatures of -40°C to 70°C. Features a low leakage current of 5μA ensuring energy retention. Compact dimensions with a diameter of 20.5mm and height of 12.5mm.

Equivalent series resistance (ESR) of 45mΩ for reliable performance. Designed for industrial and electronic equipment applications. Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.

This supercapacitor is a critical component for industrial, electronic manufacturing, HVAC, and commercial electronics projects requiring stable, reliable energy storage solutions. For more high-quality Supercapacitors and electronic components, explore the full RS PRO range on EnvMart.
