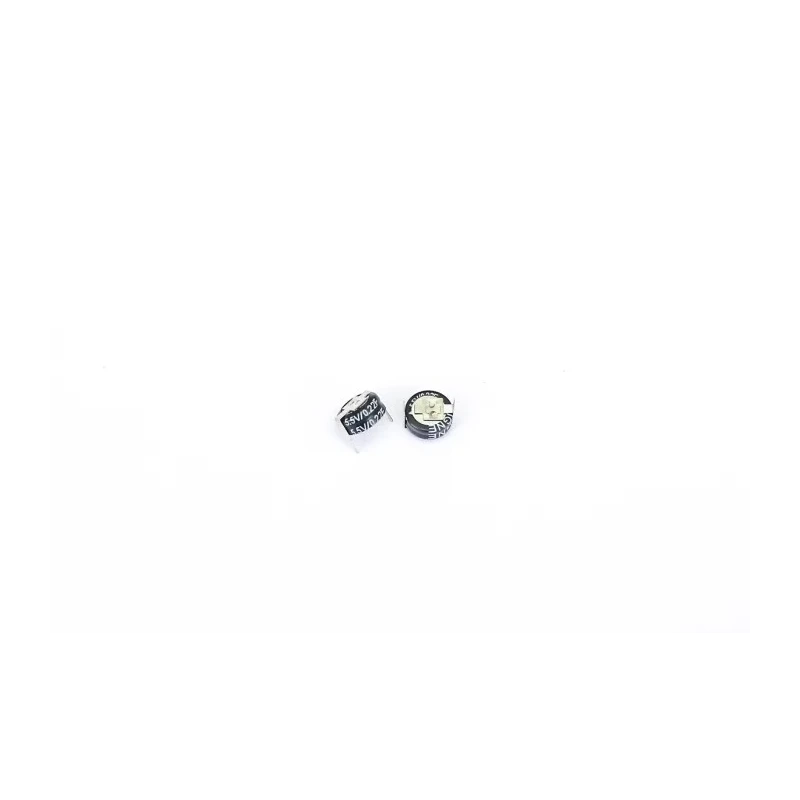

RS PRO 0.22 F 5.5V DC PCB Radial Supercapacitor -20 to 80 % Tolerance RS PRO

RS PRO 0.22 F 5.5V DC PCB Radial Supercapacitor from RS PRO is engineered for dependable energy storage in industrial and electronic applications. This Electric Double Layer Capacitor type provides a capacitance of 0.22 farads and supports a voltage of 5.5 volts DC, designed for efficient power backup and smoothing circuits.

The supercapacitor is mounted vertically onto PCBs using radial leads, facilitating compact and straightforward installation. It exhibits a broad operating temperature range from -40°C to 70°C, ensuring performance stability in diverse environmental conditions. The component is polarized for correct circuit functionality and incorporates a low leakage current of 5 microamperes to minimize energy loss during operation.

Its electrical characteristics include a low equivalent series resistance (ESR) of 75 milliohms and a lead pitch of 10 mm. The device's mechanical footprint features a diameter of 9.5 mm and height of 8.6 mm, optimizing board space usage. The rated lifetime extends to 200,000 cycles, promising long-term reliability.

This supercapacitor series is ideal for applications such as uninterruptible power supplies (UPS), solar battery powered circuits, motor drives requiring rapid charging, and electronic metering equipment. The tolerance range of -20 to +80 percent caters to varied operational demands where precision is balanced with energy capacity.

This supercapacitor features a capacitance of 0.22 farads for energy storage. It operates at a voltage rating of 5.5V DC suitable for various circuits. The PCB mounting type with radial leads enables easy circuit integration.

Operating temperature range spans from -40°C to 70°C for wide usage conditions. The device possesses a leakage current of only 5 microamperes ensuring efficient performance. Durability is enhanced with a lifetime of 200,000 charge-discharge cycles.

The component’s dimensions include a diameter of 9.5 mm and height of 8.6 mm. This polarized supercapacitor has a lead pitch of 10 mm and a low equivalent series resistance of 75 mΩ. Designed as an Electric Double Layer Capacitor (EDLC) suitable for UPS and solar battery circuits.

Manufactured in China maintaining quality standards of the RS PRO series.

Widely applied in industrial, laboratory, electronic, renewable energy, and commercial sectors, this RS PRO Supercapacitor offers quality and performance for critical backup and power conditioning needs. Explore more products from RS PRO and similar categories at EnvMart.
