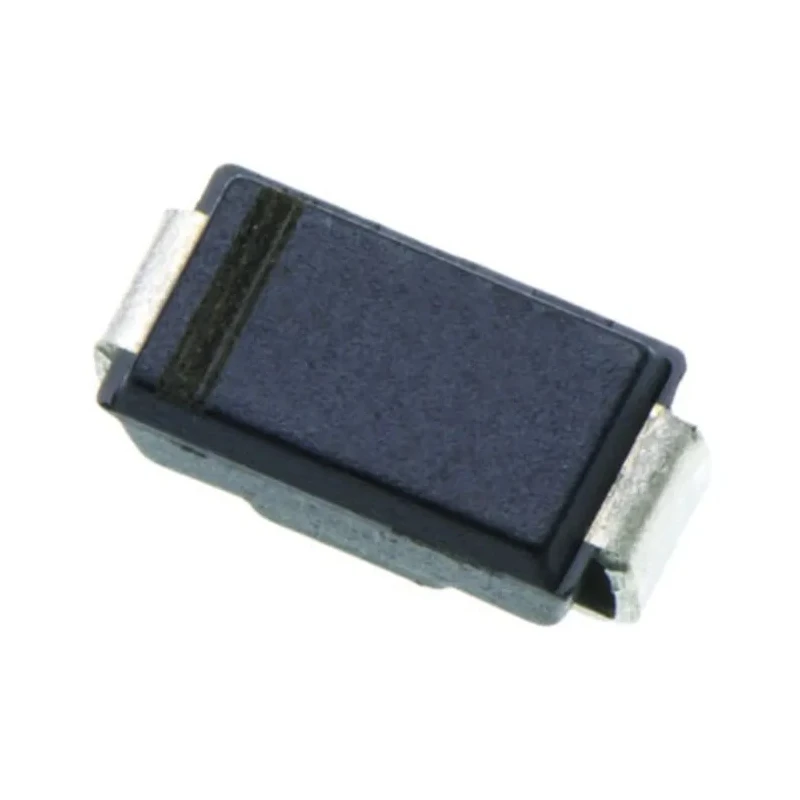

onsemi Silicon Junction Switching Diode, Single, 1 A, 2-Pin SMA Package, 50 V S1A
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.4mm |
| Length | 4.6mm |
| Model | S1A |
| Width | 2.4mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SMA |
| Sub Type | Silicon Junction |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.1V |
| Peak Reverse Recovery Time trr | 3ns |
| Maximum Forward Current If | 1A |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 50V |
Key Features
- Single diode configuration in SMA package suitable for compact circuit designs.
- Maximum forward current rating of 1 A ensures reliable operation under moderate loads.
- Surface mount mount type enables automated assembly and space-saving on PCBs.
- Peak reverse recovery time of 3 ns facilitates fast switching performance.
- Operating temperature range from -65°C to 150°C ensures durability in diverse environments.
- Maximum forward voltage of 1.1 V minimizes conduction losses during operation.
- Pin count of 2 pins meets standard diode package configurations.
- Peak non-repetitive forward surge current capability of 30 A allows tolerance to transient overloads.
Product Description
onsemi S1A Silicon Junction Switching Diode is a high-quality, single silicon junction diode designed for use in surface mount applications. Its small SMA package and 2-pin configuration make it suitable for compact PCB layouts where space saving and efficient mounting are crucial.
With a maximum forward current rating of 1 A and peak reverse voltage of 50 V, this diode is ideal for signal switching, rectification, and protection circuits in various electronics projects and industrial control systems.
The diode features a low maximum forward voltage of 1.1 V, reducing power dissipation and improving circuit efficiency. Its fast peak reverse recovery time of 3 ns supports applications requiring rapid switching speeds, such as high-frequency converters and computing equipment.
Designed to operate between -65°C and 150°C, the S1A diode maintains stable electrical characteristics under harsh environmental conditions encountered in industrial and commercial devices.
This product does not hold specific automotive certifications but offers reliable performance for general semiconductor applications requiring durable rectifier components. Single diode configuration in SMA surface mount package.
Maximum forward current of 1 A. Peak reverse voltage rating of 50 V. Fast reverse recovery time of 3 ns. Wide operating temperature range from -65°C to 150°C. Compact size: 4.6 mm length, 2.4 mm width, and 2.4 mm height.
Pin count: 2. Forward voltage max 1.1 V to minimize power loss. Peak forward surge current up to 30 A. Surface mount technology compatible for automated assembly.
This diode is suitable for industrial electronics manufacturing as well as laboratory and commercial applications requiring dependable diode switching and rectification capabilities.
Explore more semiconductor devices and Switching Diodes like the onsemi S1A at EnvMart for diverse industrial and electronics component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current rating of the S1A diode is 1 A.
The peak reverse voltage rating for the S1A diode is 50 V.
The peak reverse recovery time of this diode is 3 ns, facilitating fast switching performance.
The operating temperature range for the S1A diode is from -65°C to 150°C.
The dimensions of the S1A diode are 4.6 mm in length, 2.4 mm in width, and 2.4 mm in height.
The S1A diode has a pin count of 2 pins, which meets standard diode package configurations.
The maximum forward voltage of the S1A diode is 1.1 V, which helps minimize conduction losses during operation.
The S1A diode uses a surface mount type, making it suitable for automated assembly and compact PCB layouts.
The peak non-repetitive forward surge current capability of the S1A diode is 30 A, allowing it to tolerate transient overloads.
The S1A diode is suitable for signal switching, rectification, and protection circuits in various electronics projects and industrial control systems.
The S1A diode comes in an SMA package, which is compact and suitable for surface mount applications.
The country of origin for the S1A diode is India.
