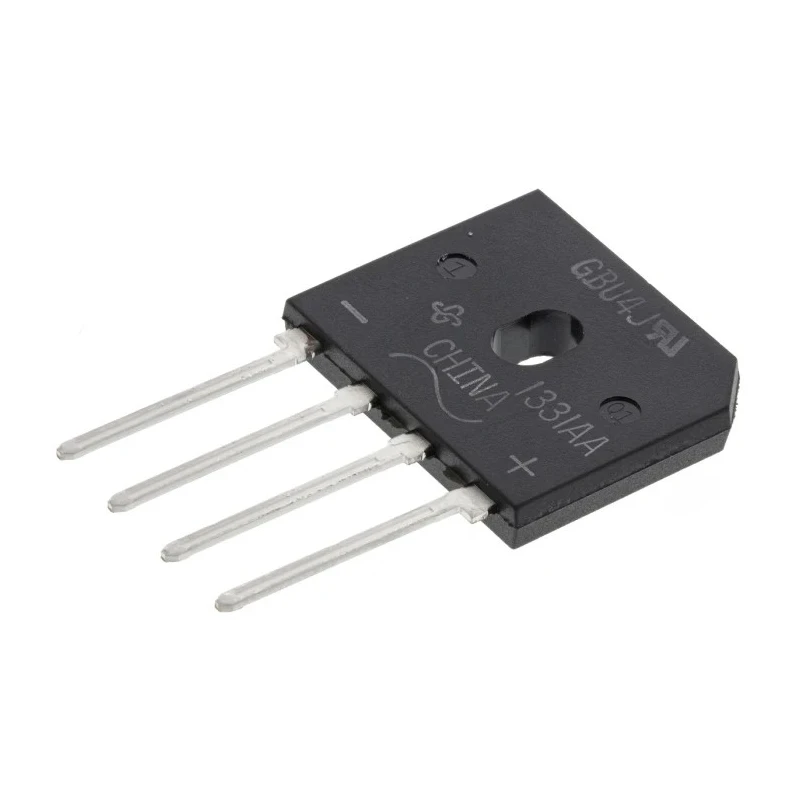

Vishay Bridge Rectifier 600 V 150 A 4-Pin Single Through Hole GBU4J-E3/45
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 18.8mm |
| Length | 22.3mm |
| Model | GBU4J-E3/45 |
| Width | 3.56mm |
| Mount Type | Through Hole |
| Series | GBU4 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBU |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 700-5434Brand: VishayManufacturers Part No.: GBU4J-E3/45 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Forward Current If | 4A |
| Peak Forward Voltage Vf | 1V |
Key Features
- High surge current capability ensures reliable performance under transient conditions.
- Glass passivated junction enhances durability and stability.
- Operating temperature range from -55°C to 150°C supports diverse applications.
- Soldering pins designed for standard PCB through-hole mounting.
- Compact SIL package measures 22.3mm length, 18.8mm height, and 3.56mm width to minimize board space.
- Peak forward voltage of 1 V reduces power loss during operation.
- Peak reverse current limited to 5 microamperes for efficiency.
- Single-phase configuration suitable for full-wave rectification.
Product Description
Vishay GBU4J-E3/45 bridge rectifier is a highly reliable electronic component designed for converting alternating current (AC) input into direct current (DC) output. It features a 600 V peak reverse repetitive voltage rating and can handle surge currents up to 150 A, making it ideal for demanding industrial applications.
This 4-pin single-phase rectifier employs a glass passivated junction technology that ensures excellent long-term stability and high surge current capacity. The rectifier operates efficiently with a peak forward voltage of 1 V and maintains low peak reverse current of 5 μA, reducing energy losses.
Mounted through-hole with soldering pins, the device fits the compact GBU SIL package with dimensions of 22.3 mm in length, 18.8 mm in height, and 3.56 mm in width, optimizing space for PCB designs. It operates over a broad temperature range from -55°C to 150°C, suitable for various environments.
While it does not carry automotive standards, this bridge rectifier is mainly suited for industrial electronics, power supplies, and semiconductor discrete component applications. It is compliant with UL file E54214, ensuring safety and quality. The GBU4 series from Vishay Semiconductor is known for its high case dielectric strength of 1500 Vrms, adding to operational reliability.
Key features include high surge capability, glass passivated junctions, and a robust thermal design. It is commonly used in power conversion, PCB mounted power supplies, electronic device manufacturing, and HVAC systems requiring reliable rectification.
High surge current capability ensures reliable performance under transient conditions. Glass passivated junction enhances durability and stability. Operating temperature range from -55°C to 150°C supports diverse applications.
Soldering pins designed for standard PCB through-hole mounting. Compact SIL package measures 22.3mm length, 18.8mm height, and 3.56mm width to minimize board space. Peak forward voltage of 1 V reduces power loss during operation.
Peak reverse current limited to 5 microamperes for efficiency. Single-phase configuration suitable for full-wave rectification. Reliable performance supported by UL file E54214. Explore more Bridge Rectifiers and Vishay electronic components at EnvMart for trusted industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage rating of this model is 600 V.
It can handle a peak non-repetitive forward surge current of up to 150 A.
The operating temperature range is from -55°C to 150°C.
This unit measures 22.3 mm in length, 18.8 mm in height, and 3.56 mm in width.
It features soldering pins designed for standard PCB through-hole mounting.
The peak forward voltage is 1 V, which helps reduce power loss during operation.
The peak reverse current is limited to 5 microamperes (5 μA).
It uses a single-phase configuration suitable for full-wave rectification.
The GBU4J-E3/45 has a pin count of 4.
It comes in a compact GBU package type.
Yes, it is compliant with UL file E54214, ensuring safety and quality.
It is commonly used in power conversion, PCB mounted power supplies, and HVAC systems requiring reliable rectification.
