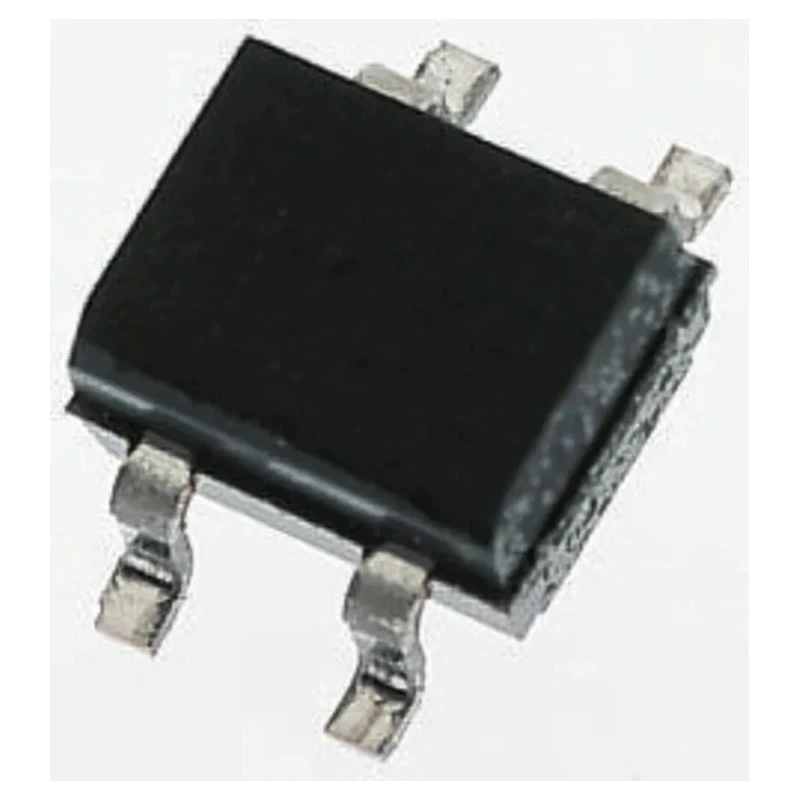

Vishay Bridge Rectifier Surface Mount, 200 V Peak Reverse Voltage, 50 A Forward Surge Current, 4-Pin Single DF02S-E3/77
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 3.3mm |
| Length | 8.51mm |
| Model | DF02S-E3/77 |
| Width | 6.5mm |
| Mount Type | Surface |
| Series | DF |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | DFS |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-2879PBrand: VishayManufacturers Part No.: DF02S-E3/77 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 1A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Supports a peak reverse repetitive voltage of 200 volts.
- Operates with a maximum forward surge current of 50 amperes.
- Compact package type DFS with dimensions height 3.3 mm, length 8.51 mm, width 6.5 mm.
- Suitable for single phase AC to DC conversion with 4-pin single diode configuration.
- Enables automated placement and PCB reflow soldering for manufacturing efficiency.
- Wide operating temperature range from -55°C to 150°C.
- Peak forward voltage of 1.1 volts ensuring efficient conduction.
- Low peak reverse current leakage of 5 microamperes.
Product Description
Vishay DF02S-E3/77 Bridge Rectifier is a high-performance surface mount discrete semiconductor component designed for converting alternating current (AC) input into direct current (DC) output through full-wave rectification. It features a 4-pin single configuration suitable for single-phase electrical circuits.
This bridge rectifier supports a peak reverse repetitive voltage (Vrrm) of 200 V and a forward current (If) of 1 A, with a peak non-repetitive forward surge current (Ifsm) of 50 A. The component is designed to withstand maximum operating temperatures up to 150°C, enabling use in harsh environmental conditions.
The DFS package provides compact dimensions - 3.3 mm height, 8.51 mm length, and 6.5 mm width - making it ideal for automated placement and printed circuit board (PCB) reflow soldering processes in electronics manufacturing. Its low peak forward voltage (Vf) of 1.1 V and minimal peak reverse leakage current (Ir) of 5 µA enhance its electrical efficiency and reliability.
Supports peak reverse repetitive voltage of 200 V. Forward current rating of 1 A with 50 A surge capability. Compact and robust DFS package for surface mount PCB use. Temperature resilience from -55°C to 150°C performance range.
Effective AC to DC conversion for single-phase circuits. Low reverse leakage ensures energy efficiency. Ideal for automated and high-volume electronic assembly.
This product is categorized under Bridge Rectifiers within Discrete Semiconductors in the Electronics & Electricals sector. Customers can explore similar Vishay products and related Bridge Rectifiers for diverse electronics design and repair needs by browsing the EnvMart catalog.
