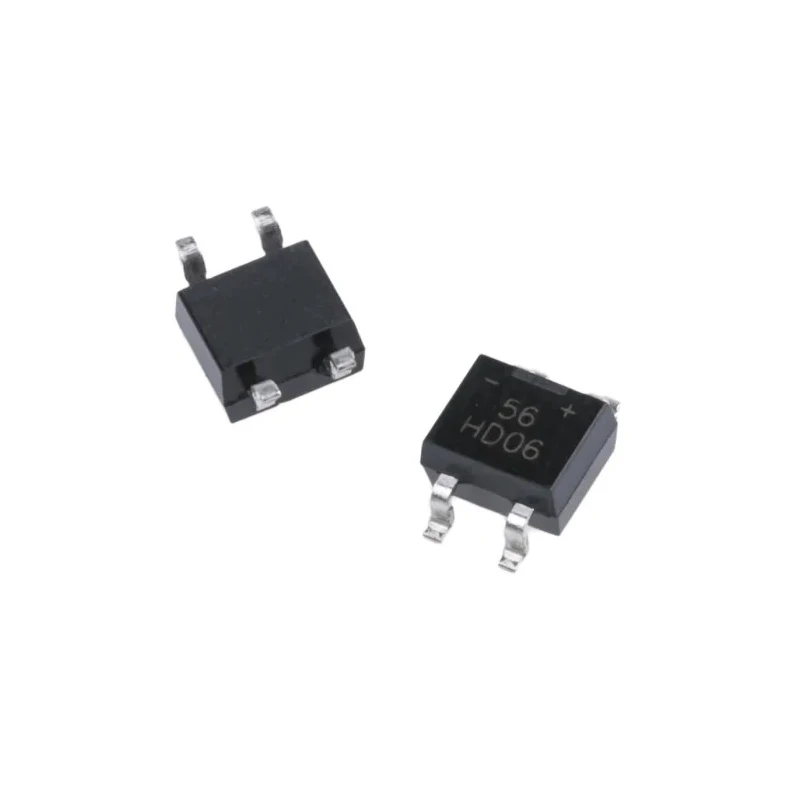

DiodesZetex Bridge Rectifier 600 V 30 A 4-Pin Surface Mount Mini-DIP HD06-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 2.7mm |
| Length | 4.9mm |
| Model | HD06-T |
| Width | 4mm |
| Mount Type | Surface |
| Series | HD-T |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | Mini-DIP |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 738-5033PBrand: DiodesZetexManufacturers Part No.: HD06-T |
| Pin Count | 4 |
| Automotive Standard | AEC-Q100 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Forward Current If | 800mA |
| Peak Forward Voltage Vf | 1V |
Key Features
- Peak reverse repetitive voltage rating of 600 volts ensures reliable operation.
- Supports continuous forward current of 800 mA with a peak surge capability of 30 A.
- Operates within a wide temperature range from -55°C to 150°C.
- Designed with 4 pins and single phase configuration for PCB mounting.
- Low forward voltage drop with a peak forward voltage of 1 V enhances efficiency.
- Meets automotive industry standard AEC-Q100, assuring quality and durability.
- Ideal for automated assembly in electronic power and connector applications.
Product Description
DiodesZetex HD06-T Bridge Rectifier is a Mini-DIP surface mount component engineered to convert alternating current (AC) to direct current (DC) with high efficiency and reliability. This bridge rectifier supports a peak reverse repetitive voltage of 600 V and a forward current of 800 mA, suitable for demanding electronic applications.
The rectifier features a compact 4-pin design with precise dimensions: 4.9 mm length, 4 mm width, and 2.7 mm height, making it ideal for space-constrained PCB assemblies. It withstands a wide operating temperature range from -55°C to 150°C, ensuring stable performance under harsh environmental conditions.
This device is rated for a peak non-repetitive forward surge current of 30 A and exhibits a low forward voltage drop of 1 V, improving overall energy efficiency. The product complies with the automotive standard AEC-Q100, highlighting its robustness for use in automotive electronics.
The HD06-T is optimized for automated manufacturing processes in industrial, electronic, and power conversion systems. It is commonly employed in power supplies, battery chargers, and general electronic devices requiring reliable AC to DC conversion.
Peak reverse repetitive voltage of 600 V. Forward current rating of 800 mA with 30 A surge capability. Wide temperature operation from -55°C to 150°C. Compact Mini-DIP surface mount package. Low forward voltage drop of 1 V enhances efficiency.
4-pin single-phase configuration for PCB mounting. Conforms to AEC-Q100 automotive qualification standard. Ideal for automated electronic assembly and power applications. Explore more high-quality Bridge Rectifiers and electronic components in the Electronics & Electricals section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HD06-T bridge rectifier has a peak reverse repetitive voltage rating of 600 V, ensuring reliable operation in various applications.
This model supports a continuous forward current rating of 800 mA, making it suitable for demanding electronic applications.
It has a peak non-repetitive forward surge current capability of 30 A, allowing it to handle brief surges effectively.
The dimensions of this bridge rectifier are 4.9 mm in length, 4 mm in width, and 2.7 mm in height, making it compact for PCB mounting.
The HD06-T operates within a wide temperature range from -55°C to 150°C, ensuring stable performance in various environments.
It features a surface mount design, specifically in a Mini-DIP package, which is ideal for automated assembly processes.
Yes, the HD06-T conforms to the AEC-Q100 automotive qualification standard, highlighting its robustness for automotive applications.
It exhibits a low forward voltage drop of 1 V, which enhances its efficiency in converting AC to DC.
This bridge rectifier is designed with 4 pins, suitable for single-phase configuration on PCBs.
The HD06-T is commonly used in power supplies, battery chargers, and general electronic devices requiring reliable AC to DC conversion.
It features a single-phase configuration, making it suitable for various electronic power applications.
The HD06-T bridge rectifier is manufactured in India, ensuring compliance with relevant standards.
