onsemi Bridge Rectifier, 400 V Peak Reverse Voltage, 300 A Peak Surge Current, 4-Pin Single GBPC1504

Free Delivery in India | Lowest Global Shipping Charges

onsemi Bridge Rectifier, 400 V Peak Reverse Voltage, 300 A Peak Surge Current, 4-Pin Single GBPC1504

Name: onsemi Bridge Rectifier, 400 V Peak Reverse Voltage, 300 A Peak Surge Current, 4-Pin Single GBPC1504
Brand: onsemi
SKU: 373723
Price: 4.37 USD
Availability: InStock



Category Bridge Rectifiers Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	11.23mm
Length	29mm
Model	GBPC1504
Width	29mm
Mount Type	Screw
Series	GBPC15
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBPC
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	400V
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	300A
Forward Current If	15A
Peak Forward Voltage Vf	1.1V

Key Features

Offers a maximum forward current of 15 A for reliable performance.
Features a peak forward voltage of 1.1 V ensuring efficient conduction.
Operates within -55°C to 150°C, suitable for demanding environments.
Incorporates a glass passivated die construction for durability.
Supplied in a GBPC package with screw mount for easy installation.
Isolated voltage from case to lead exceeds 2500 V for safety.
Designed with integrally molded heat sink for excellent thermal dissipation.
Complies with UL standard E258596 for quality assurance.

Product Description

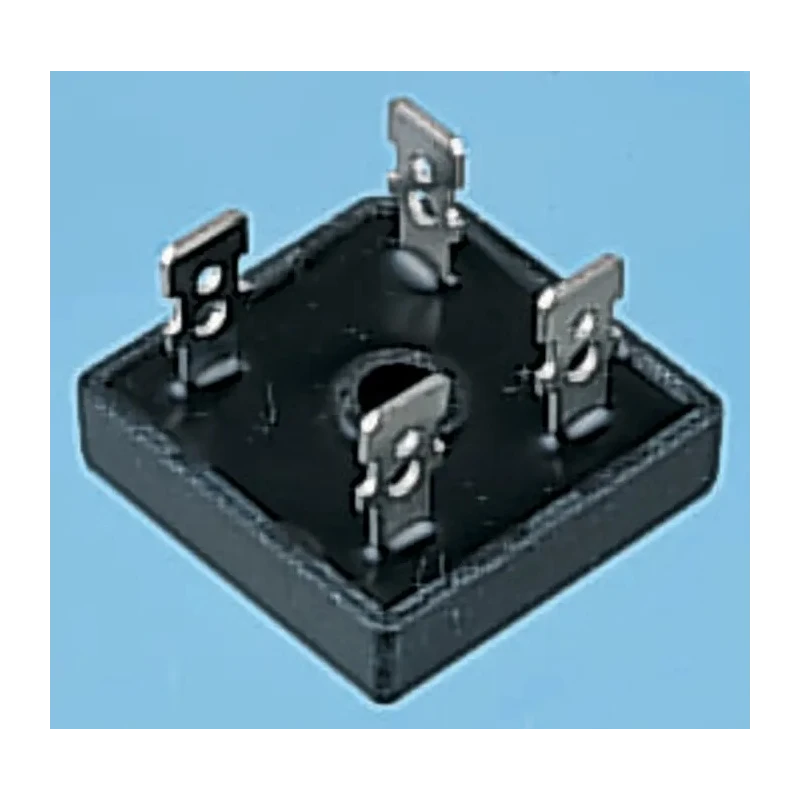

The onsemi GBPC1504 Bridge Rectifier is a high-current, single-phase rectifier designed for electrical and electronic applications requiring peak reverse voltage of 400 V and peak surge current up to 300 A. This device features a 4-pin screw mount package (GBPC) which ensures secure attachment and easy replacement in various industrial circuits.

Equipped with a maximum forward current rating of 15 A, it delivers efficient rectification with low forward voltage drop of 1.1 V, optimizing power efficiency and minimizing heat generation. Its glass passivated die construction guarantees long-term reliability and electrical stability under stressed conditions.

The bridge rectifier operates reliably across a temperature range from -55°C to 150°C, making it suitable for industrial, HVAC, manufacturing, and power supply applications demanding wide temperature tolerance. The integrally molded heat sink design reduces thermal resistance, enhancing heat dissipation and extending device life.

Additionally, the device provides an isolated voltage from case to lead above 2500 V, ensuring operational safety in high voltage environments. Though it does not carry automotive certification, its UL E258596 approval endorses manufacturing quality and electrical safety standards.

Typical applications for the onsemi GBPC1504 include use in power rectification in industrial machines, laboratory equipment, and power supply circuits where high reliability and robust performance are critical.

Offers a maximum forward current of 15 A for reliable performance. Features a peak forward voltage of 1.1 V ensuring efficient conduction. Operates within -55°C to 150°C, suitable for demanding environments. Incorporates a glass passivated die construction for durability.

Supplied in a GBPC package with screw mount for easy installation. Isolated voltage from case to lead exceeds 2500 V for safety. Designed with integrally molded heat sink for excellent thermal dissipation. Complies with UL standard E258596 for quality assurance.

Explore more specialized Bridge Rectifiers and semiconductor components in the Electronics & Electricals section at EnvMart for precise technical needs.
