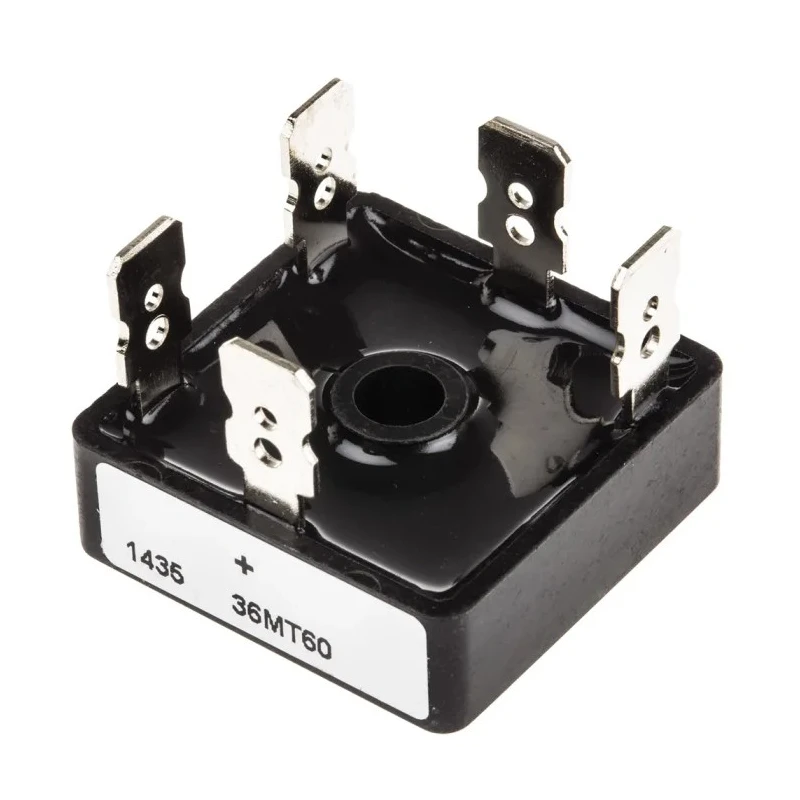

Vishay Bridge Rectifier 600 V 500 A 5-Pin Single VS-36MT60

Vishay VS-36MT60 Bridge Rectifier is a high-performance semiconductor designed for converting AC input to DC output with a three-phase full-wave rectification configuration. Rated for 600 V peak reverse repetitive voltage and 500 A peak surge current, this device delivers reliable and efficient power rectification in compact encapsulation.

Its D-63 package offers a robust 28.5 mm length and width, with a height of 10 mm, optimized for thermal performance and space-saving installation. The rectifier supports a wide operating temperature range from -55°C to 150°C, making it suitable for industrial, laboratory instrumentation, manufacturing equipment, HVAC, and power supply systems.

The device features universal triple-terminal mounting options including push-on, wrap-around, and solder pins, with nickel-plated solderable terminals for durability. The electrically insulated case enables safe integration into complex circuits while maintaining excellent heat dissipation. Designed and qualified to industrial standards with UL E300359 approval, this rectifier ensures consistent and high-quality operation.

Used extensively in electronics, power conversion, and instrumentation applications, the Vishay VS-36MT60 is a trusted component for precise and robust current rectification needs. Its country of origin is India, reflecting localized quality manufacturing processes.

Runs at a peak reverse repetitive voltage of 600 V ensuring robust performance. Capable of carrying a forward current of 35 A with peak non-repetitive surge current up to 500 A. Features a compact D-63 package measuring 28.5 mm by 28.5 mm by 10 mm high.

Operates effectively between -55°C and 150°C for wide temperature tolerance. Designed with 5 pins in a through-hole mount for versatile installation. Utilizes universal 3 way terminals supporting push-on, wrap-around, or solder mounting.

Nickel plated terminals and electrically insulated high thermal conductivity package optimize durability. Ideal for industrial, laboratory, electronics manufacturing, and power conversion applications. Fully new product made in India, ensuring compliance with industrial quality standards.
