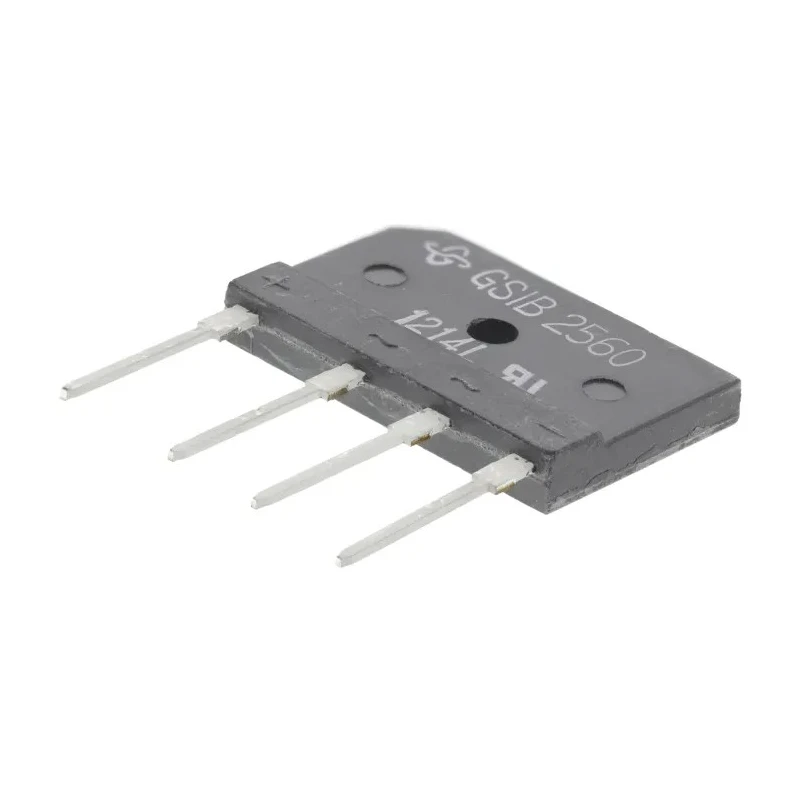

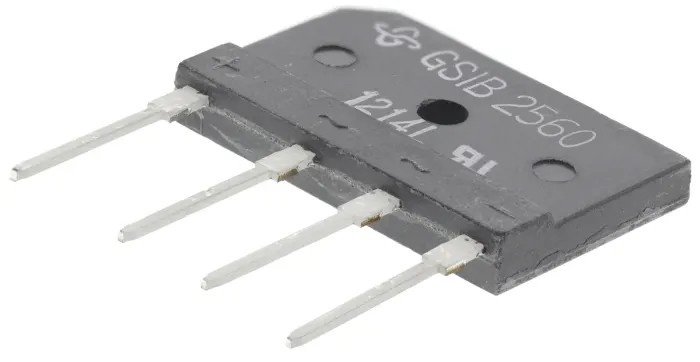

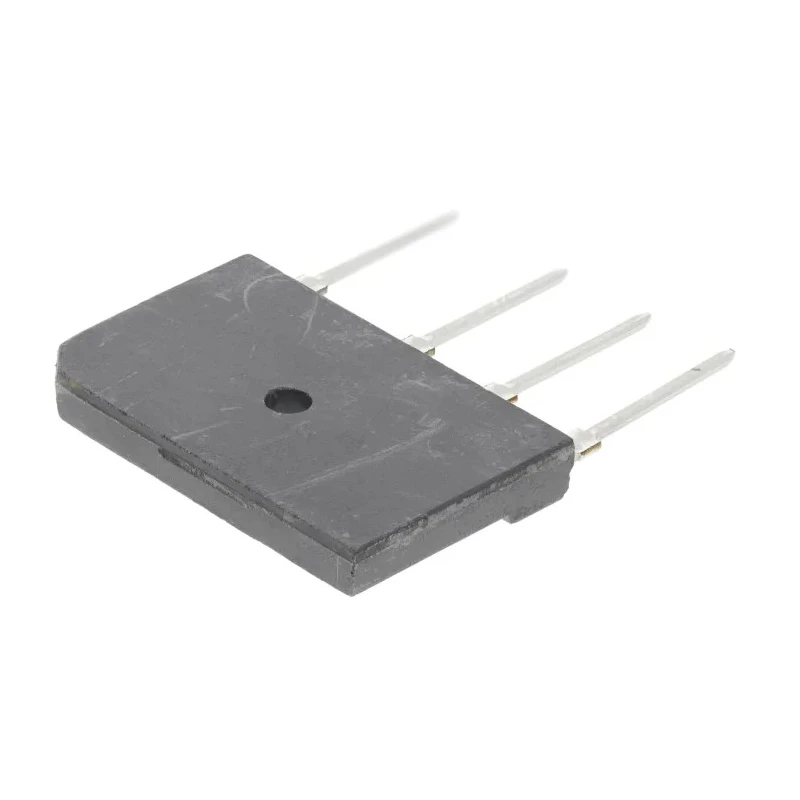

Vishay Bridge Rectifier 600 V 350 A 4-Pin Single GSIB2560-E3/45

Vishay GSIB2560-E3/45 bridge rectifier is a robust electronic component providing a peak reverse repetitive voltage of 600 V and peak non-repetitive forward surge current of 350 A. Its 4-pin single configuration in the GSIB-5S thin single in-line package allows for reliable through-hole PCB mounting, widely used in industrial, electronic, and power management applications.

Designed by Vishay Semiconductor, this device offers a glass passivated chip junction and a high dielectric strength case rated at 2500 Vrms, ensuring high durability and performance under surge conditions. Operating safely within temperatures from -55°C to 150°C, it supports a forward current of 3.5 A and a peak forward voltage of 1 V, which enables efficient power conversion.

The compact dimensions - 30 mm length, 20 mm height, and 4.6 mm width - allow for space-saving PCB designs without compromising electrical capabilities. It converts alternating current (AC) to direct current (DC) for full-wave rectification applications, which is vital in various electrical engineering and manufacturing uses.

Its low peak reverse current of 10 μA ensures minimal leakage current, which contributes to the device's efficiency and longevity. The simple single-phase, single-configuration bridge rectifier design is ideal for converting AC input to a stable DC output in power supplies and other electronic systems.

The GSIB2560-E3/45 bridge rectifier is specifically designed for high surge currents and robust industrial use. The package type GSIB-5S offers ease of PCB installation with soldering pins for through-hole mounting. Its durability in a wide temperature range makes it suitable for harsh environments found in industrial and manufacturing sectors.

It offers a glass passivated chip junction ensuring reliability and long service life. The high dielectric strength case withstands substantial electrical stress, ideal for power electronics.

This bridge rectifier is manufactured in China and is an essential component in discrete semiconductor applications, particularly in electronics and power supply industries. Its performance characteristics make it suitable for industrial, commercial, and laboratory electronic equipment.
