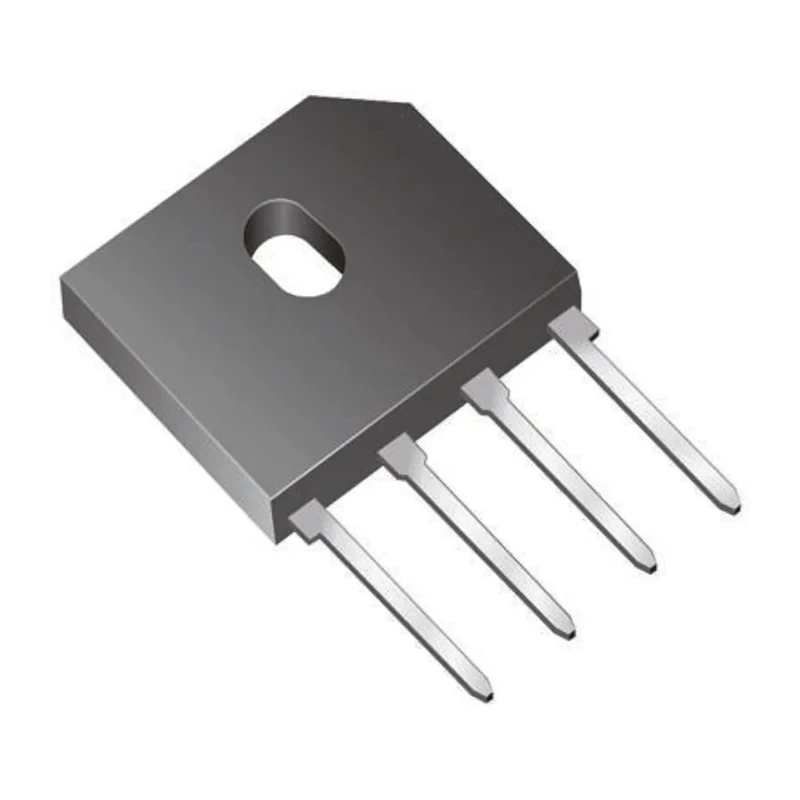

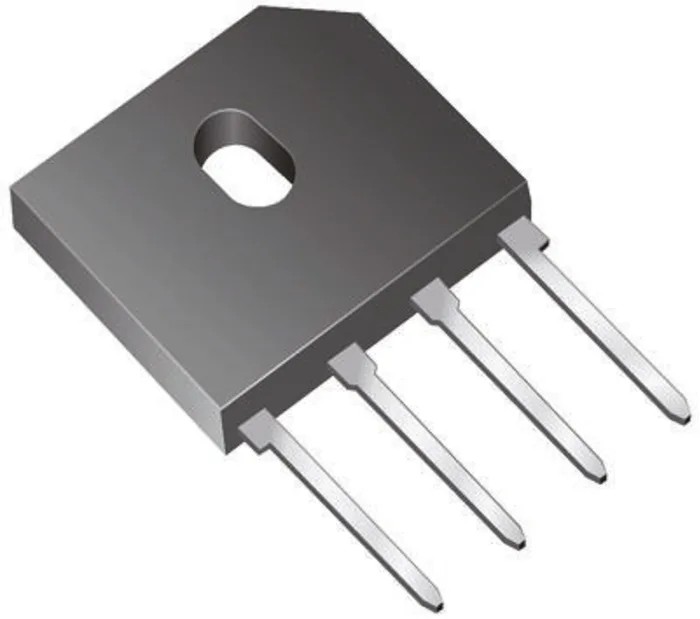

Vishay Bridge Rectifier, 1000 V Peak Reverse Voltage, 200 A Surge Current, 4-Pin Single Phase, Through Hole GBU8M-E3/45
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 18.8mm |
| Length | 22.3mm |
| Model | GBU8M-E3/45 |
| Width | 3.56mm |
| Mount Type | Through Hole |
| Series | GBU8 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBU |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 700-5462P Brand: [Vishay](https://in.rsdelivers.com/brands/vishay)Manufacturers Part No.: GBU8M-E3/45 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Forward Current If | 8A |
| Peak Forward Voltage Vf | 1V |
Key Features
- Peak Reverse Repetitive Voltage (VRRM) rated at 1000 V.
- Capable of withstanding a peak non-repetitive forward surge current of 200 A.
- Forward current rating of 8 A ensures durability in demanding circuits.
- Operating temperature range from -55°C to 150°C for versatile thermal performance.
- Packaged in a GBU through-hole SIL PCB mounting type for ease of installation.
- Compact dimensions measuring 22.3 mm length, 18.8 mm height, and 3.56 mm width.
- Glass passivated junction technology provides high surge current capability and high case dielectric strength of 1500 Vrms.
- No automotive standard compliance; suitable for industrial and commercial applications.
Product Description
Vishay GBU8M-E3/45 bridge rectifier is a high-performance single-phase diode bridge rectifier designed for converting alternating current (AC) into direct current (DC) in full-wave rectification setups. This model features a peak reverse repetitive voltage of 1000 V and can handle a forward current of up to 8 A, making it well suited for various industrial, commercial, and electronic applications.
Manufactured with glass passivated junctions, this bridge rectifier offers enhanced robustness against surges, demonstrated by its peak non-repetitive forward surge current rating of 200 A. It operates efficiently across a wide temperature range from -55°C to 150°C, ensuring stable performance under harsh operating environments.
The rectifier is packaged in a compact GBU through-hole SIL PCB mounting style with dimensions of 22.3 mm in length, 18.8 mm in height, and 3.56 mm in width, allowing for straightforward integration into PCB designs. Its soldering pins facilitate reliable mounting and connectivity on printed circuit boards.
This device does not carry automotive standard certifications but is tailored for power conversion duties in industrial control systems, power supplies, battery chargers, and other applications requiring full-wave rectification with high surge current tolerance.
Peak Reverse Repetitive Voltage (VRRM): 1000 V. Maximum Forward Current (IF): 8 A. Peak Non-Repetitive Forward Surge Current (IFSM): 200 A. Operating Temperature Range: -55°C to 150°C. Package Type: GBU Through Hole SIL PCB Mounting.
Compact form factor with precise dimensions for PCB integration. High case dielectric strength rated at 1500 Vrms. Glass passivated junction improves durability and thermal stability.
This bridge rectifier is ideal for use in electronics manufacturing, power supply design, industrial automation, and laboratory equipment, where reliable rectification and thermal endurance are essential. Vishay's proven quality and robust construction make the GBU8M-E3/45 a trusted component in demanding electrical and electronic applications.
Explore more products in the Bridge Rectifiers category on EnvMart to find components tailored to your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current rating for the GBU8M-E3/45 is 8 A.
This model can withstand a peak non-repetitive forward surge current of 200 A.
The dimensions of this bridge rectifier are 22.3 mm in length, 18.8 mm in height, and 3.56 mm in width.
The operating temperature range for the GBU8M-E3/45 is from -55°C to 150°C.
This bridge rectifier is packaged in a GBU through-hole SIL PCB mounting style.
The GBU8M-E3/45 has a pin count of 4.
The rectifier features glass passivated junction technology, which enhances its surge current capability and dielectric strength.
The case dielectric strength of the GBU8M-E3/45 is rated at 1500 Vrms.
No, the GBU8M-E3/45 does not carry any automotive standard certifications.
The peak forward voltage drop (Vf) for this model is rated at 1 V.
