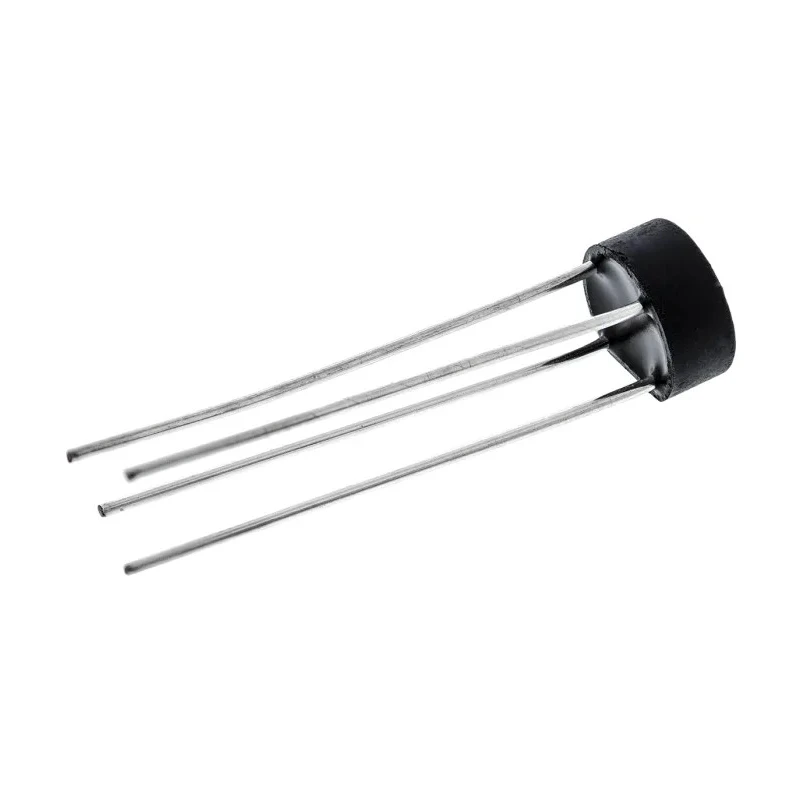

Vishay Bridge Rectifier, 125 V, 50 A Forward Surge Current, 4-Pin Single Configuration B80C1500G-E4/51
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.86mm |
| Brand | Vishay |
| Height | 5.6mm |
| Length | 9.86mm |
| Model | B80C1500G-E4/51 |
| Width | 8.84mm |
| Mount Type | Through Hole |
| Series | B80C |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | WOG |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 700-5399PBrand: VishayManufacturers Part No.: B80C1500G-E4/51 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 125V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 1.6A |
| Peak Forward Voltage Vf | 1V |
Key Features
- Designed with through hole mount type for PCB integration.
- Package type is WOG ensuring reliable construction.
- Operates within temperature range -40°C to 125°C maximum.
- Features a low forward voltage drop of 1 V for efficient conduction.
- Has a peak reverse current of 10μA minimizing leakage.
- Physical dimensions include 9.86 mm length, 8.84 mm width, and 5.6 mm height.
- Series B80CA provides robust electrical characteristics for industrial applications.
- Suitable for full-wave rectification converting AC to DC power efficiently.
Product Description
Vishay B80C1500G-E4/51 bridge rectifier is a high-performance discrete semiconductor designed for power conversion applications. This single-phase device provides a peak reverse repetitive voltage of 125 V and supports a forward surge current of 50 A, making it reliable for demanding rectification tasks.
Featuring a through hole mount type with a WOG package, the rectifier enables easy and secure PCB mounting. Its compact physical size with a length of 9.86 mm, width of 8.84 mm, and height of 5.6 mm allows integration into various electronic assemblies.
Operational temperature range from -40°C to a maximum of 125°C ensures stable performance under harsh environmental conditions. The diode configuration yields a low forward voltage drop of only 1 V, which improves energy efficiency by reducing conduction losses.
This bridge rectifier is ideally suited for industrial power supplies, motor control, and power management systems where AC to DC conversion is critical. It offers excellent surge current endurance, supporting transient high current loads.
Key features include low leakage current with a peak reverse current of 10μA and a single-phase, 4-pin configuration for straightforward circuit design. The B80CA series by Vishay represents quality and reliability in discrete semiconductors.
Designed with through hole mount type for PCB integration. Package type is WOG ensuring reliable construction. Operates within temperature range -40°C to 125°C maximum. Features a low forward voltage drop of 1 V for efficient conduction.
Has a peak reverse current of 10μA minimizing leakage. Physical dimensions include 9.86 mm length, 8.84 mm width, and 5.6 mm height. Series B80CA provides robust electrical characteristics for industrial applications. Suitable for full-wave rectification converting AC to DC power efficiently.
This product fits applications in electronic manufacturing, power supply design, industrial automation, and laboratory equipment requiring dependable bridge rectification solutions. Please browse the Electronics & Electricals category for related semiconductors and power devices at EnvMart.
Explore more products in our Bridge Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this model is 125 V, making it suitable for various power conversion applications.
This unit can operate at a maximum temperature of 125°C, ensuring stable performance in demanding environments.
It supports a forward surge current of 50 A, providing reliability for high current applications.
The dimensions are 9.86 mm in length, 8.84 mm in width, and 5.6 mm in height, allowing for compact integration into electronic assemblies.
It features a low forward voltage drop of 1 V, which enhances energy efficiency during conduction.
This model uses a through hole mount type for secure PCB integration.
The peak reverse current is 10μA, which minimizes leakage current in the circuit.
It is part of the B80CA series, known for its robust electrical characteristics in industrial applications.
The configuration is single-phase with a 4-pin design, facilitating straightforward circuit design.
The minimum operating temperature is -40°C, allowing it to function in extreme conditions.
This model is suitable for applications in power supplies, motor control, and power management systems requiring efficient AC to DC conversion.
It comes in a WOG package type, ensuring reliable construction for various applications.
