Vishay Surface Mount Bridge Rectifier 200 V 50 A 4-Pin Single DFS Package EDF1DS-E3/77

Free Delivery in India | Lowest Global Shipping Charges

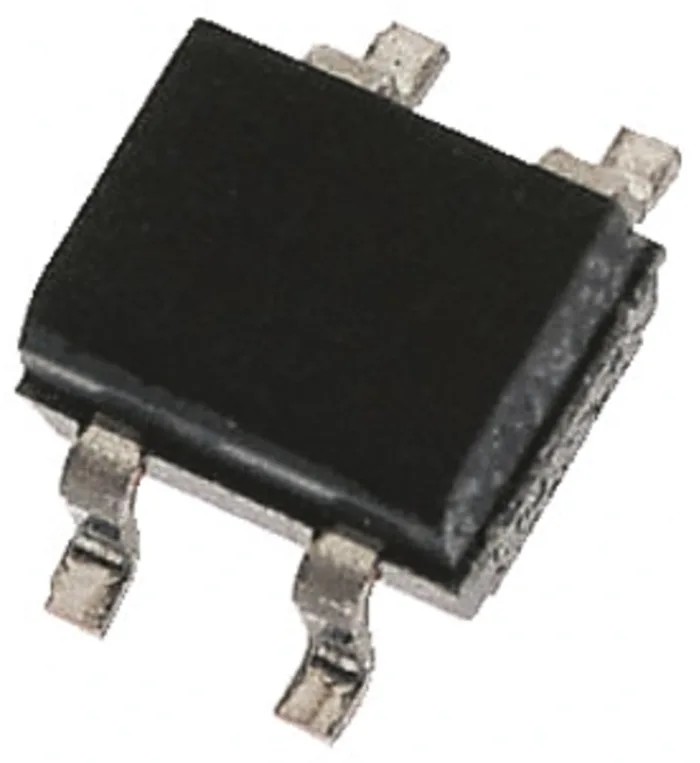

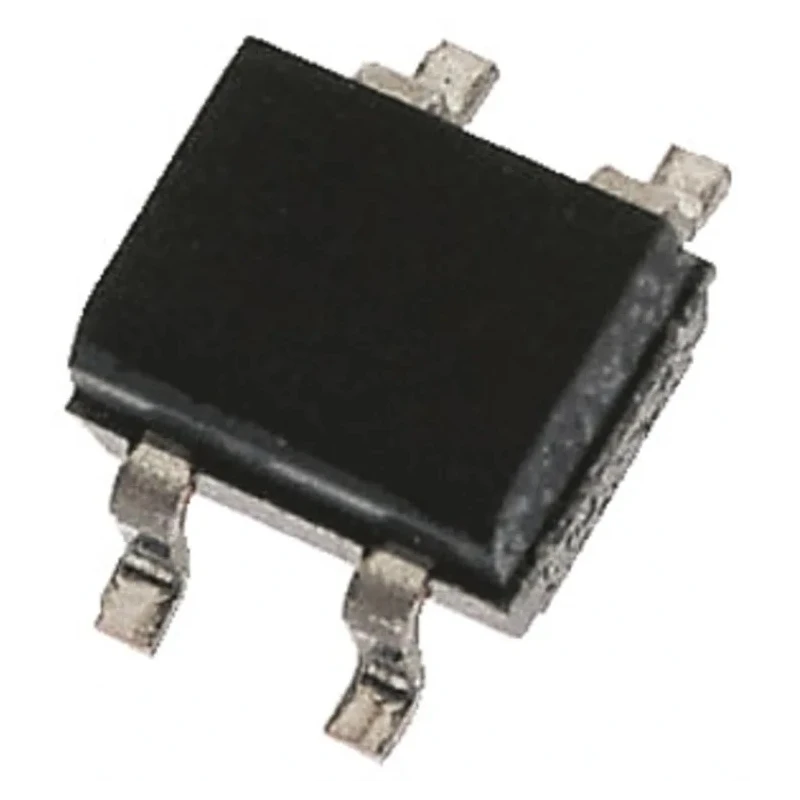

Vishay Surface Mount Bridge Rectifier 200 V 50 A 4-Pin Single DFS Package EDF1DS-E3/77

Name: Vishay Surface Mount Bridge Rectifier 200 V 50 A 4-Pin Single DFS Package EDF1DS-E3/77
Brand: Vishay
SKU: 375621
Price: 20.22 USD
Availability: InStock



Category Bridge Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	3.3mm
Length	8.51mm
Model	EDF1DS-E3/77
Width	6.5mm
Mount Type	Surface
Series	EDF
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	DFS
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	200V
Peak Reverse Current Ir	1mA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Forward Current If	1A
Peak Forward Voltage Vf	1.05V

Key Features

Designed for miniature glass passivated ultrafast surface mount applications.
Ultrafast reverse recovery time suitable for high frequency circuits.
High surge current capability ensuring dependable performance.
Ideal for automated placement and PCB reflow soldering processes.
Compact DFS package with dimensions 8.51mm length, 6.5mm width, and 3.3mm height.
Operates within a temperature range of -55°C to 150°C.
Features a peak forward voltage of 1.05 V and peak reverse current of 1 mA.
Includes a forward current rating of 1 A and peak non-repetitive forward surge current of 50 A.

Product Description

Vishay EDF1DS-E3/77 bridge rectifier is a surface mount device designed for converting alternating current (AC) input into direct current (DC) output for full-wave rectification applications in electronics and electrical industries.

This 4-pin single configuration device supports a peak repetitive reverse voltage of 200 V and a forward current rating of 1 A, ideal for miniature ultrafast power rectification.

The rectifier features a very fast reverse recovery time, facilitating efficient operation in high-frequency circuits and applications requiring high surge current capability up to 50 A.

Encased in a compact DFS package with dimensions of 8.51 mm length, 6.5 mm width, and 3.3 mm height, it supports automated PCB reflow soldering and placement for manufacturing efficiency.

Operating safely across an extended temperature range from -55°C to 150°C, it suits diverse industrial and commercial electronic applications. Miniature glass passivated ultrafast surface mount bridge rectifier. High surge current capability for reliable performance.

Designed for automated placement in printed circuit board assembly. Compact design minimizing PCB footprint while maximizing thermal performance. Wide operating temperature range suitable for industrial environments. Low forward voltage ensuring efficient power conversion.

Peak repetitive reverse voltage of 200 V for robust operation. Four-pin single configuration supporting standard PCB layouts. This bridge rectifier is widely used in electronic, industrial, and power supply applications requiring fast switching and compact surface mount solutions.

Explore more high-quality semiconductor devices in the Bridge Rectifiers category at EnvMart for your industrial and manufacturing needs.
